Passenger CCS Control Module (With CCS)

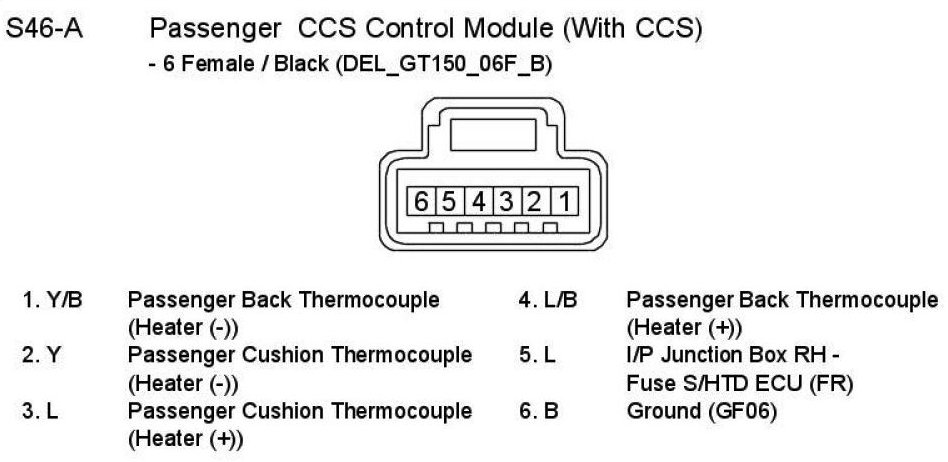

S46-A Passenger CCS Control Module (With CCS):

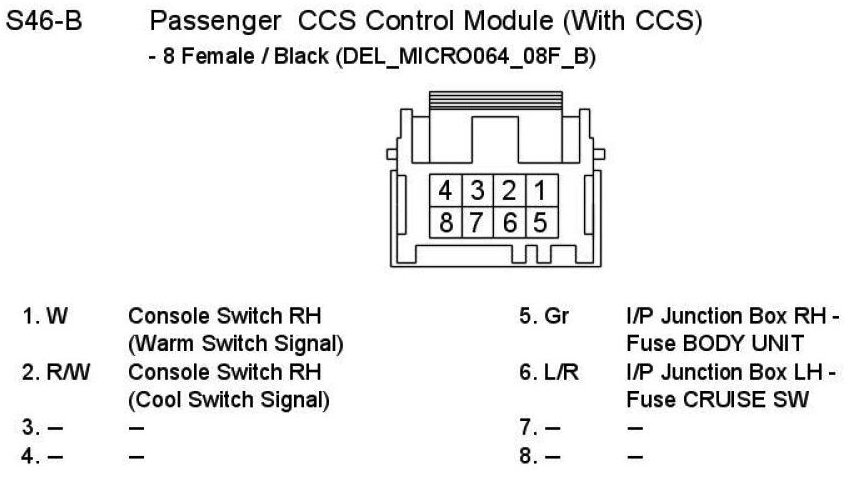

S46-B Passenger CCS Control Module (With CCS):






S46-C Passenger CCS Control Module (With CCS):
