Rear CCS Control Module LH (With CCS)

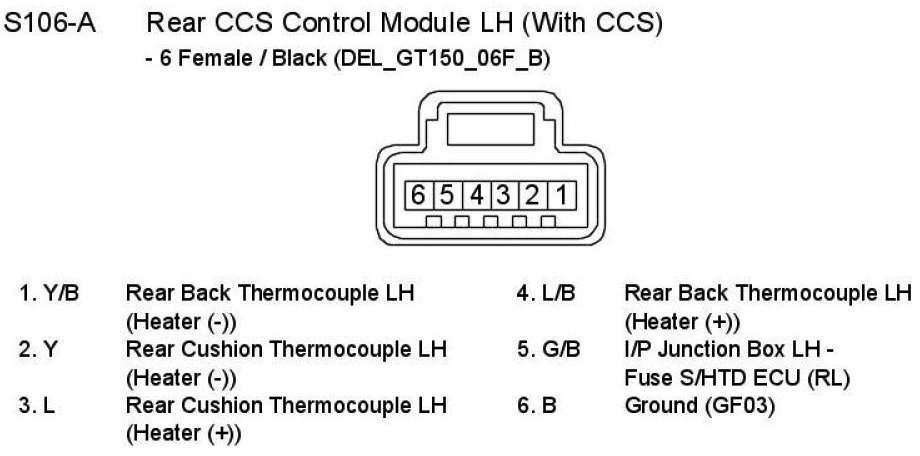

S106-A Rear CCS Control Module LH (With CCS):

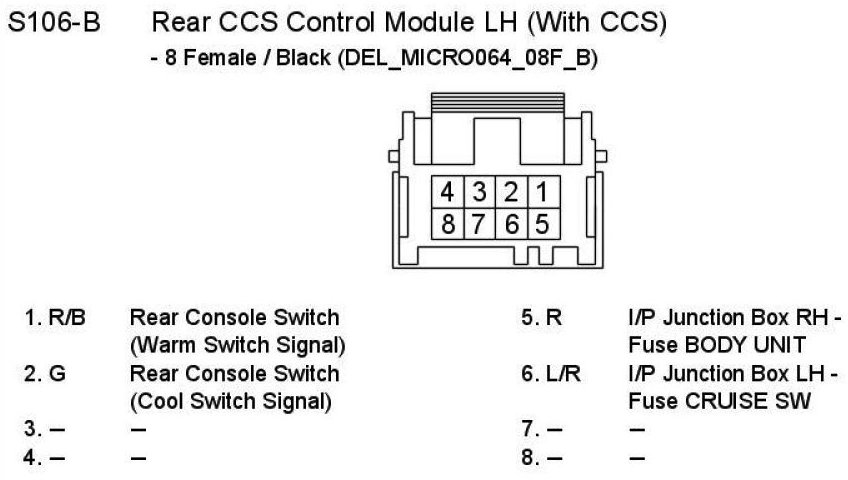

S106-B Rear CCS Control Module LH (With CCS):

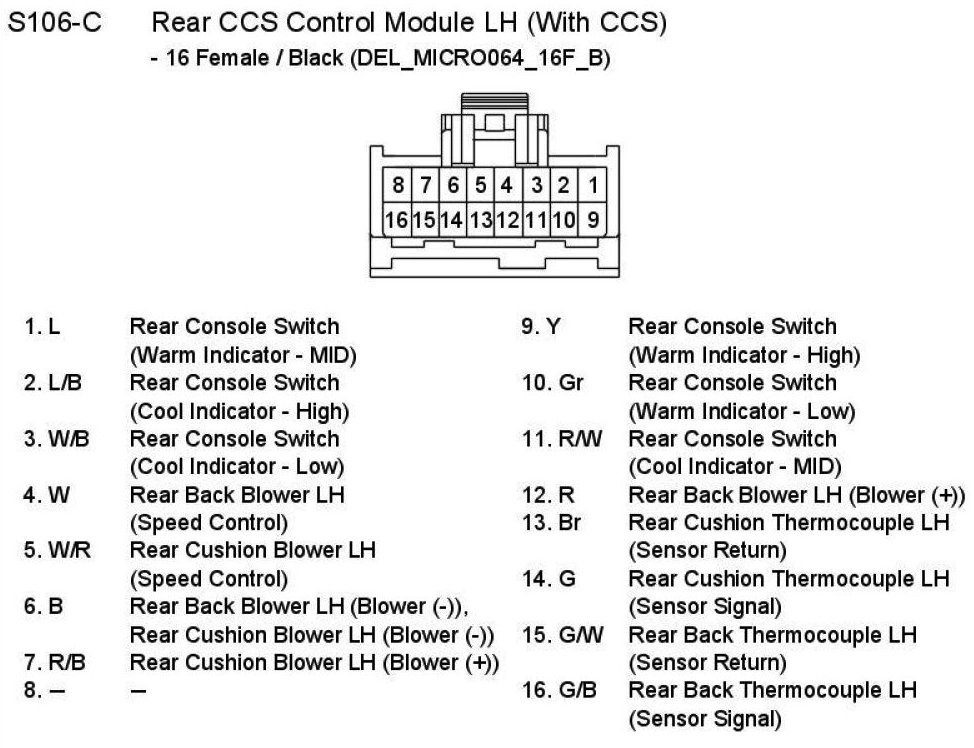

S106-C Rear CCS Control Module LH (With CCS):
