Electrical Diagrams

SD200-1 Data Link Details (1):

SD200-2 Data Link Details (2):

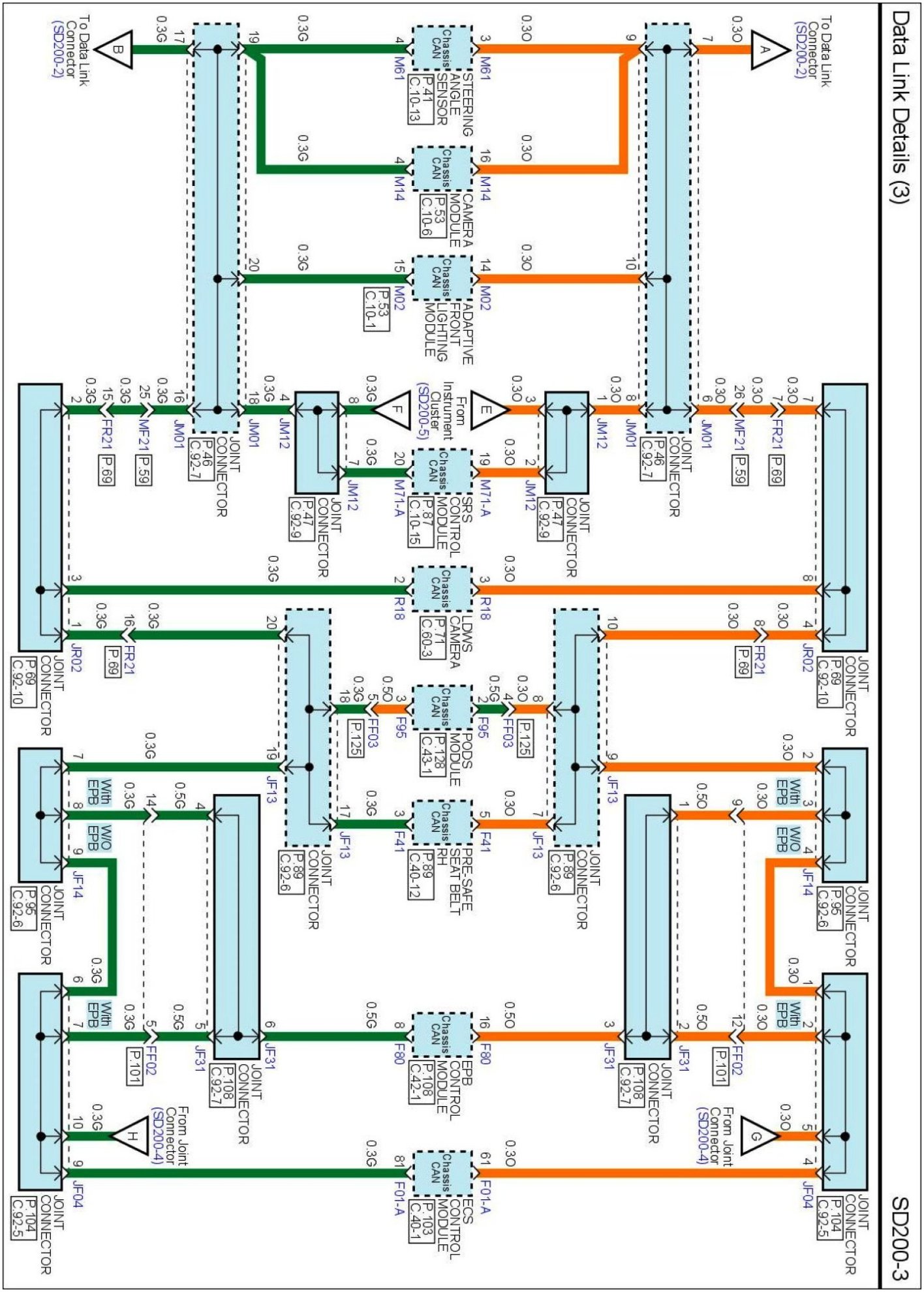

SD200-3 Data Link Details (3):

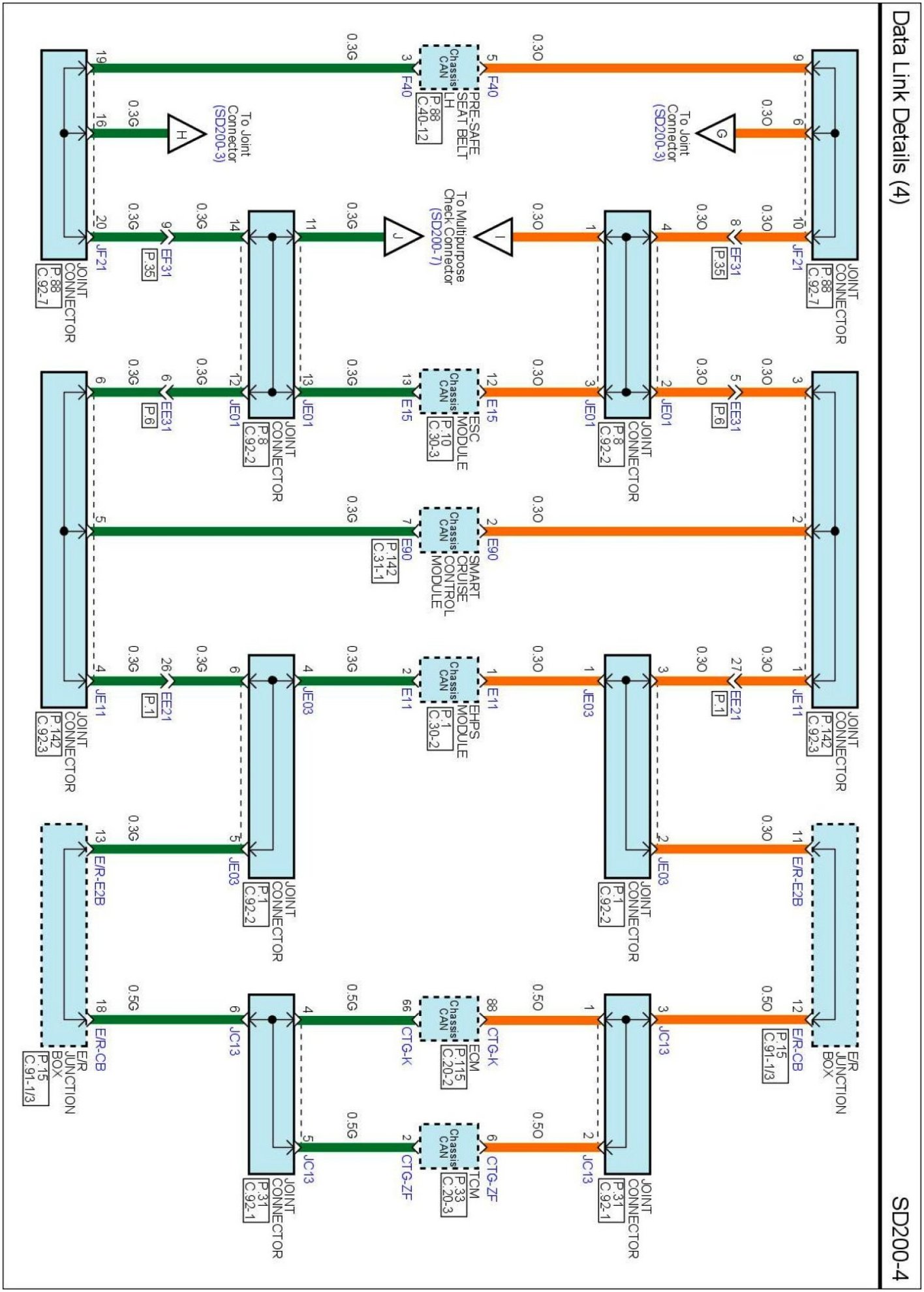

SD200-4 Data Link Details (4):

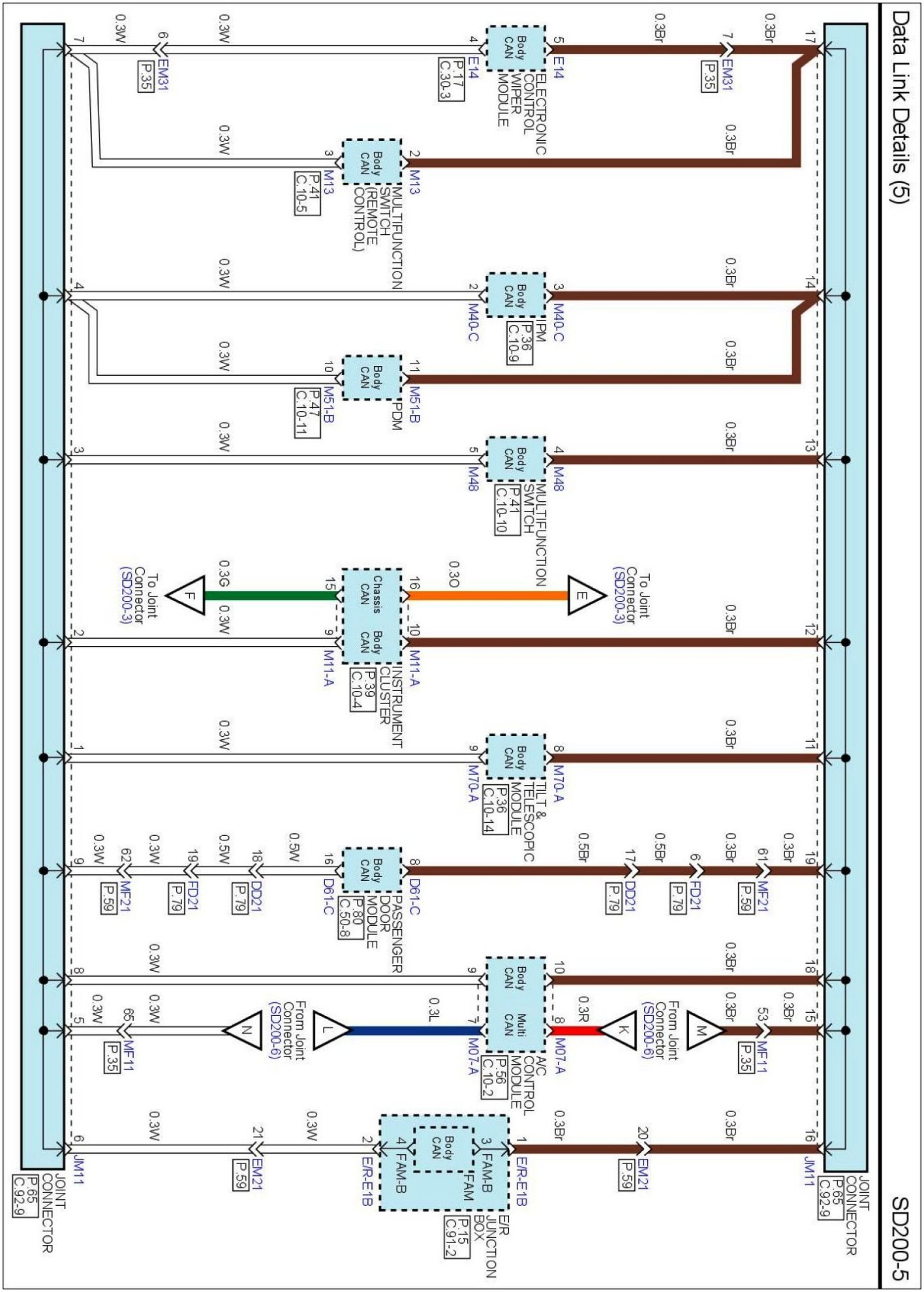

SD200-5 Data Link Details (5):

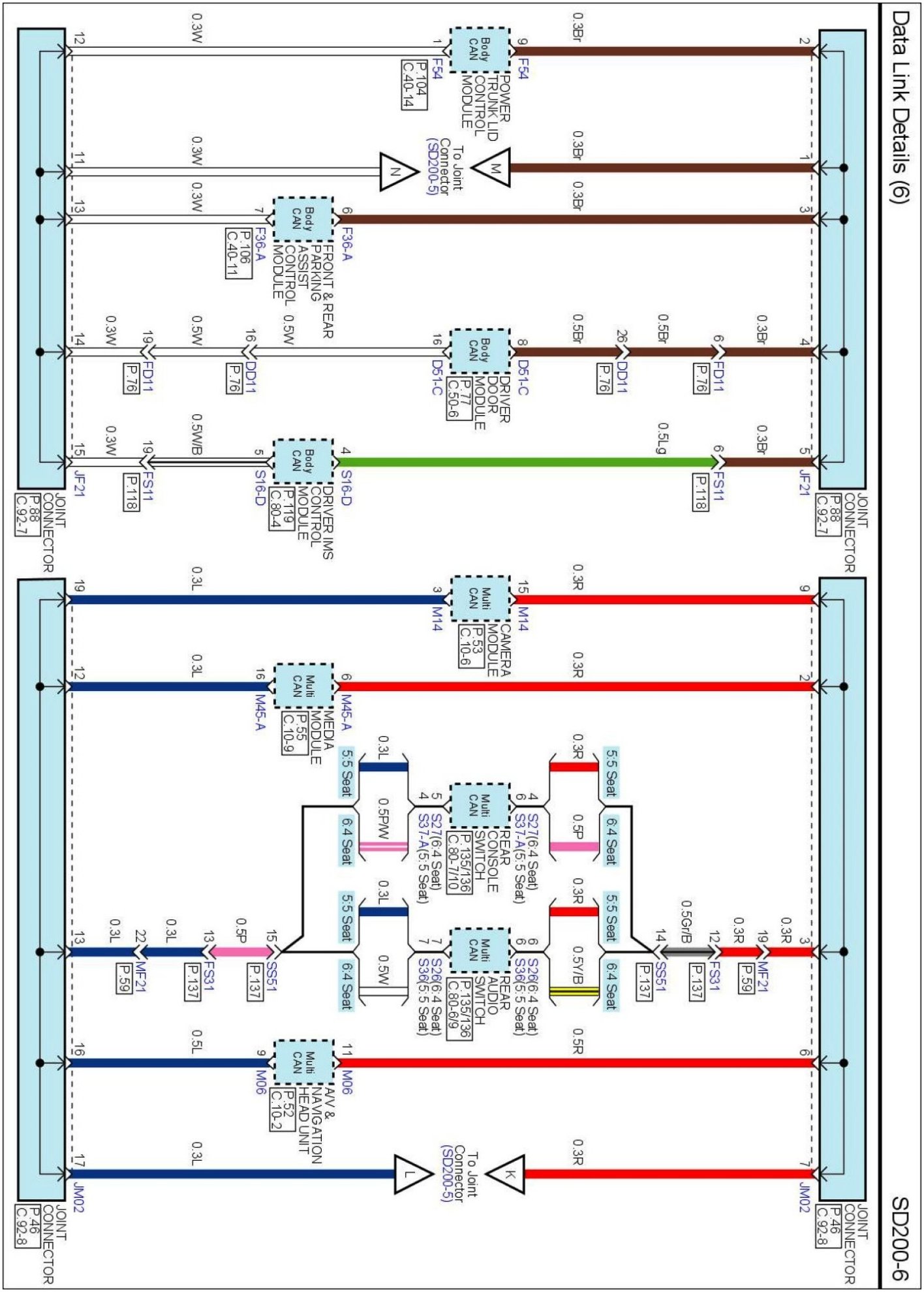

SD200-6 Data Link Details (6):

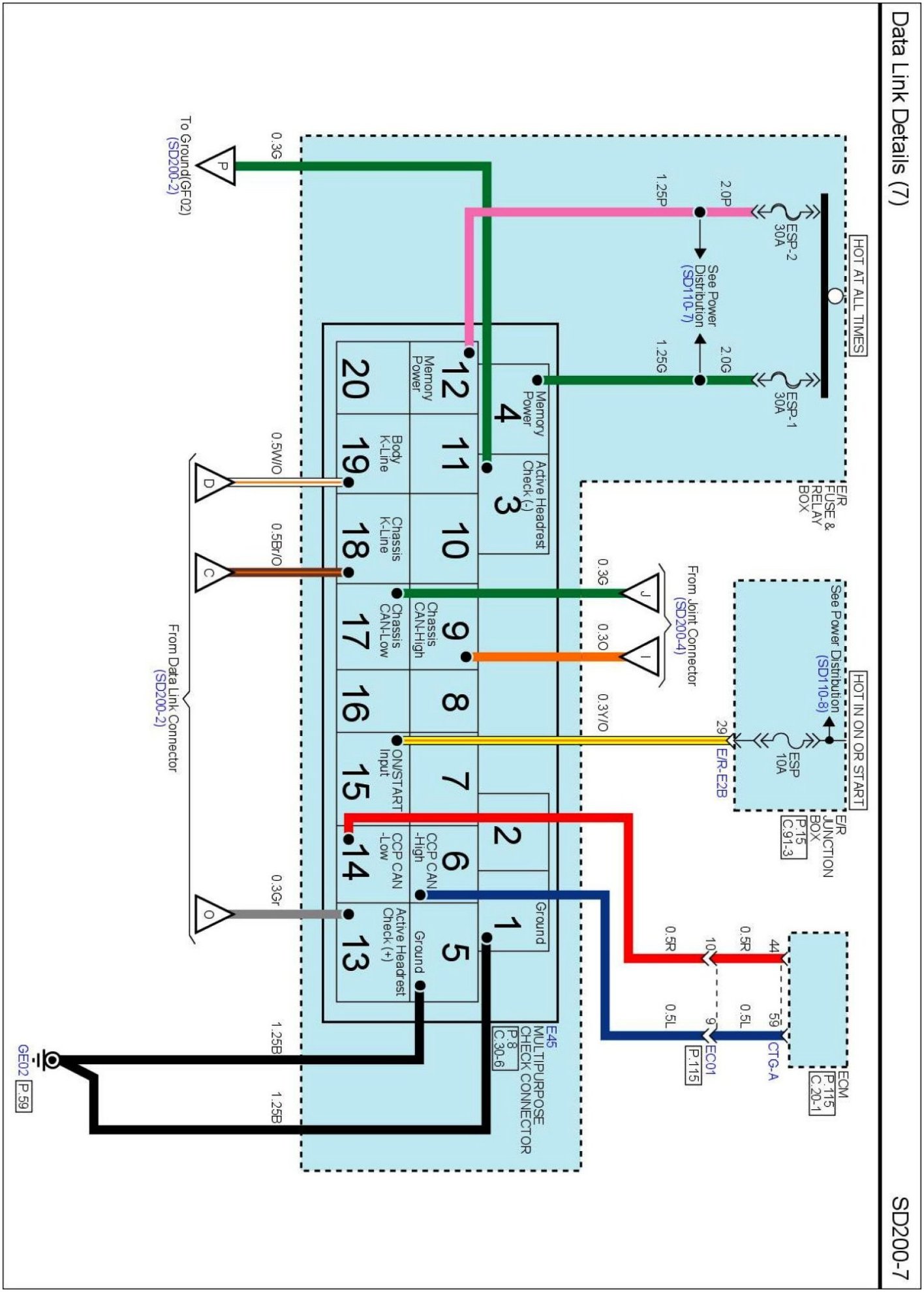

SD200-7 Data Link Details (7):
