Main Relay (Computer/Fuel System): Locations

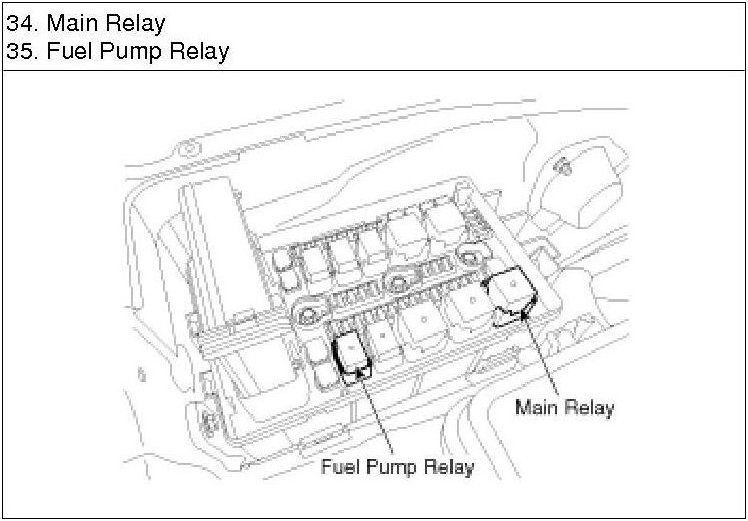

Components Location















E/R Junction Box

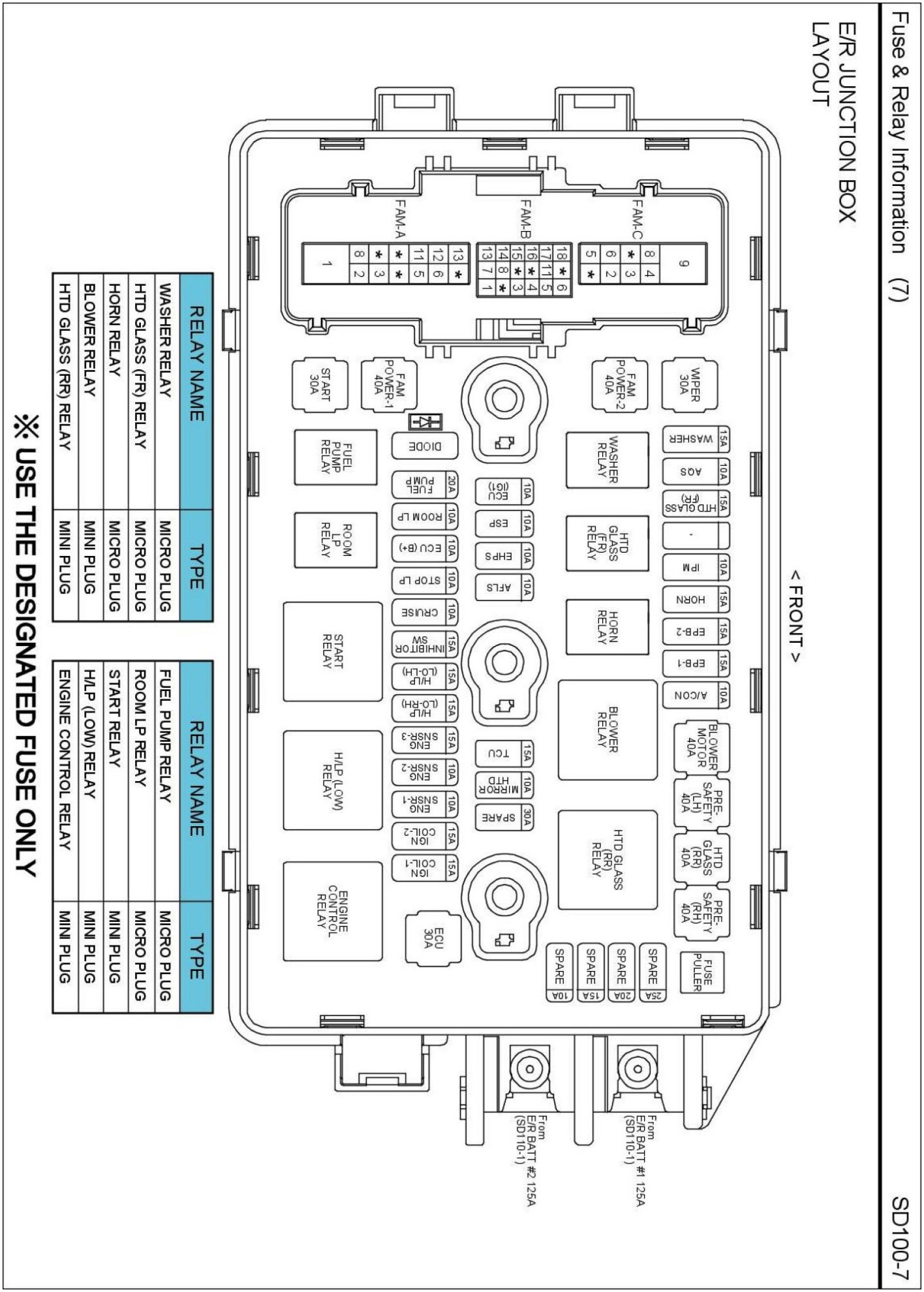

E/R Junction Box View:

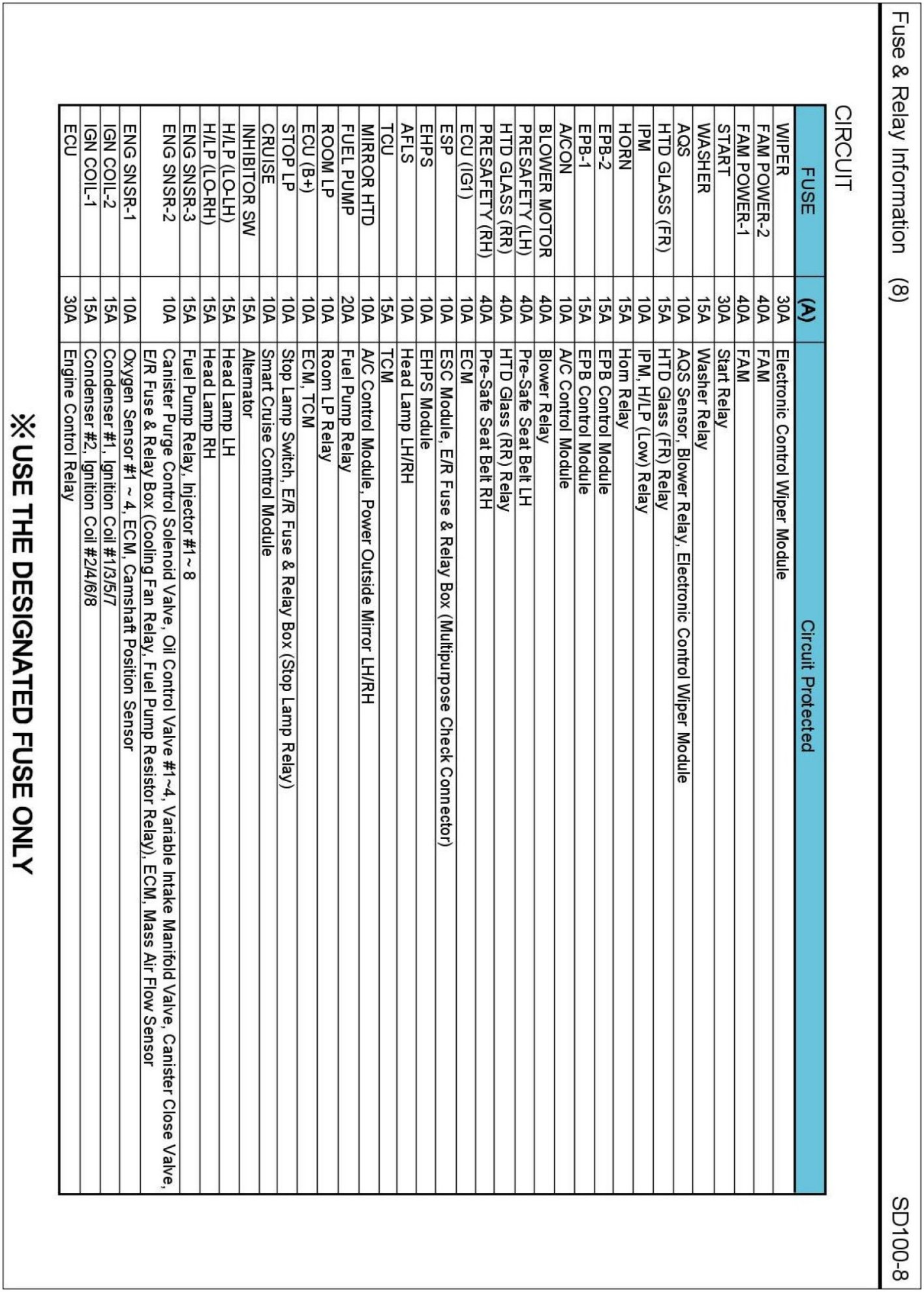

E/R Junction Box Circuit Details:
