Intake Manifold

Intake Manifold

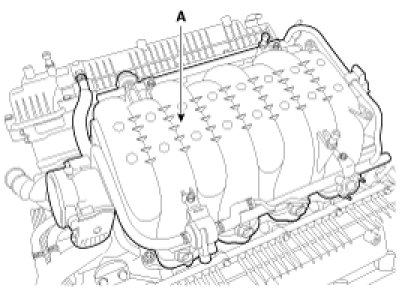

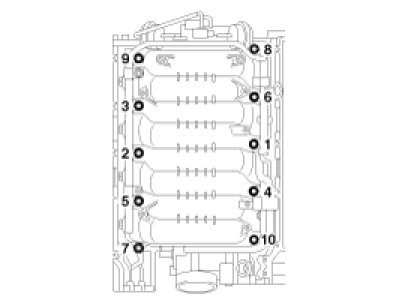

Install the intake manifold module (A), and then tighten the nuts as following method.

Tightening torque :
1st step 4.9 - 7.8 N.m ( 0.5 - 0.8 kgf.m, 3.6 - 5.8 lb-ft)
2nd step 19.6 - 26.5 N.m ( 2.0 - 2.7 kgf.m, 14.5 - 19.5 lb-ft)
