PDM Diagnosis With Scan Tool

It will be able to diagnose defects of Smart key with scan tool quickly. Scan tool can operates actuator forcefully, input/output value monitoring and self diagnosis.
Select model and "Body control module" menu if you want to check PDM.

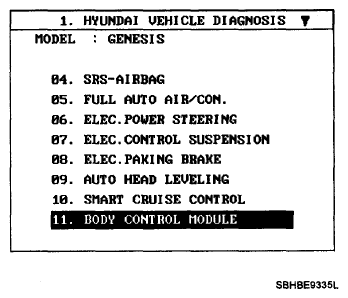

Fig 1: Scan Tool Display - Select Model And "Body Control Module"
Courtesy of HYUNDAI MOTOR CO.
Select "PDM" in the menu.

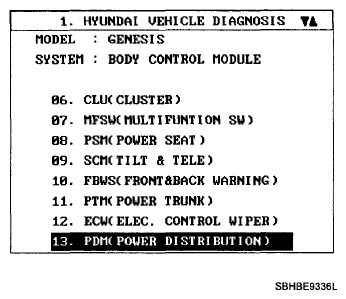

Fig 2: Scan Tool Display - Select "PDM"
Courtesy of HYUNDAI MOTOR CO.
Select Input/output monitoring", if you want to check current data of PDM. It provides the input/output status of each module.

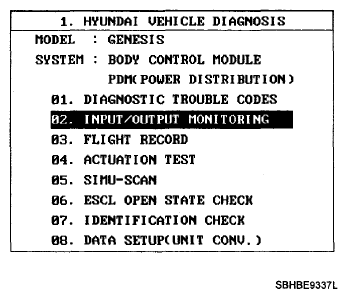

Fig 3: Scan Tool Display - Select Input/Output Monitoring" (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

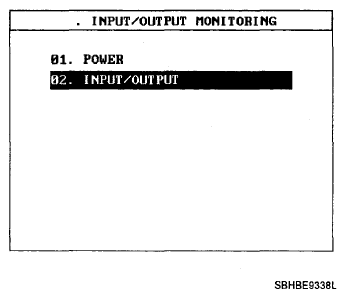

Fig 4: Scan Tool Display - Select Input/Output Monitoring" (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

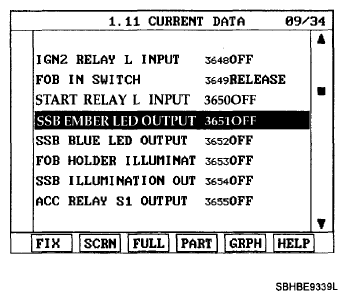

Fig 5: Scan Tool Display - Select Input/Output Monitoring" (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
If you want to check PDM data operation forcefully, select "Actuation test".

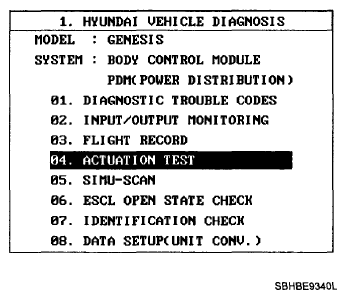

Fig 6: Scan Tool Display - Select "Actuation Test" (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

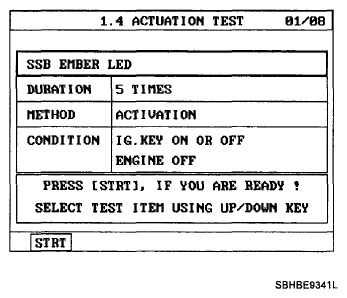

Fig 7: Scan Tool Display - Select "Actuation Test" (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
