PDM (Power Distribution Module): Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel (A). (Refer to "CRASH PAD ")
    Fig 1: Identifying Crash Pad Lower Panel
    G06103655Courtesy of HYUNDAI MOTOR CO.
  3. Remove the reinforcing panel (A).

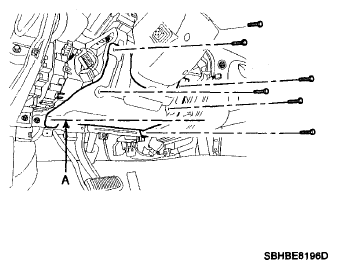

    Fig 2: Identifying Reinforcing Panel
    G06103668Courtesy of HYUNDAI MOTOR CO.
  4. Remove the power distribution module (A) after loosening a bolt and nut.

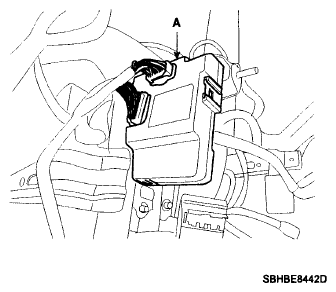

    Fig 3: Identifying Power Distribution Module
    G06103648Courtesy of HYUNDAI MOTOR CO.
