Start/Stop Button: Component

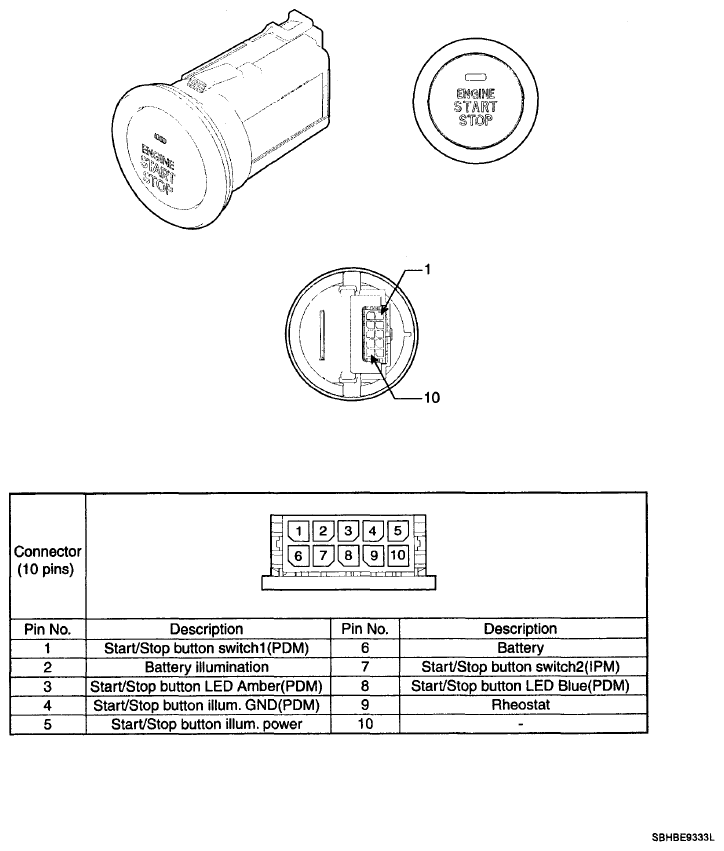

Fig 1: Identifying Start/Stop Button Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
