Start/Stop Button: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel (A). (Refer to "CRASH PAD ")

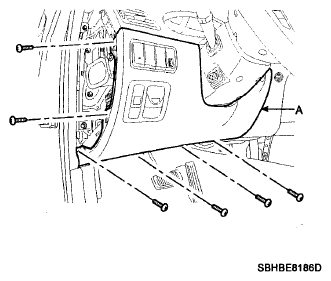

    Fig 1: Identifying Crash Pad Lower Panel
    G06103655Courtesy of HYUNDAI MOTOR CO.
  3. Remove the start/stop button (A) after loosening a mounting screw and connector.

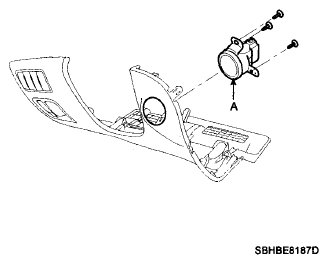

    Fig 2: Identifying Start/Stop Button With Mounting Screw & Connector
    G06103656Courtesy of HYUNDAI MOTOR CO.
