Function Of Safety Power Window: Notes

When driver door power window auto-up switch is operated, safety function is activated.

1. Safety function condition

   When detect the force of 100N (using the 10N/mm spring) during the window rising, window is reversed.

2. Length of window reversing (except holding the auto-up switch)
   1. When detect the jamming during the 4 mm ~ 250 mm (0.15 ~ 9.84 in.) from top of the door.

      → Window is reversed until 300 mm (11.81 in.) from top of the door.

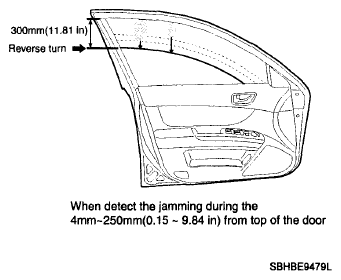

      Fig 1: Identifying Window Reversing Length - Detect Jamming 4mm To 250mm

      Courtesy of HYUNDAI MOTOR CO.
   2. When detect the jamming over the 250 mm (9.84 in.) from top of the door.

      → Window is reversed until 50 mm (1.96 in.) from jamming position.

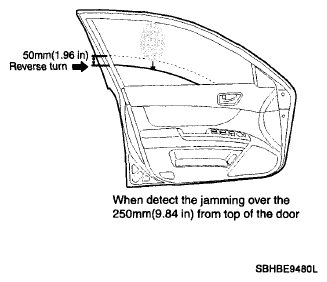

      Fig 2: Identifying Window Reversing Length - Detect Jamming Over 250mm

      Courtesy of HYUNDAI MOTOR CO.
3. Length of window reversing (holding the auto-up switch)
   1. When detect the jamming during holding the auto-up switch.

      → Window is reverse until 25 mm (0.98 in.) from jamming position.

   2. Auto-up function is not available during the 5 seconds from above condition.

      → When holding the auto-up switch, window is operated as a manual-up function. (Safety function is not activated.)

   3. When holding the auto-up switch after 5 seconds from above condition.

      → Window is reverse until 25 mm (0.98 in.) from jamming position.

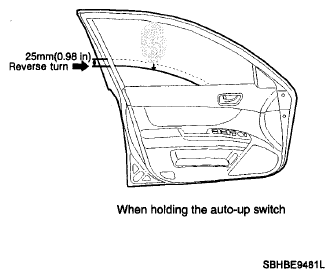

      Fig 3: Identifying Window Reversing Length 25mm - Detect Jamming

      Courtesy of HYUNDAI MOTOR CO.
4. Safety function is not available area

   Safety function is not available during the 4 mm (0.15 in.) from top of the door.
