Front Power Window Motor

  1. Remove (-) negative battery terminal.
  2. Remove the front door trim. (Refer to FRONT DOOR )
  3. Disconnect the motor connector from the motor.

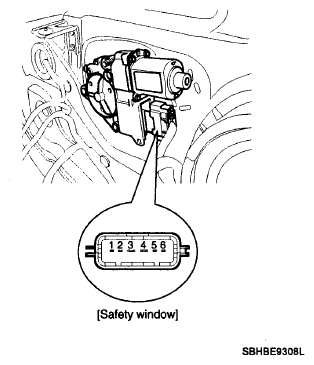

    Fig 1: Identifying Front Power Window Motor Connector Terminals
    G06103928Courtesy of HYUNDAI MOTOR CO.
  4. Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.

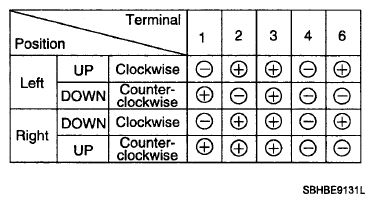

    Fig 2: Front Power Window Motor Connector Terminals Reference Chart
    G06103929Courtesy of HYUNDAI MOTOR CO.
