Driver Power Window Switch

When checking the driver power window switch, select a vehicle type and "BODY CONTROL MODULE" menu.

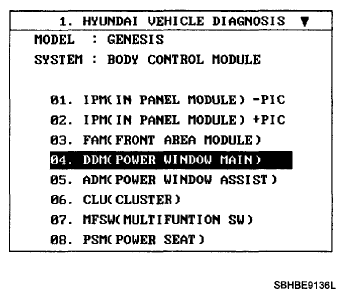

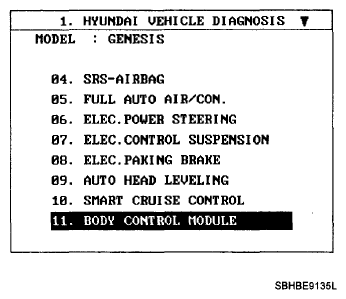

Fig 1: Scan Tool Screen Display - BODY CONTROL MODULE
Courtesy of HYUNDAI MOTOR CO.
Select "DRIVER DOOR MODULE (DDM)".

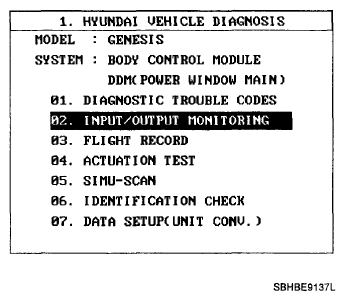

Fig 2: Scan Tool Screen Display - DRIVER DOOR MODULE
Courtesy of HYUNDAI MOTOR CO.
Select option "Input/Output monitoring".

Fig 3: Scan Tool Screen Display - INPUT/OUTPUT MONITORING
Courtesy of HYUNDAI MOTOR CO.

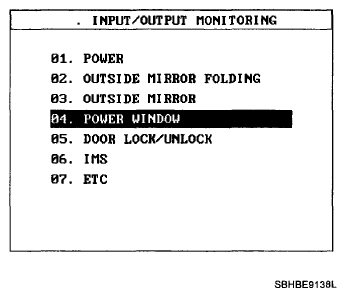

Fig 4: Scan Tool Screen Display - POWER WINDOW
Courtesy of HYUNDAI MOTOR CO.

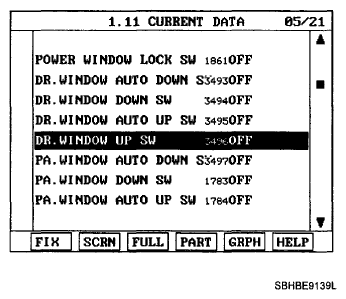

Fig 5: Scan Tool Screen Display - DR WINDOW UP SW
Courtesy of HYUNDAI MOTOR CO.

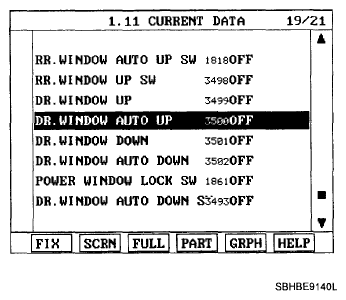

Fig 6: Scan Tool Screen Display - DR WINDOW AUTO UP
Courtesy of HYUNDAI MOTOR CO.
To check the input value of power window switch in force mode, select option "ACTUATION TEST".

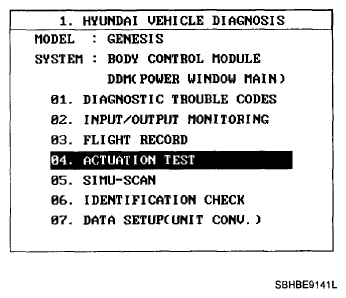

Fig 7: Scan Tool Screen Display - ACTUATION TEST
Courtesy of HYUNDAI MOTOR CO.

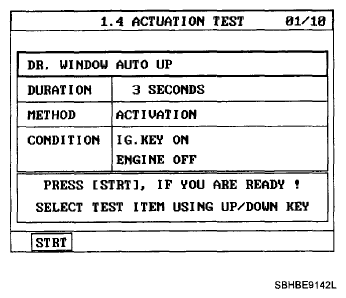

Fig 8: Scan Tool Screen Display - Actuation Test Screen
Courtesy of HYUNDAI MOTOR CO.
