Fob Holder: Component

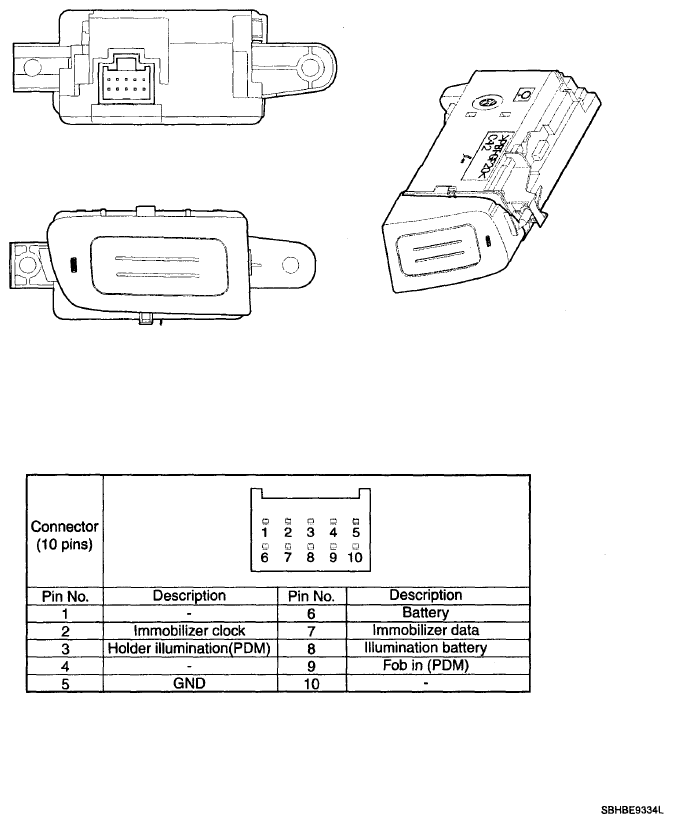

Fig 1: Identifying Fob Holder Components
G06103657Courtesy of HYUNDAI MOTOR CO.
