Accelerator Position Sensor (APS): Specifications: Specification

Accelerator Position Output Voltage (V)
APS1 APS2
C.T 0.7 ~ 0.8 0.275 ~ 0.475
W.O.T 3.8 ~ 4.4 1.75 ~ 2.35

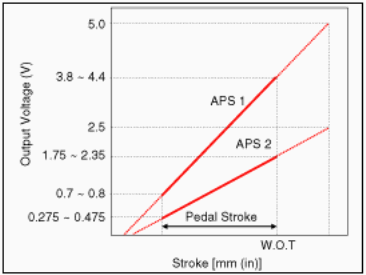

Fig 1: Accelerator Position Sensor Graph
G08804464Courtesy of HYUNDAI MOTOR AMERICA
