Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Lift the vehicle.
  3. Disconnect the canister close valve connector (A).
  4. Disconnect the ventilation hose (B) from the fuel tank air filter and canister close valve.

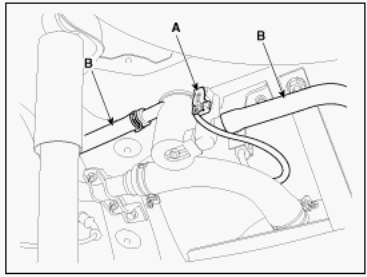

    Fig 1: Identifying Canister Close Valve Connector And Ventilation Hose
    G08804507Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the fuel tank air filter assembly after removing a bolt (A).

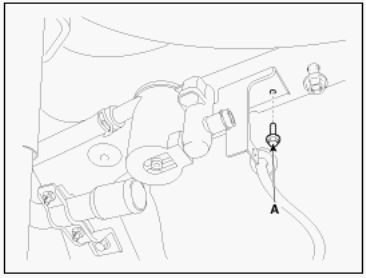

    Fig 2: Identifying Fuel Tank Air Filter Assembly Mounting Bolt
    G08804508Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the bracket (A) after pulling it.

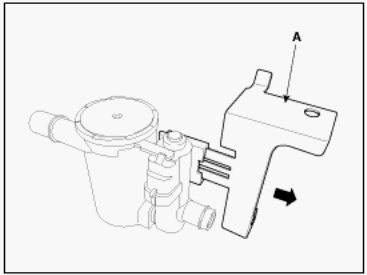

    Fig 3: Removing Fuel Tank Air Filter Assembly Bracket
    G08804509Courtesy of HYUNDAI MOTOR AMERICA
  7. Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter (C) after rotating it in the direction of the arrow in the figure.

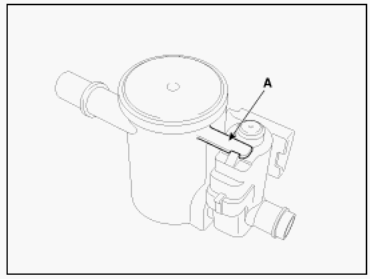

    Fig 4: Identifying Canister Close Valve Lever
    G08804510Courtesy of HYUNDAI MOTOR AMERICA

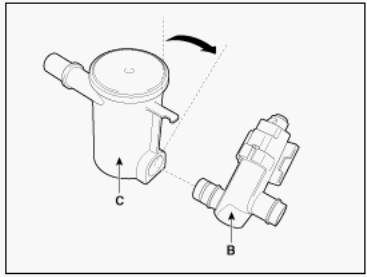

    Fig 5: Separating Canister Close Valve From Fuel Tank Air Filter
    G08804511Courtesy of HYUNDAI MOTOR AMERICA
