Components Location

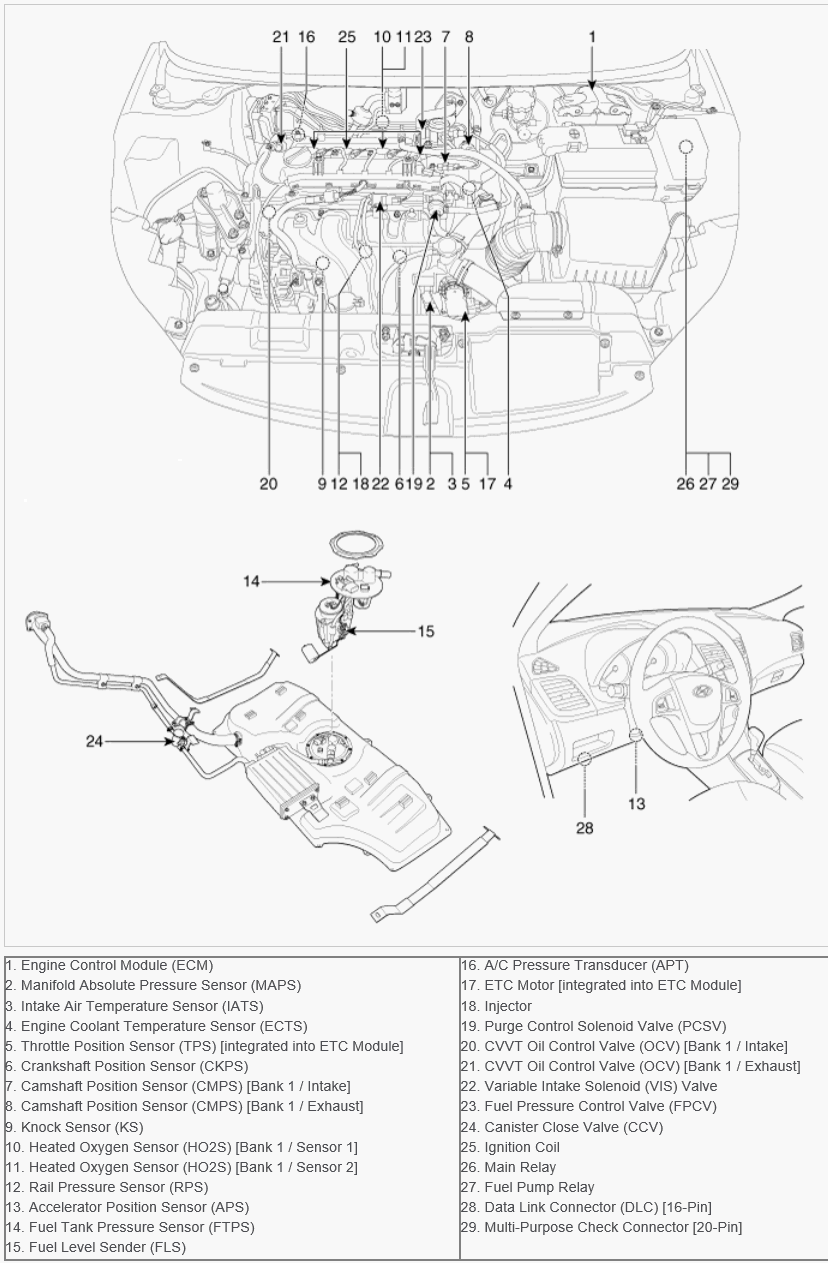

Fig 1: Locating Engine Control & Fuel System Components Location (1 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

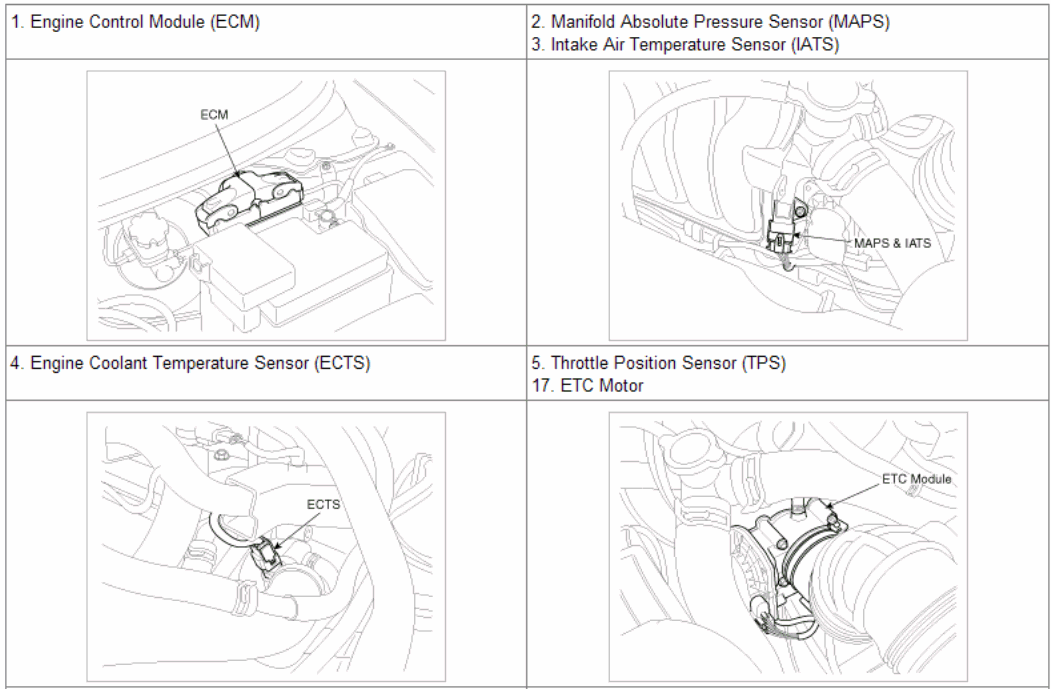

Fig 2: Locating Engine Control & Fuel System Components Location (2 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

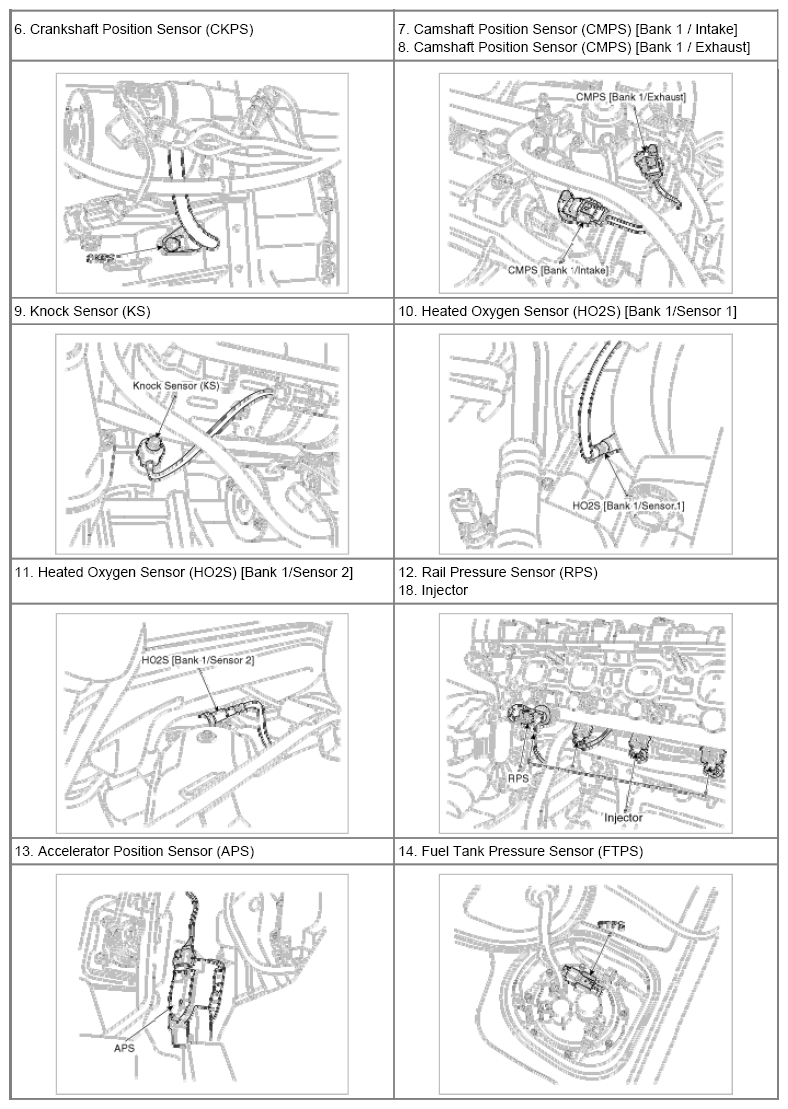

Fig 3: Locating Engine Control & Fuel System Components Location (3 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

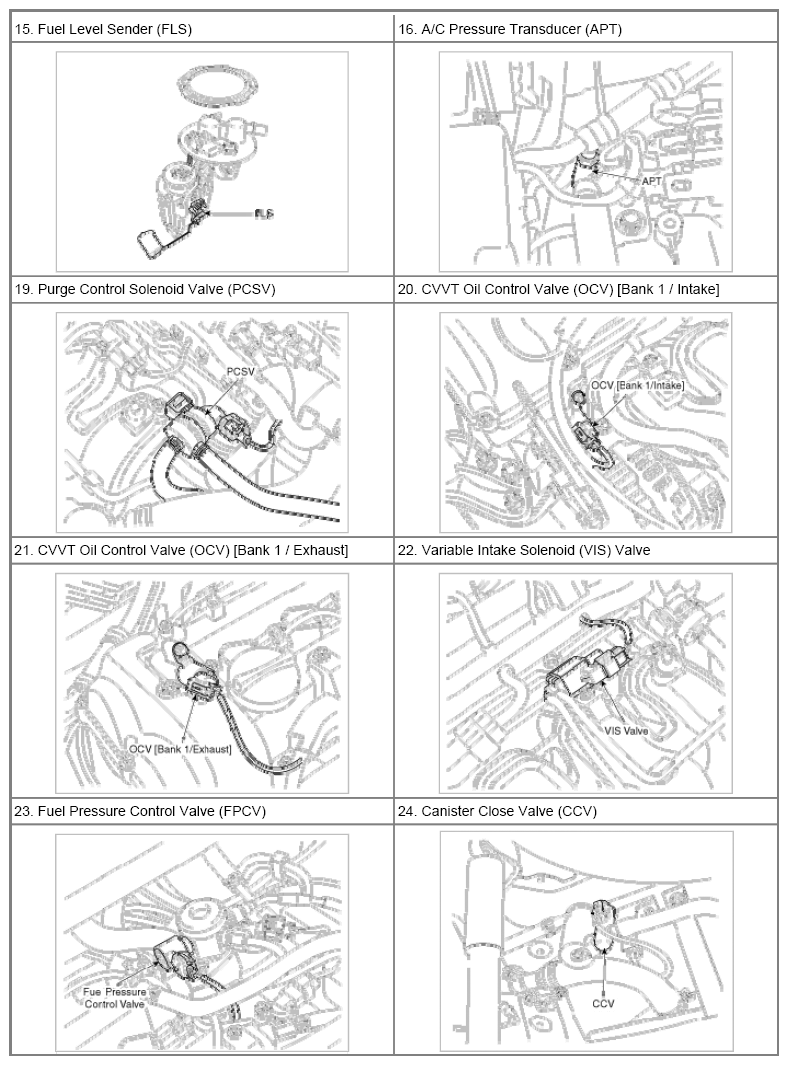

Fig 4: Locating Engine Control & Fuel System Components Location (4 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

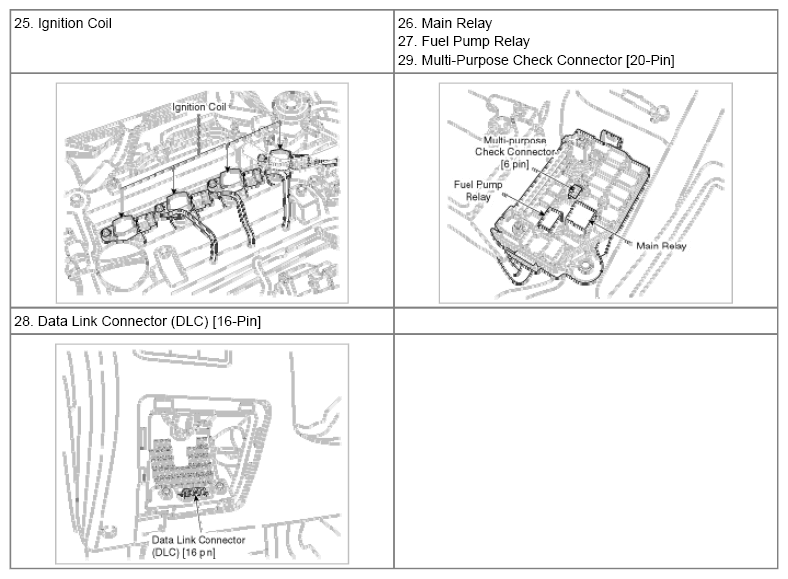

Fig 5: Locating Engine Control & Fuel System Components Location (5 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
