Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the crankshaft position sensor connector (A) and remove the sensor (B) after removing the installation bolt.

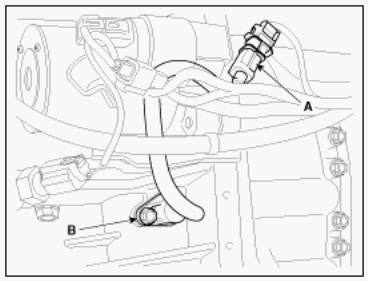

    Fig 1: Identifying Crankshaft Position Sensor And Connector
    G08804434Courtesy of HYUNDAI MOTOR AMERICA
