Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the resonator and the air intake hose (Refer to INTAKE AND EXHAUST SYSTEM ).
  3. Disconnect the ETC module connector (A).

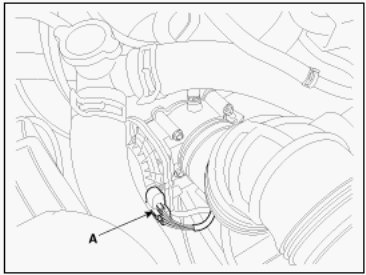

    Fig 1: Identifying ETC Module Connector
    G08804413Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the coolant hoses (A).
    Fig 2: Identifying Coolant Hoses
    G08804414Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the installation bolts, and then remove the ETC module (A) from the engine.

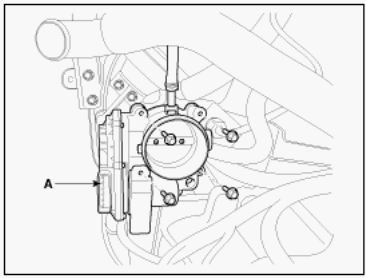

    Fig 3: Identifying ETC Module
    G08804415Courtesy of HYUNDAI MOTOR AMERICA
