Circuit Diagram: (A/T)

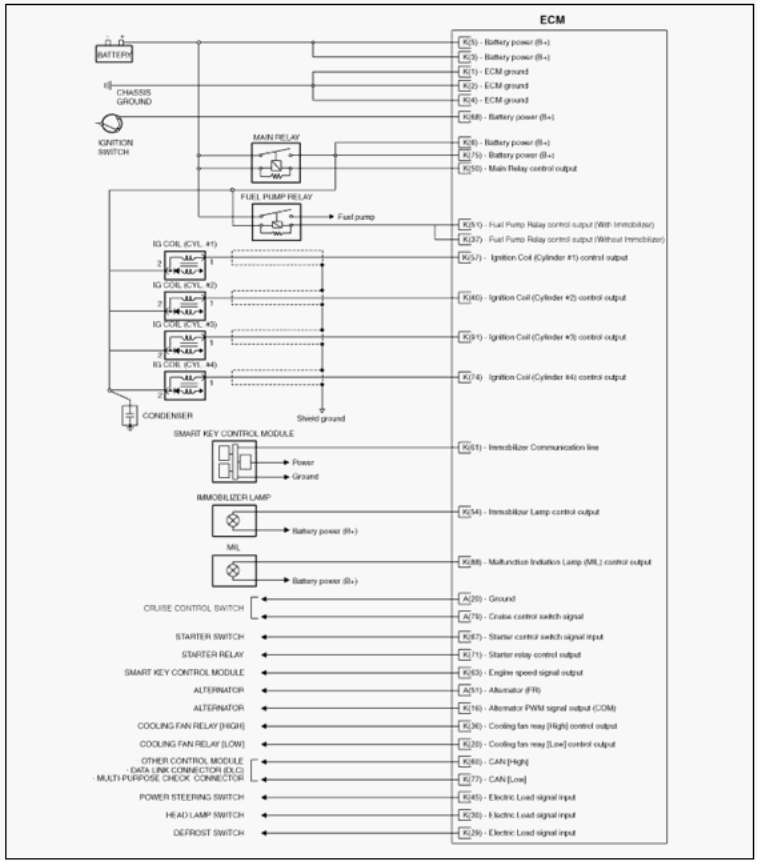

Fig 1: ECM - (A/T) Circuit Diagram (1 Of 4)
G08804401Courtesy of HYUNDAI MOTOR AMERICA

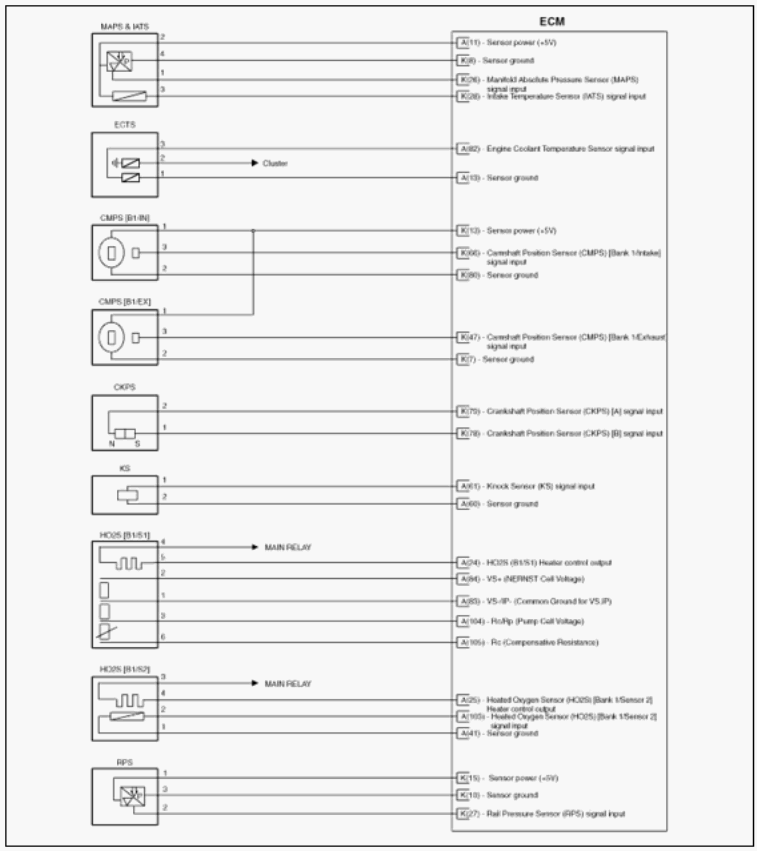

Fig 2: ECM - (A/T) Circuit Diagram (2 Of 4)
G08804402Courtesy of HYUNDAI MOTOR AMERICA

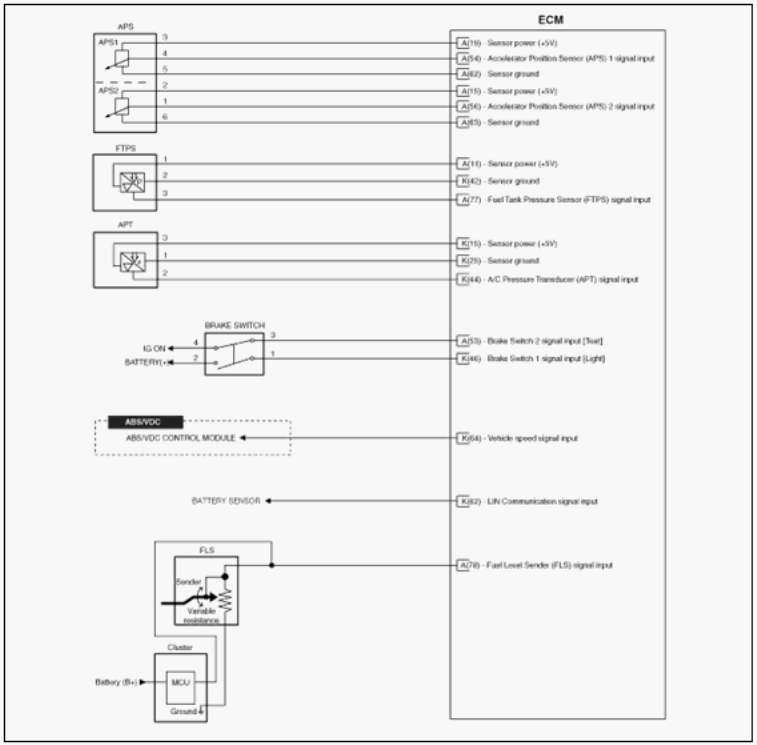

Fig 3: ECM - (A/T) Circuit Diagram (3 Of 4)
G08804403Courtesy of HYUNDAI MOTOR AMERICA

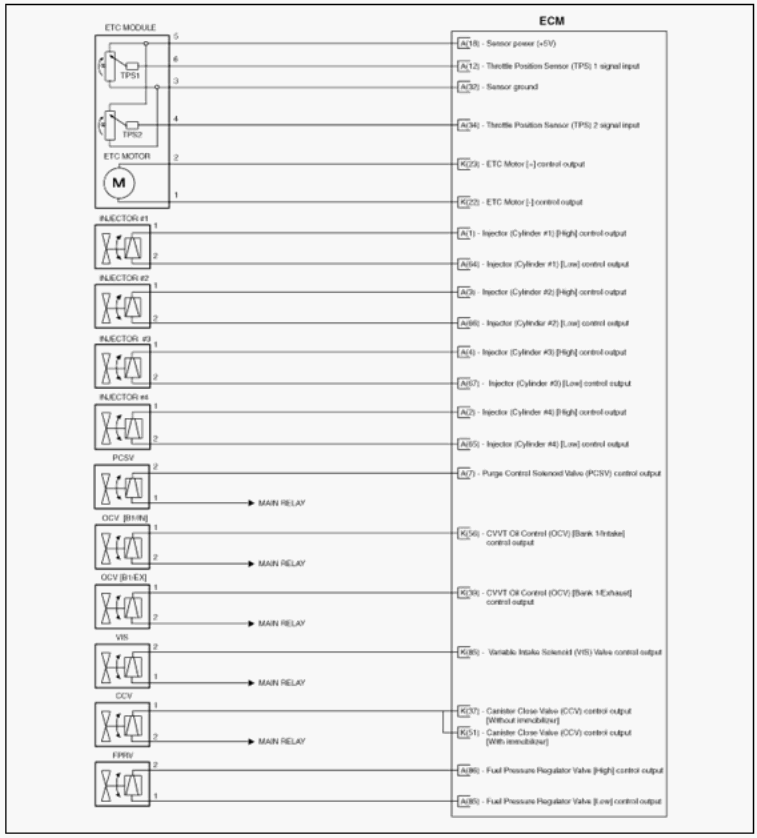

Fig 4: ECM - (A/T) Circuit Diagram (4 Of 4)
G08804404Courtesy of HYUNDAI MOTOR AMERICA
