Circuit Diagram: (M/T)

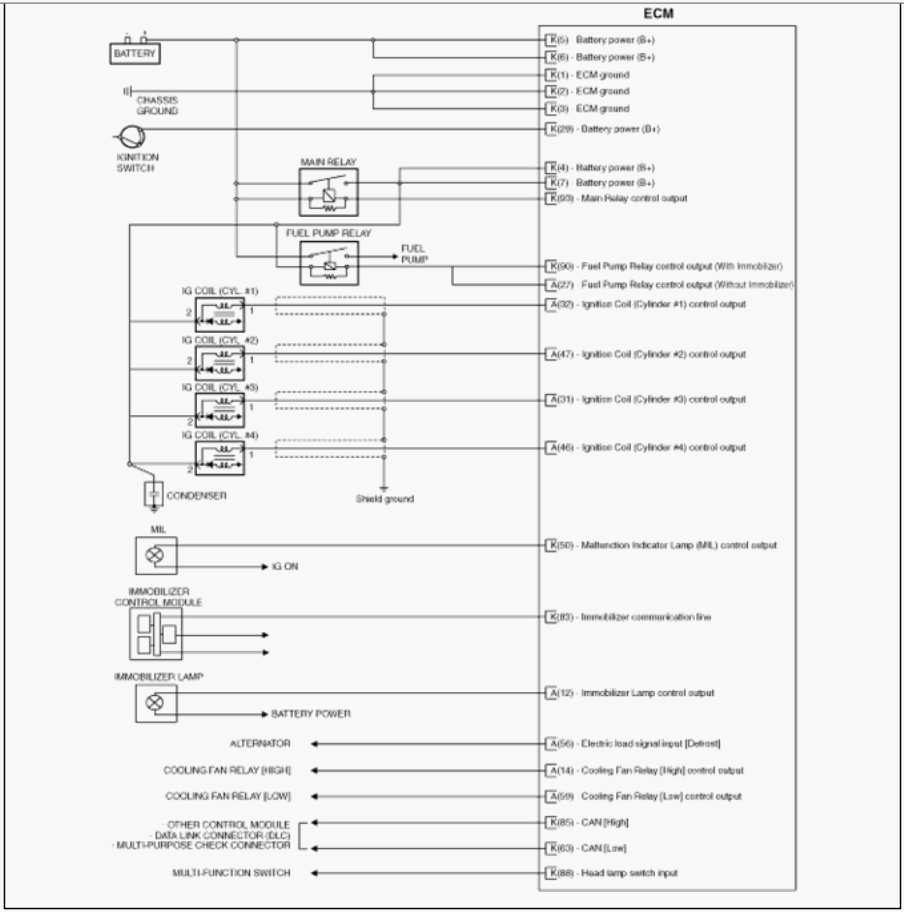

Fig 1: ECM - (M/T) Circuit Diagram (1 Of 4)
G08804397Courtesy of HYUNDAI MOTOR AMERICA

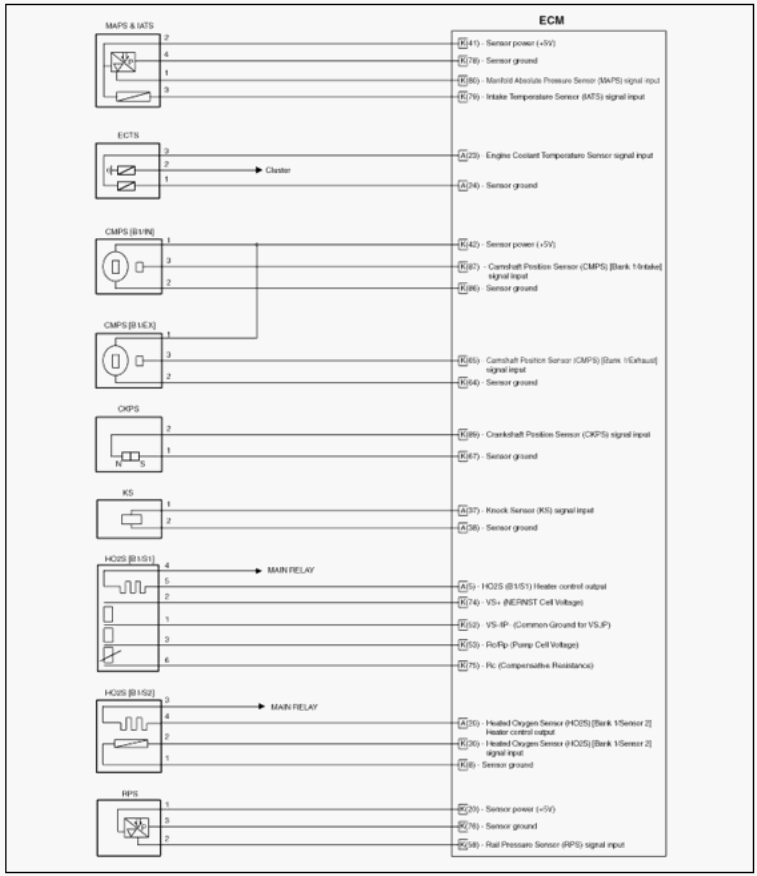

Fig 2: ECM - (M/T) Circuit Diagram (2 Of 4)
G08804398Courtesy of HYUNDAI MOTOR AMERICA

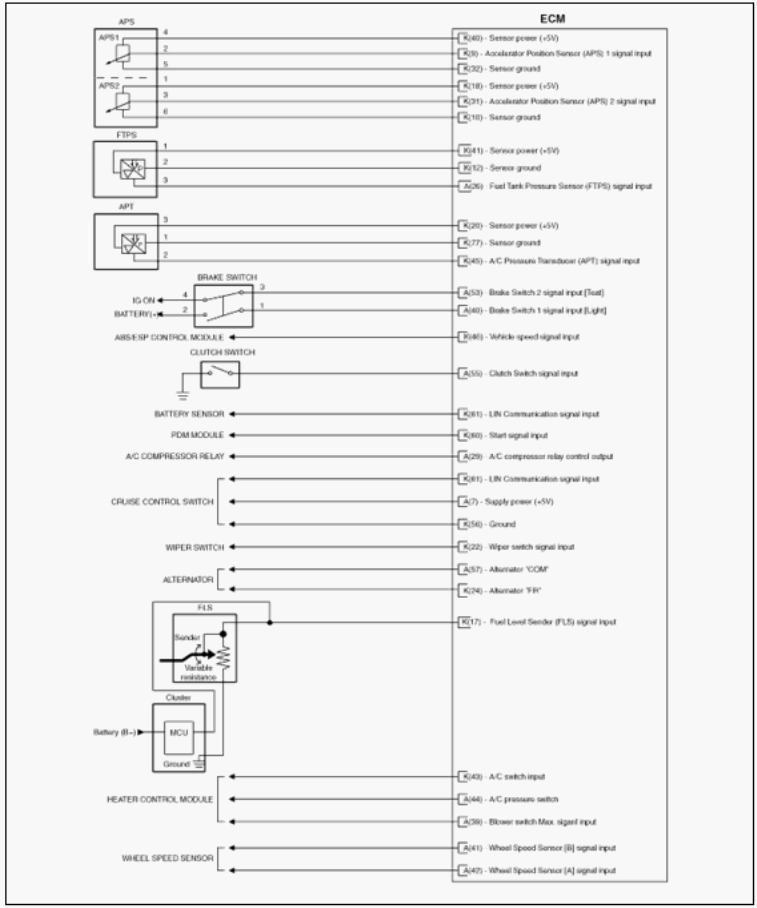

Fig 3: ECM - (M/T) Circuit Diagram (3 Of 4)
G08804399Courtesy of HYUNDAI MOTOR AMERICA

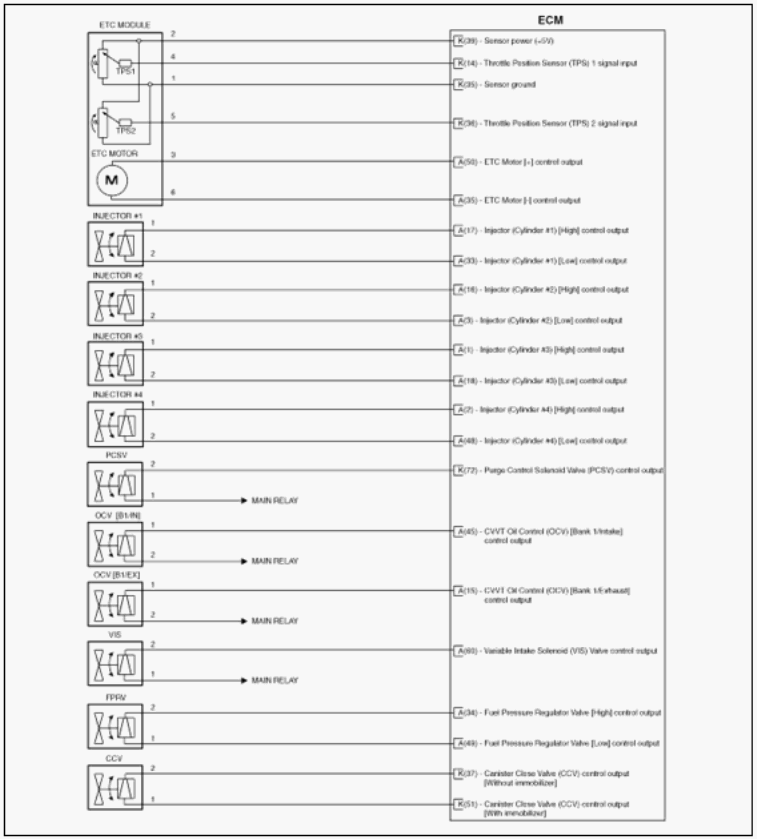

Fig 4: ECM - (M/T) Circuit Diagram (4 Of 4)
G08804400Courtesy of HYUNDAI MOTOR AMERICA
