Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the rear seat (Refer to REAR SEAT ).
  3. Remove the fuel pump service cover (A).
    Fig 1: Identifying Fuel Pump Service Cover
    G08804515Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the fuel tank pressure sensor connector.
  5. Remove the fuel tank pressure sensor (A) after releasing the hooks vertically.

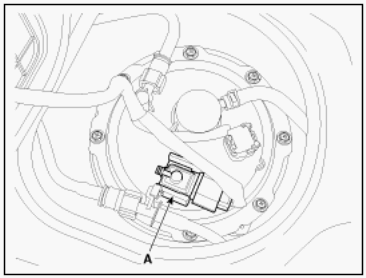

    Fig 2: Identifying Fuel Tank Pressure Sensor
    G08804472Courtesy of HYUNDAI MOTOR AMERICA

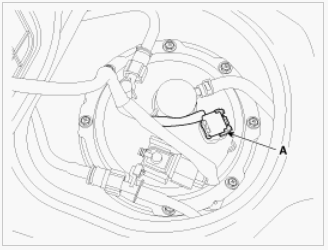

    Fig 3: Identifying Fuel Tank Pressure Sensor
    G08804516Courtesy of HYUNDAI MOTOR AMERICA
