Signal Waveform

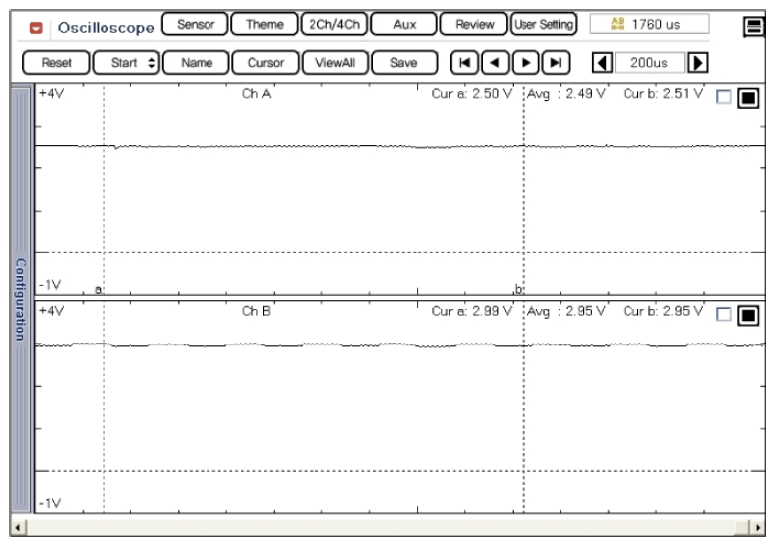

Fig 1: Heated Oxygen Sensor Signal Waveform (HO2S 1)
G08804447Courtesy of HYUNDAI MOTOR AMERICA

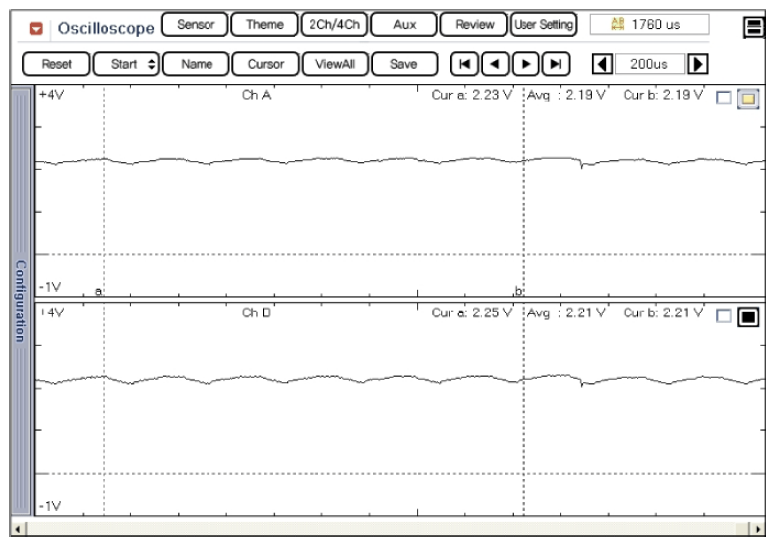

Fig 2: Heated Oxygen Sensor Signal Waveform (HO2S 2)
G08804448Courtesy of HYUNDAI MOTOR AMERICA

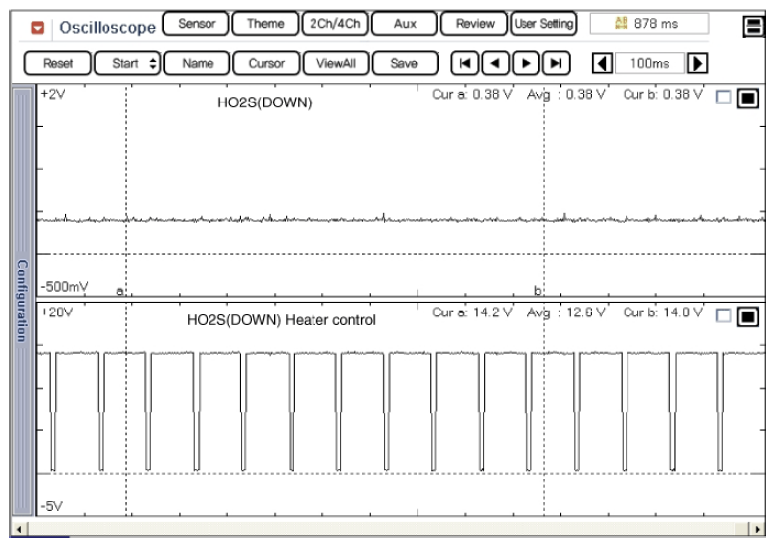

Fig 3: Heated Oxygen Sensor Signal Waveform (HO2S 3)
G08804449Courtesy of HYUNDAI MOTOR AMERICA
