Circuit Diagram: (A/T)

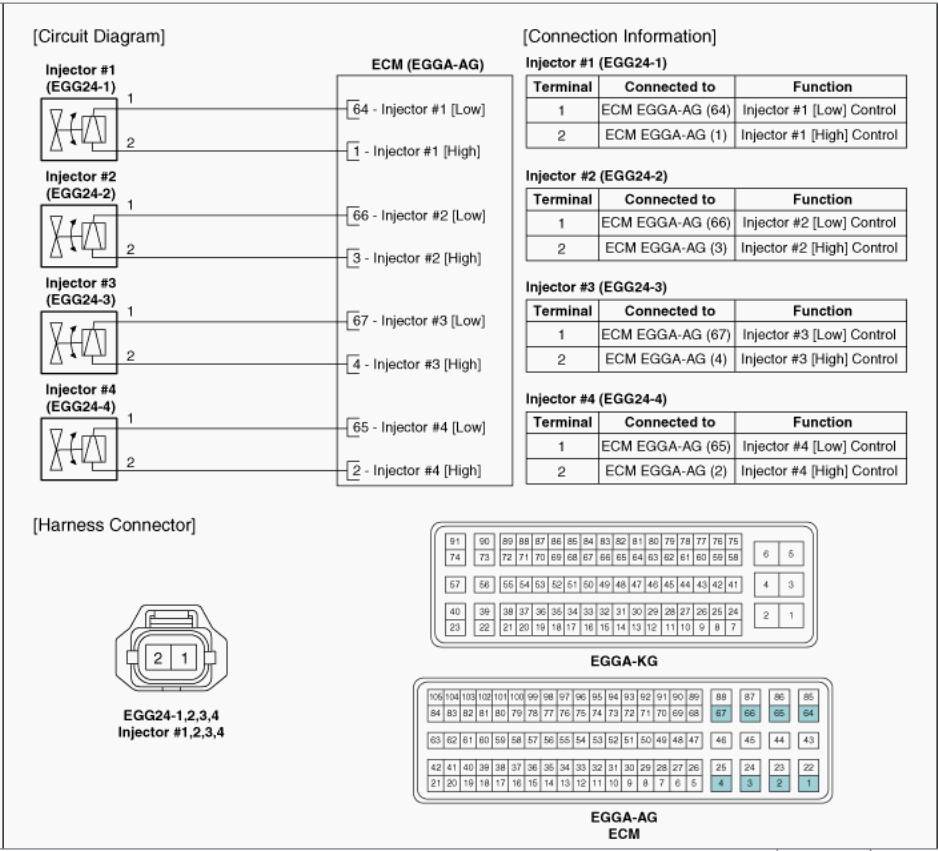

Fig 1: Injector - Circuit Diagram (A/T)

G08804476

Courtesy of HYUNDAI MOTOR AMERICA
