Circuit Diagram: (M/T)

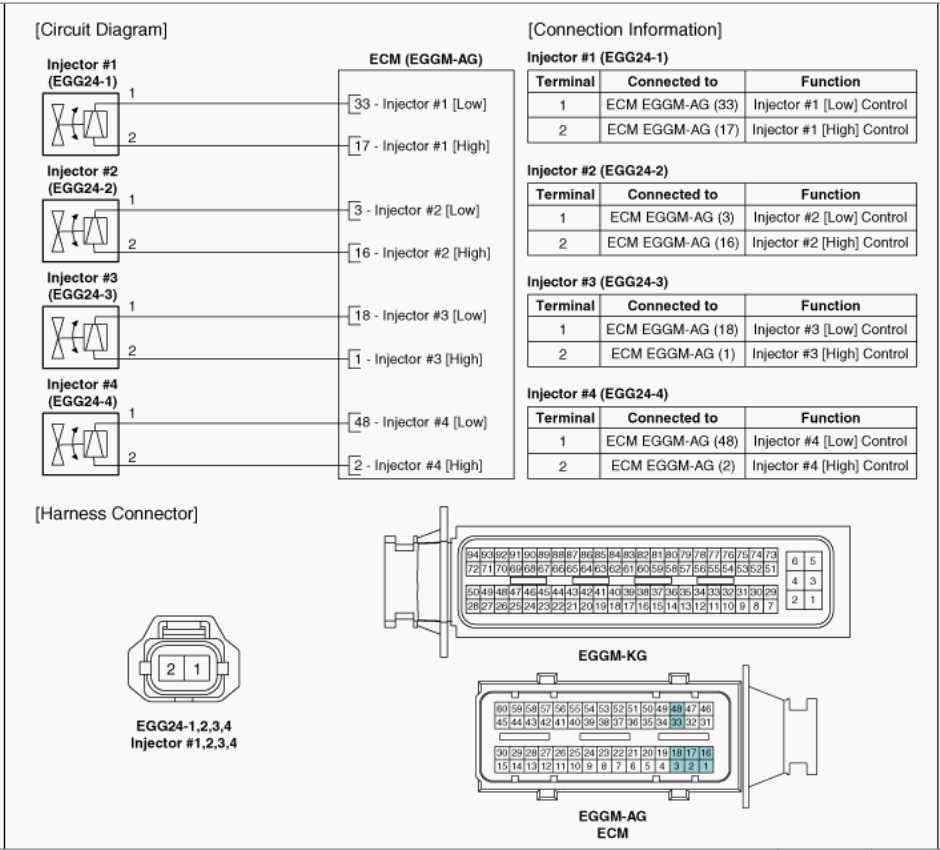

Fig 1: Injector - Circuit Diagram (M/T)

G08804475

Courtesy of HYUNDAI MOTOR AMERICA
