Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the purge control solenoid valve connector (A).
  3. Disconnect the vapor hoses (B) from the purge control solenoid valve.
  4. Remove the valve after removing the bolt (C).

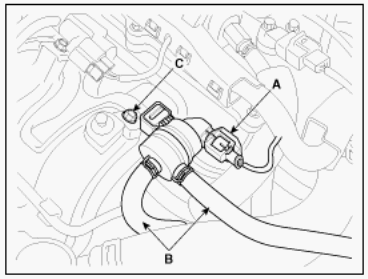

    Fig 1: Identifying Purge Control Solenoid Valve Connector, Vapor Hoses And Mounting Bolt
    G08804489Courtesy of HYUNDAI MOTOR AMERICA
