Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.
  2. Disconnect the accelerator position sensor connector (A).
  3. Remove the installation nuts (B), and then remove the accelerator pedal module.

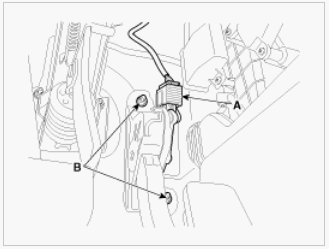

    Fig 1: Identifying Accelerator Position Sensor Connector And Installation Nuts
    G08804539Courtesy of HYUNDAI MOTOR AMERICA
