Signal Waveform

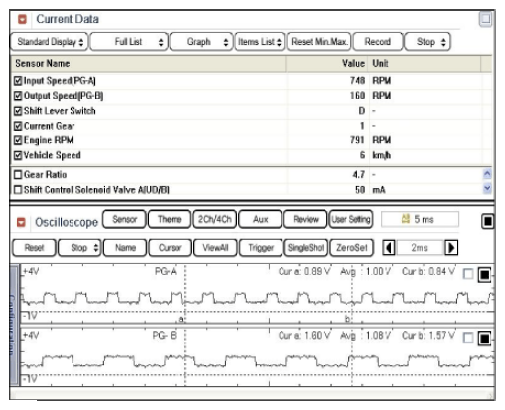

Fig 1: Input/Output Speed Sensor At Low Speed
G08804702Courtesy of HYUNDAI MOTOR AMERICA

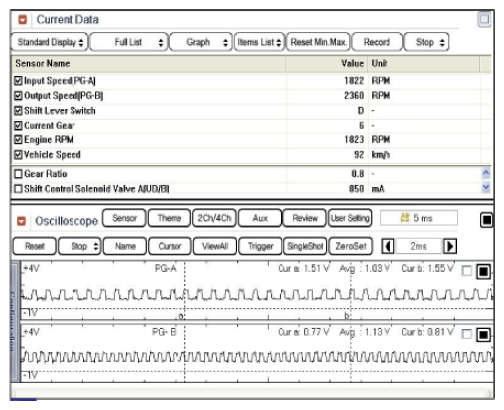

Fig 2: Input/Output Speed Sensor At High Speed
G08804703Courtesy of HYUNDAI MOTOR AMERICA
