Components Location

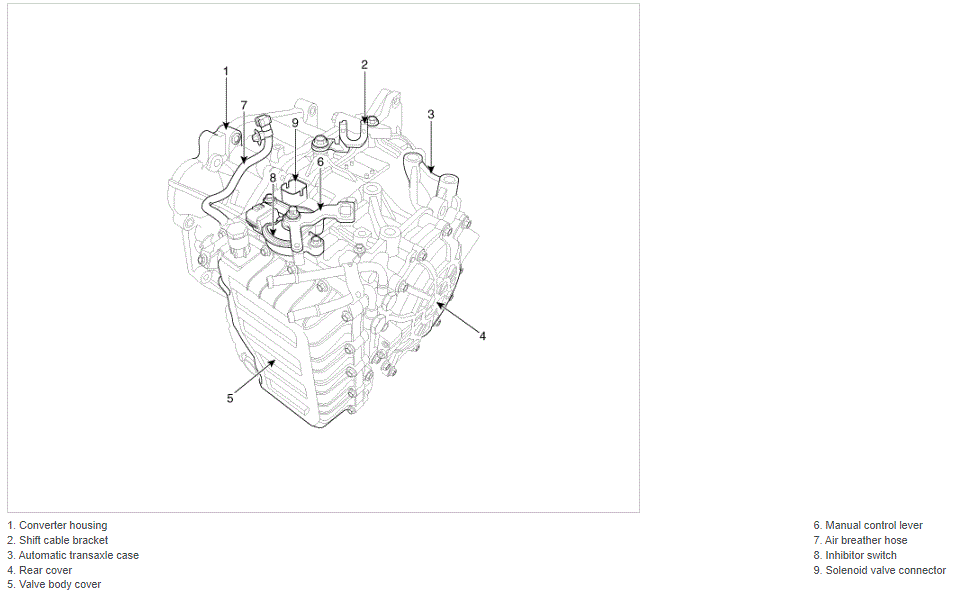

Fig 1: Locating Automatic Transaxle System Components
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
