Shift Lever Assembly Replacement

Remove the center console.
(Refer to "interior (CONSOLE )" )
Disconnect the connector (A).

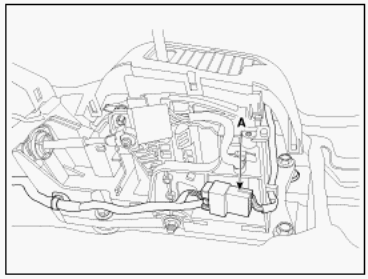

Fig 1: Identifying Shift Lever Assembly Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the control cable (B).

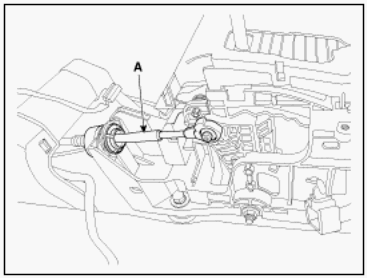

Fig 2: Identifying Shift Lever Assembly Control Cable
Courtesy of HYUNDAI MOTOR AMERICA
Remove the shift lock cable (C) and key lock cable (B) by removing the nuts (A-2ea).
Tightening torque:

9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8 lb-ft)

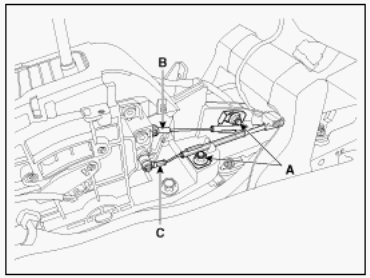

Fig 3: Identifying Shift Lock And Key Lock Cable With Mounting Nuts
Courtesy of HYUNDAI MOTOR AMERICA
Remove the shift lever assembly (A) by removing the bolts (B-4ea).
Tightening torque:

9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8 lb-ft)

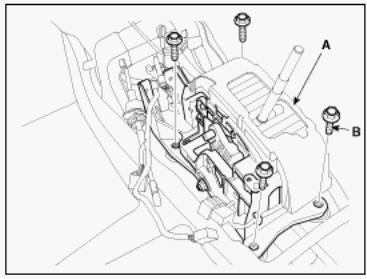

Fig 4: Identifying Shift Lever Assembly With Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE: Make sure vehicle does not roll before setting room side shift lever and T/M side manual control lever to "N" position.
