Repair procedures: Replacement

  1. Turn ignition switch OFF.
  2. Disconnect the negative (-) battery cable.
  3. Disconnect the TCM connector (A).

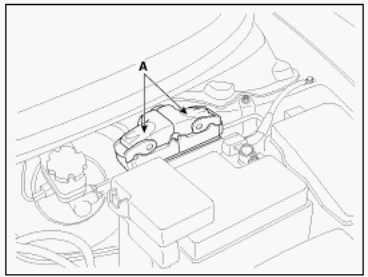

    Fig 1: Identifying TCM Connector
    G08804679Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the TCM after removing the bolt and nut.

    TCM installation bolt/nut:

    9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

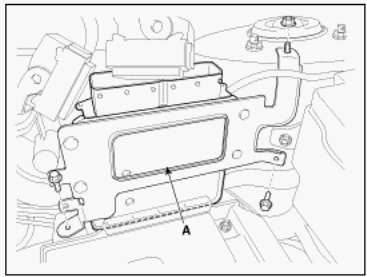

    Fig 2: Identifying TCM
    G08804680Courtesy of HYUNDAI MOTOR AMERICA
