Spark Test

Disconnect the connectors (A) and then ignition coils (B).

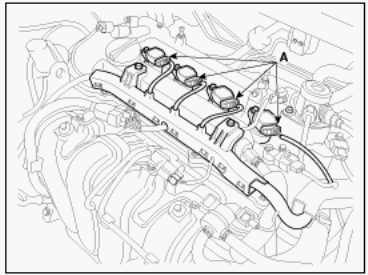

Fig 1: Identifying Ignition Coil Connectors
Courtesy of HYUNDAI MOTOR AMERICA

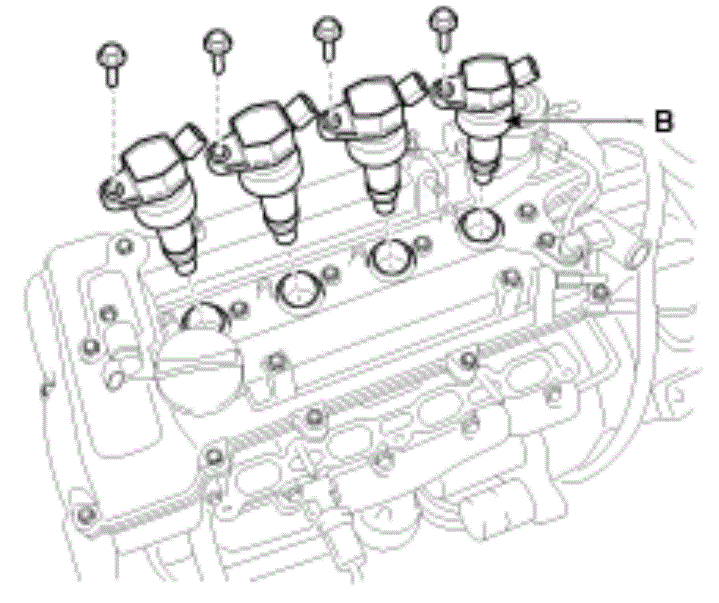

Fig 2: Identifying Ignition Coils
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the injector extension connector for fuel not to be injected while checking.

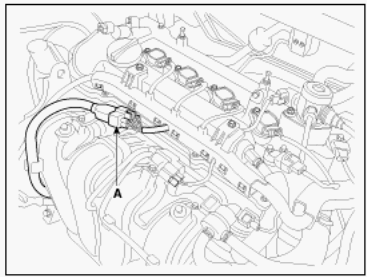

Fig 3: Identifying Injector Extension Connector
Courtesy of HYUNDAI MOTOR AMERICA
Using a spark plug socket, remove the spark plug.
Install the spark plug to the ignition coil.
Ground the spark plug to the engine.

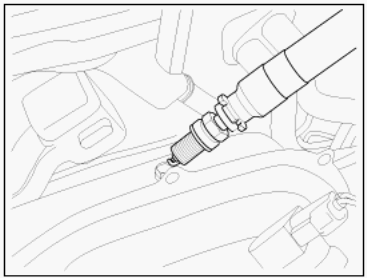

Fig 4: Grounding Spark Plug To Engine
Courtesy of HYUNDAI MOTOR AMERICA
Check if spark occurs while engine is being cranked.
NOTE: Do not crank engine for more then 5~10 seconds.
Inspect all the spark plugs.
Using a spark plug socket, install the spark plug.
Install the ignition coil.
Tightening torque:

9.8 ~ 11.8 Nm (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)
Reconnect the ignition coil connector.

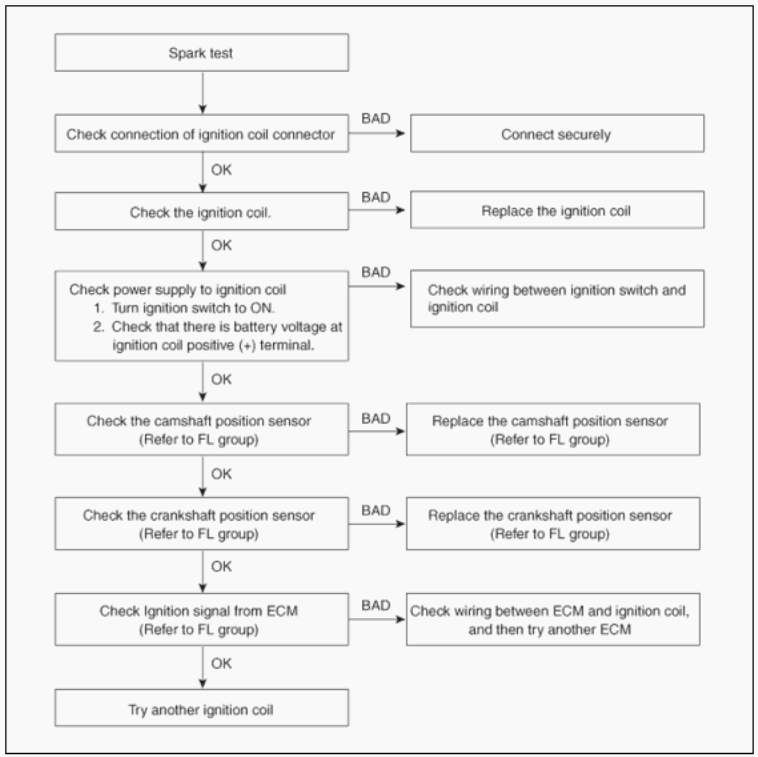

Fig 5: Spark Test Workflow Chart
