Shift Cable Replacement

Remove the floor Interior console assembly.
(Refer to "Interior (CONSOLE )" )

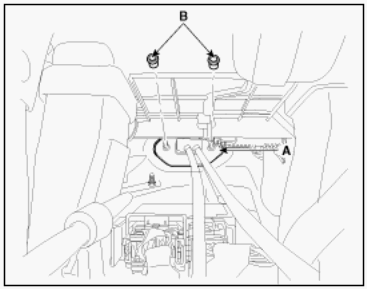

Remove the select cable snap pin (A) and the clip (B) from the select cable assembly.

Fig 1: Identifying Select Cable Snap Pin
Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Removing Clip From Select Cable Assembly
Courtesy of HYUNDAI MOTOR AMERICA

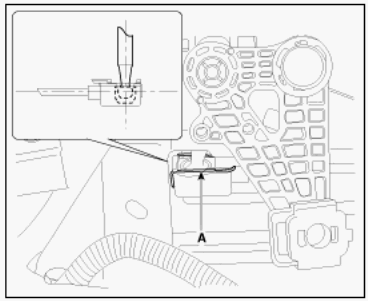

Remove the clip (A) from the shift cable assembly.
CAUTION: Set securely.

Fig 3: Identifying Shift Cable Assembly Clip
Courtesy of HYUNDAI MOTOR AMERICA

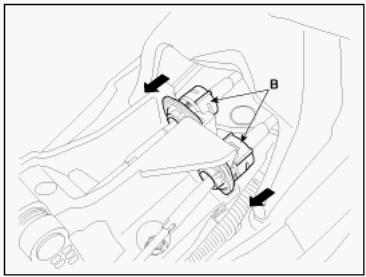

Remove the retainer (A) and nuts (B-2ea).
Tightening torque:

7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

Fig 4: Identifying Retainer And Nuts
Courtesy of HYUNDAI MOTOR AMERICA

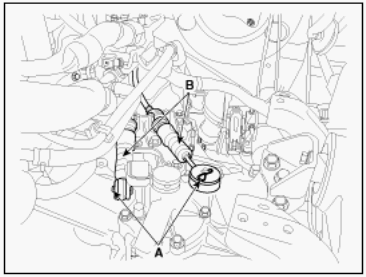

Remove the pins (A).
Remove the cable (B) from the cable bracket at manual transaxle assembly side.
Remove the shift cable and select cable at cabin room.
CAUTION: Insert securely.
Marking must be shown after assembly.
