Shift Lever Assembly Replacement

Remove the floor Interior console assembly.
(Refer to "Interior (CONSOLE )" )
Remove the select cable snap pin (A) and the clip (B) from the select cable assembly.

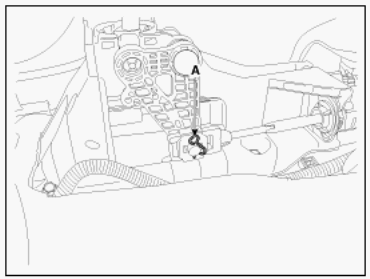

Fig 1: Identifying Select Cable Snap Pin
Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Removing Clip From Select Cable Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Remove the clip (A) from the shift cable assembly.
CAUTION: Set securely.

Fig 3: Identifying Shift Cable Assembly Clip
Courtesy of HYUNDAI MOTOR AMERICA
Remove the shift lever assembly (B) after removing shift lever assembly installation bolts (A-4ea).
Tightening torque:

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

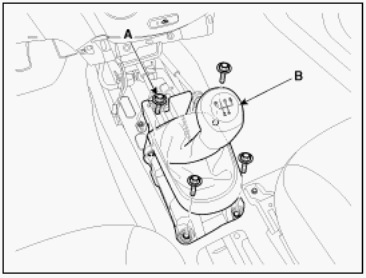

Fig 4: Identifying Shift Lever Assembly And Installation Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Make sure vehicle does not roll before setting room side shift lever and T/M side manual control lever to "N" position.
