Shift Lock Cable Replacement

Remove the center console.
(Refer to "interior (CONSOLE )" )

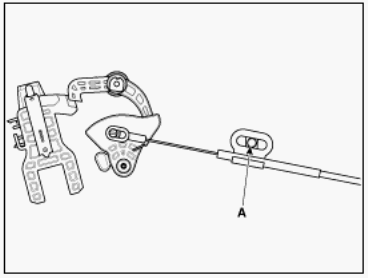

Remove the shift lock cable (A).
Tightening torque:

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

Fig 1: Identifying Shift Lock Cable
Courtesy of HYUNDAI MOTOR AMERICA

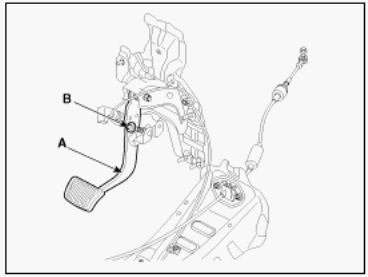

Remove the shift lock cable (B) from the brake pedal (A).

Fig 2: Identifying Shift Lock Cable And Brake Pedal
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE: Shift lock cable must not have any bending.
