IMS (Integrated Memory System) Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
IMS (Integrated Memory System) Module
Description

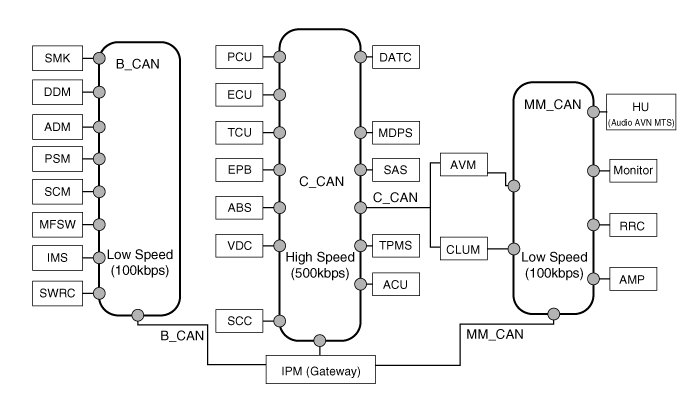

Communication network diagram
