Home >> Hyundai >> 2012 >> Azera V6-3.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> R21-R Rear Parking Assist Sensor RH
April 5, 2026: LEMON Manuals is launched! Read the announcement.

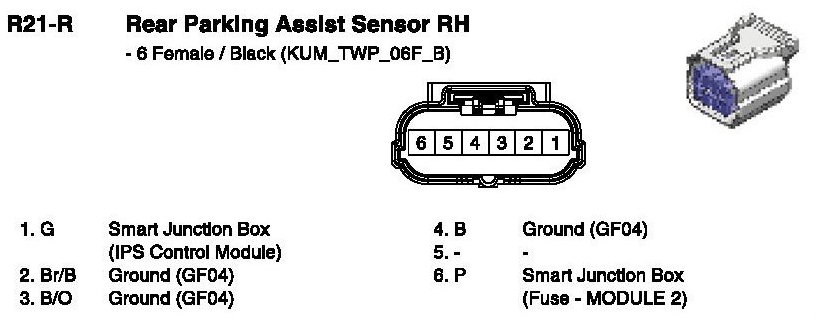

R21-R Rear Parking Assist Sensor RH

R21-R Rear Parking Assist Sensor RH:
