Keyless Entry Module

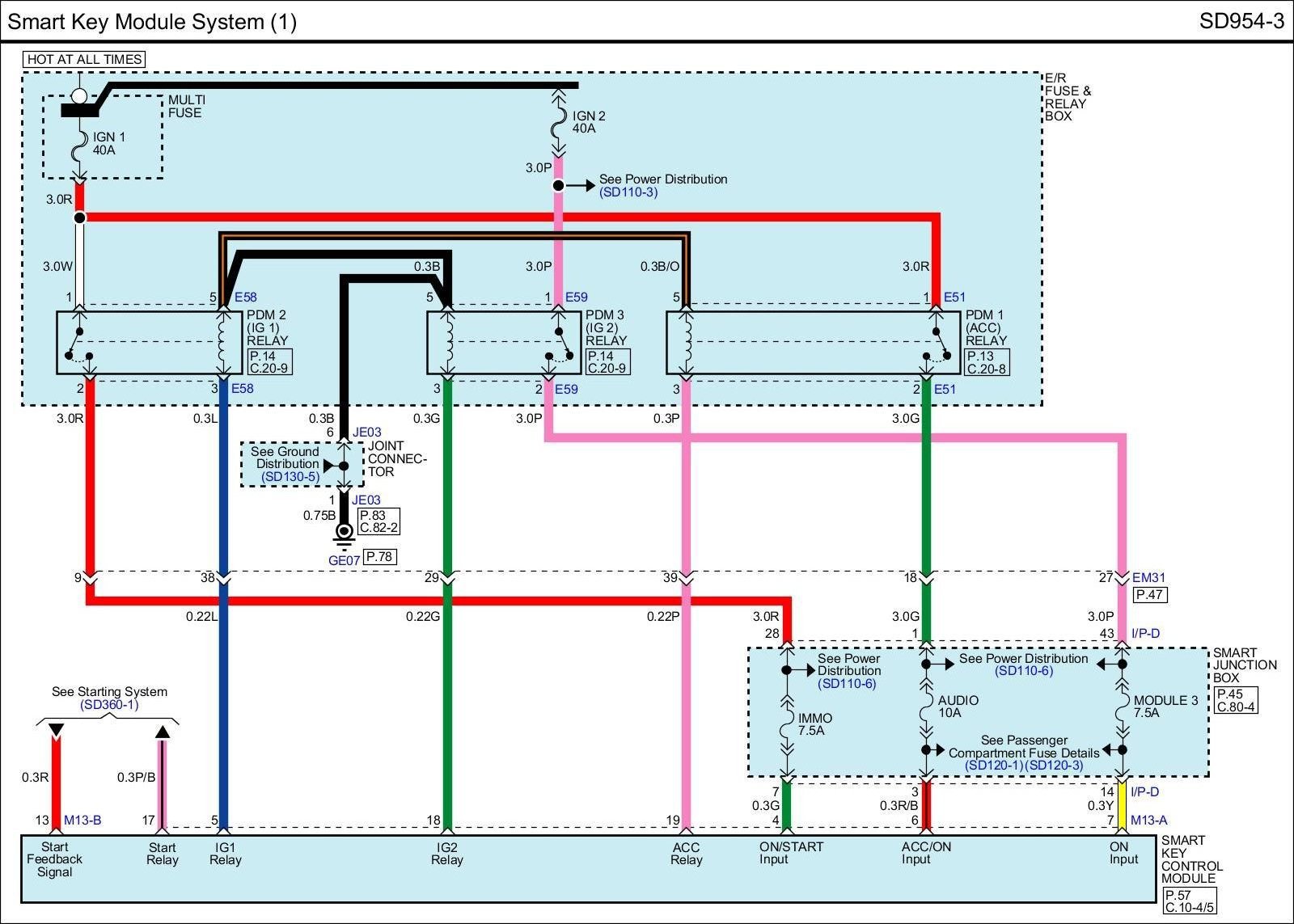

SD954-3 Smart Key Module System (1):

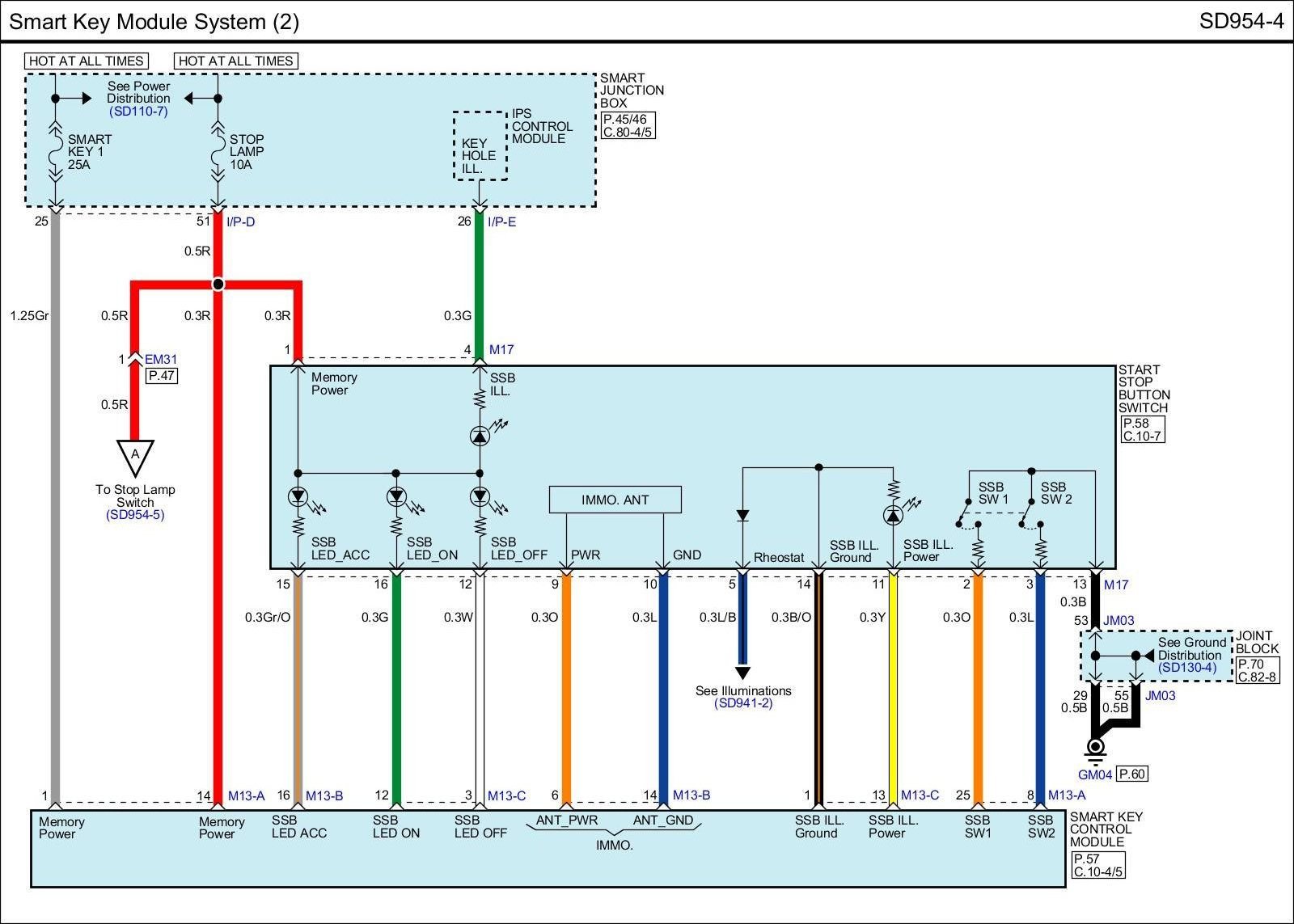

SD954-4 Smart Key Module System (2):

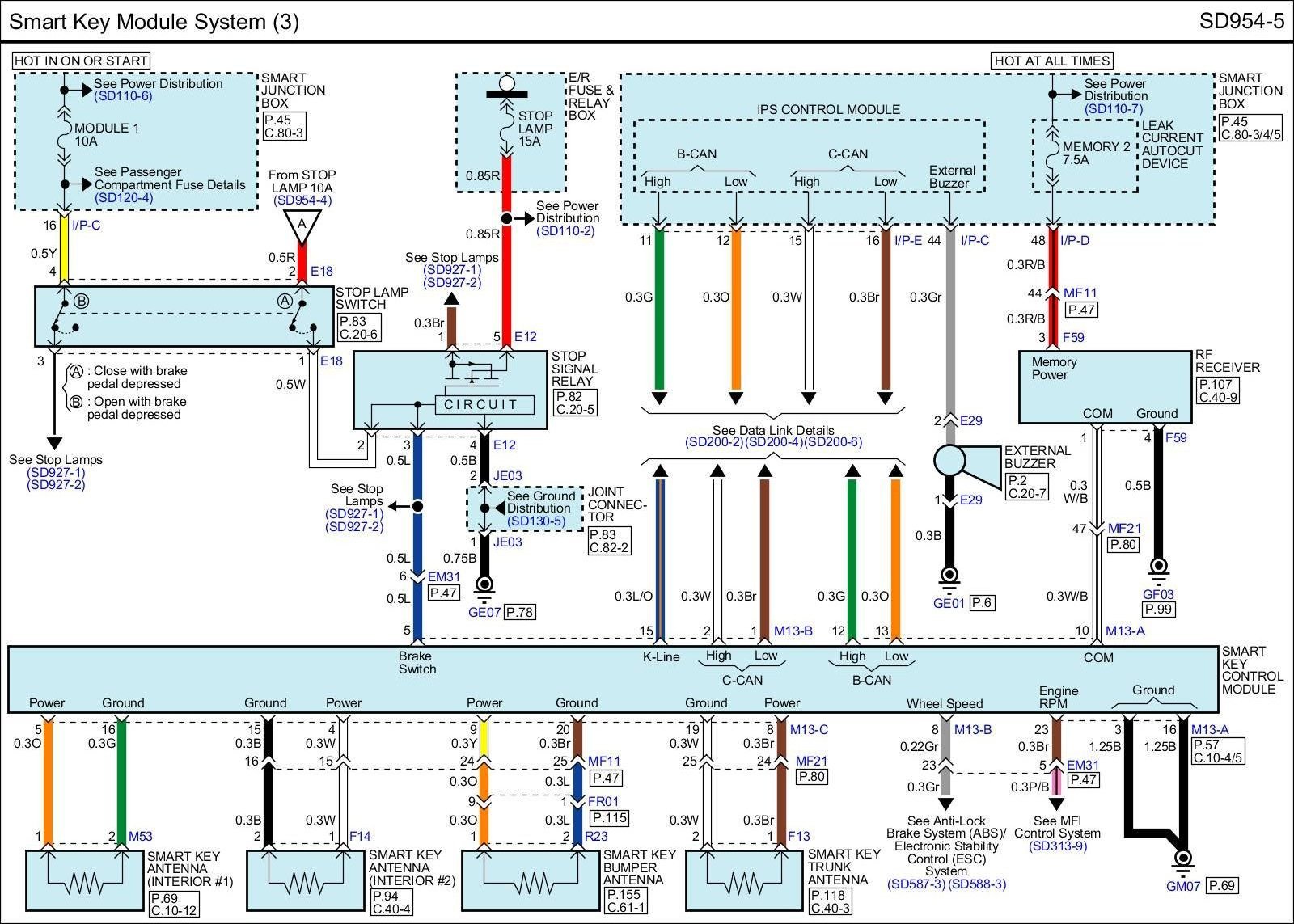

SD954-5 Smart Key Module System (3):

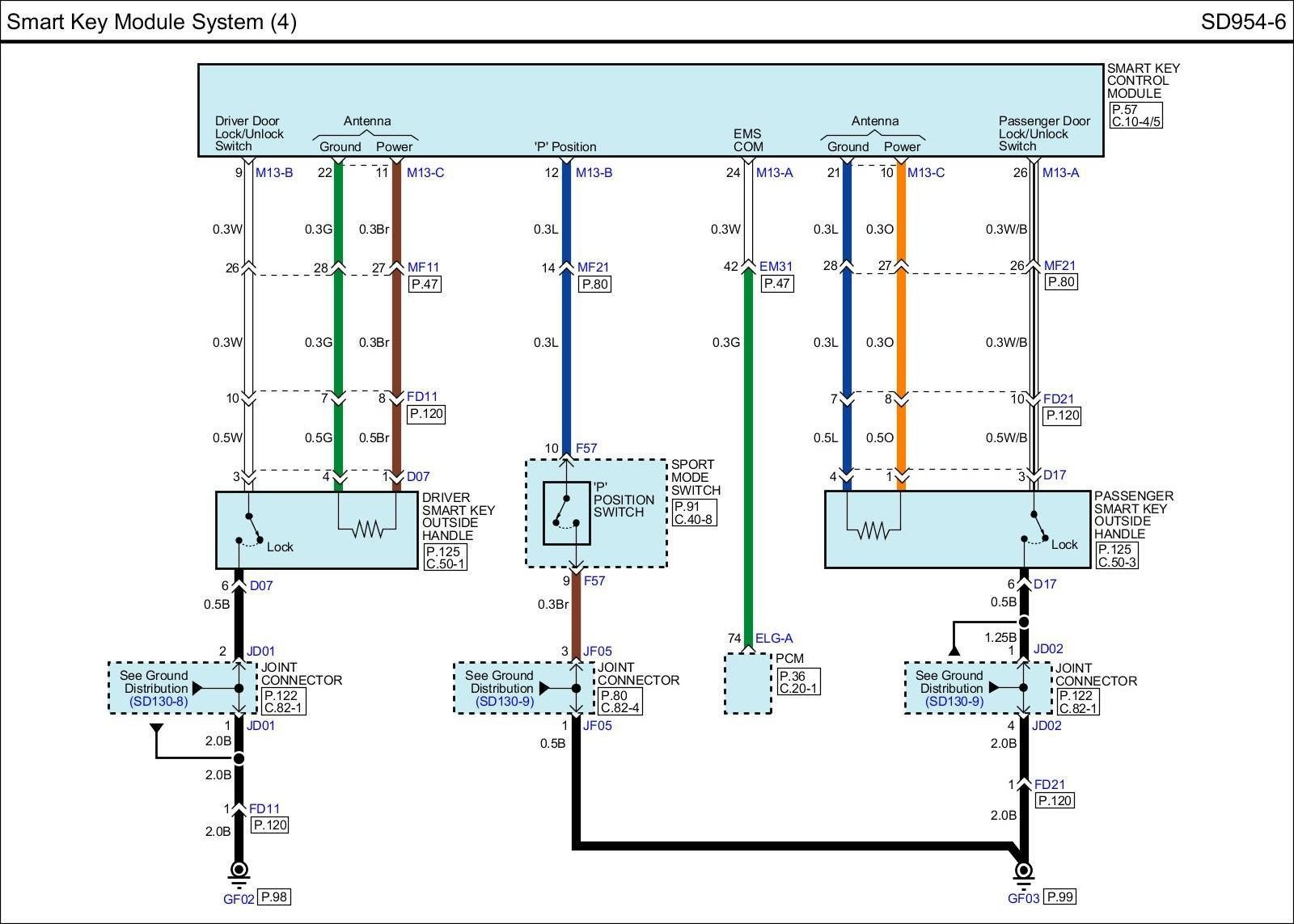

SD954-6 Smart Key Module System (4):

Diagrams: Other diagrams referred to by SD number (i.e SD130-4, etc.) within these diagrams can be found at Diagrams by Number. Diagrams By Number

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Component Locations
