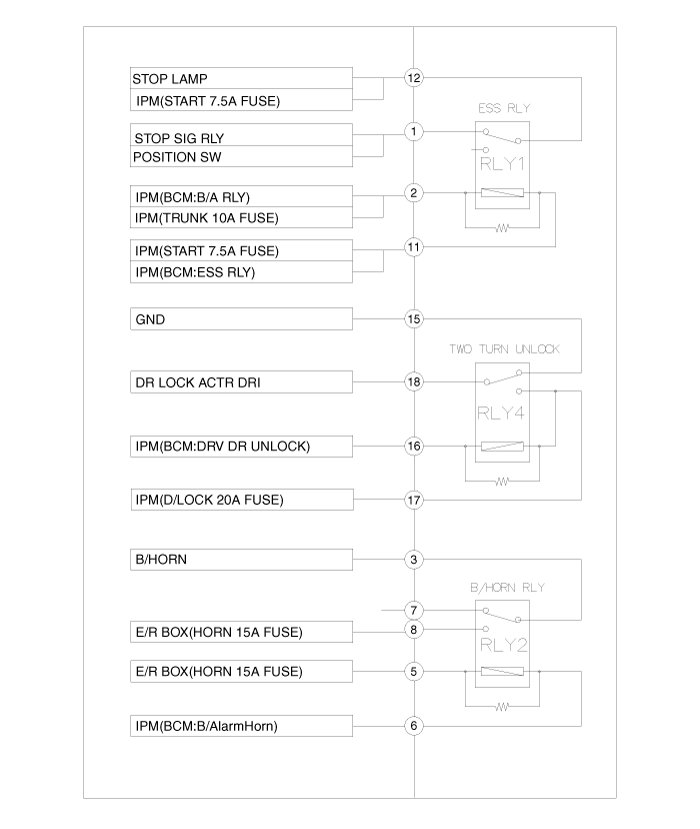

Relay Box: Application and ID
Circuit Diagram
Fuse & Relay Information

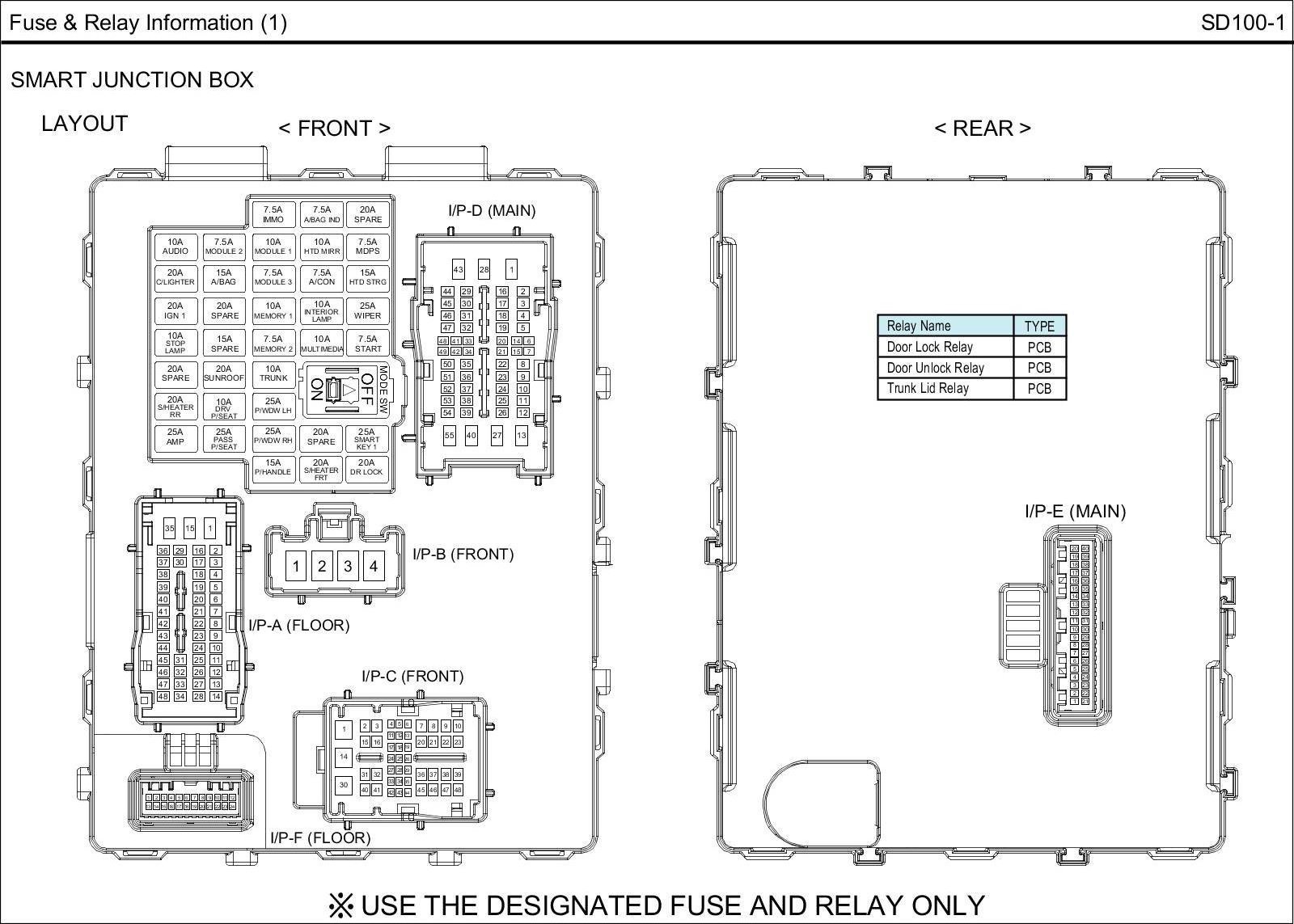

Smart Junction Box View:

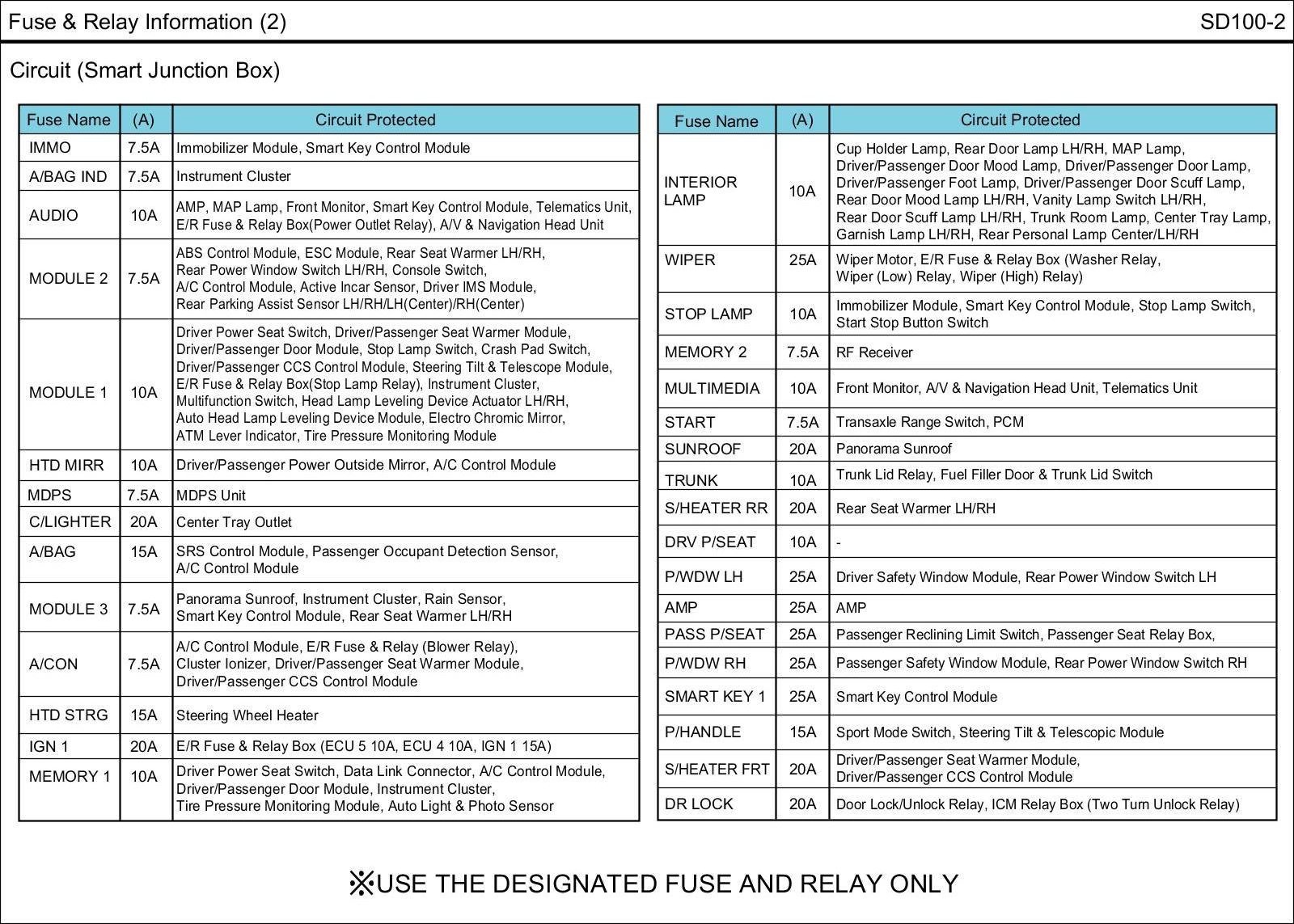

Smart Junction Box Circuit Details:
E/R Fuse & Relay Box View:

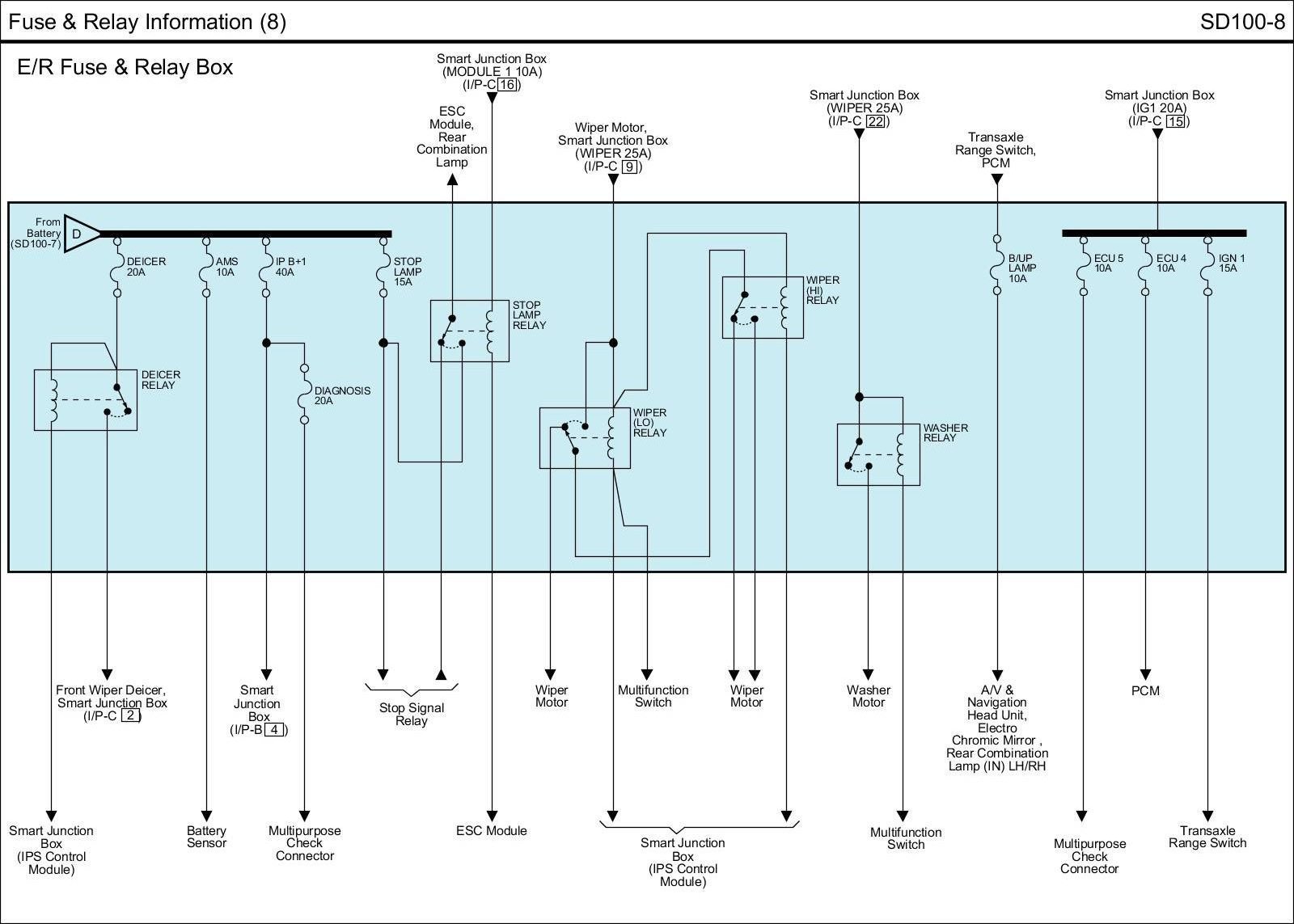

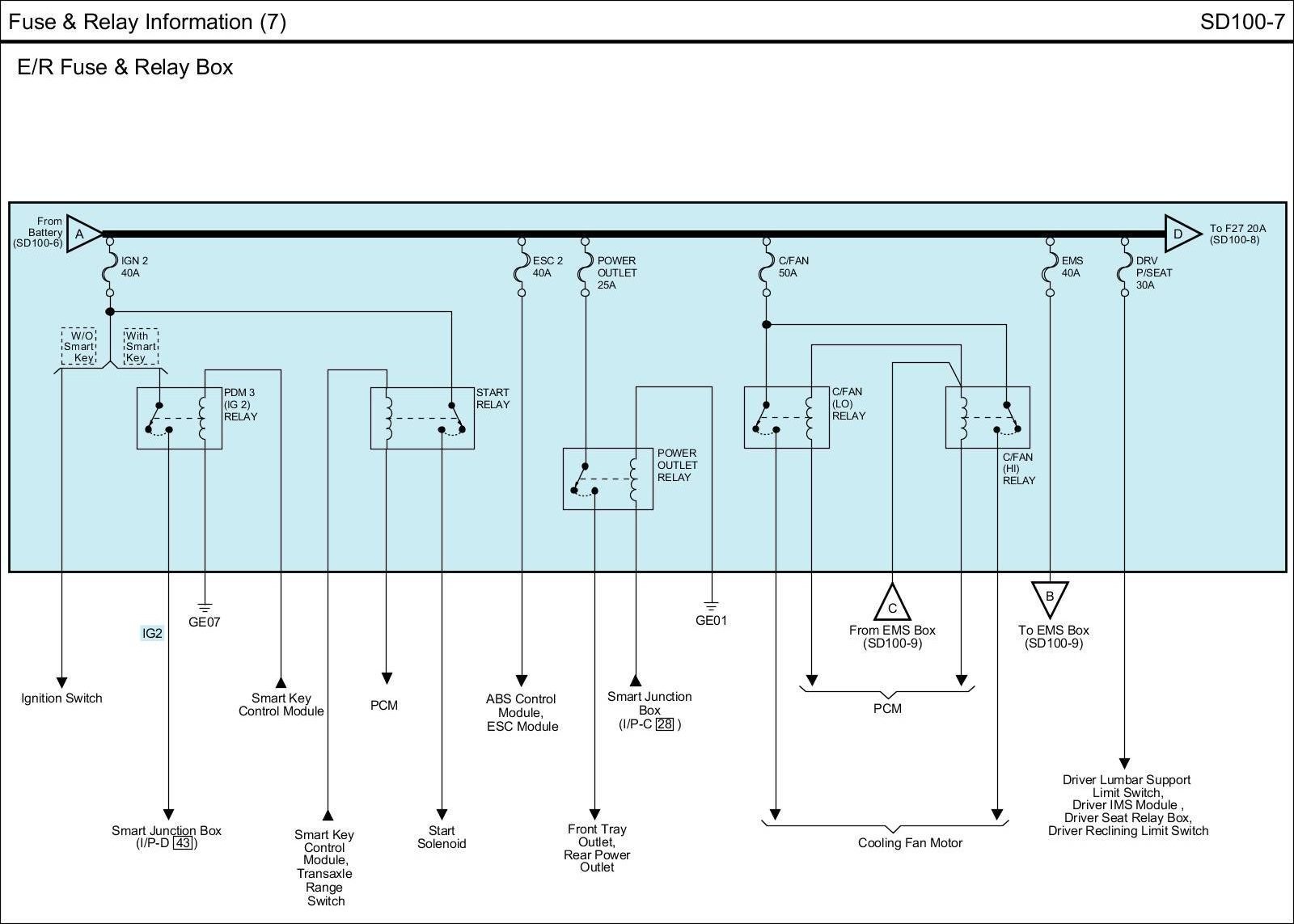

E/R Fuse & Relay Box Circuit Details:
EMS Box:
E/R Fuse & Relay Box View:
E/R Fuse & Relay Box View:
E/R Fuse & Relay Box View:
EMS Box View:

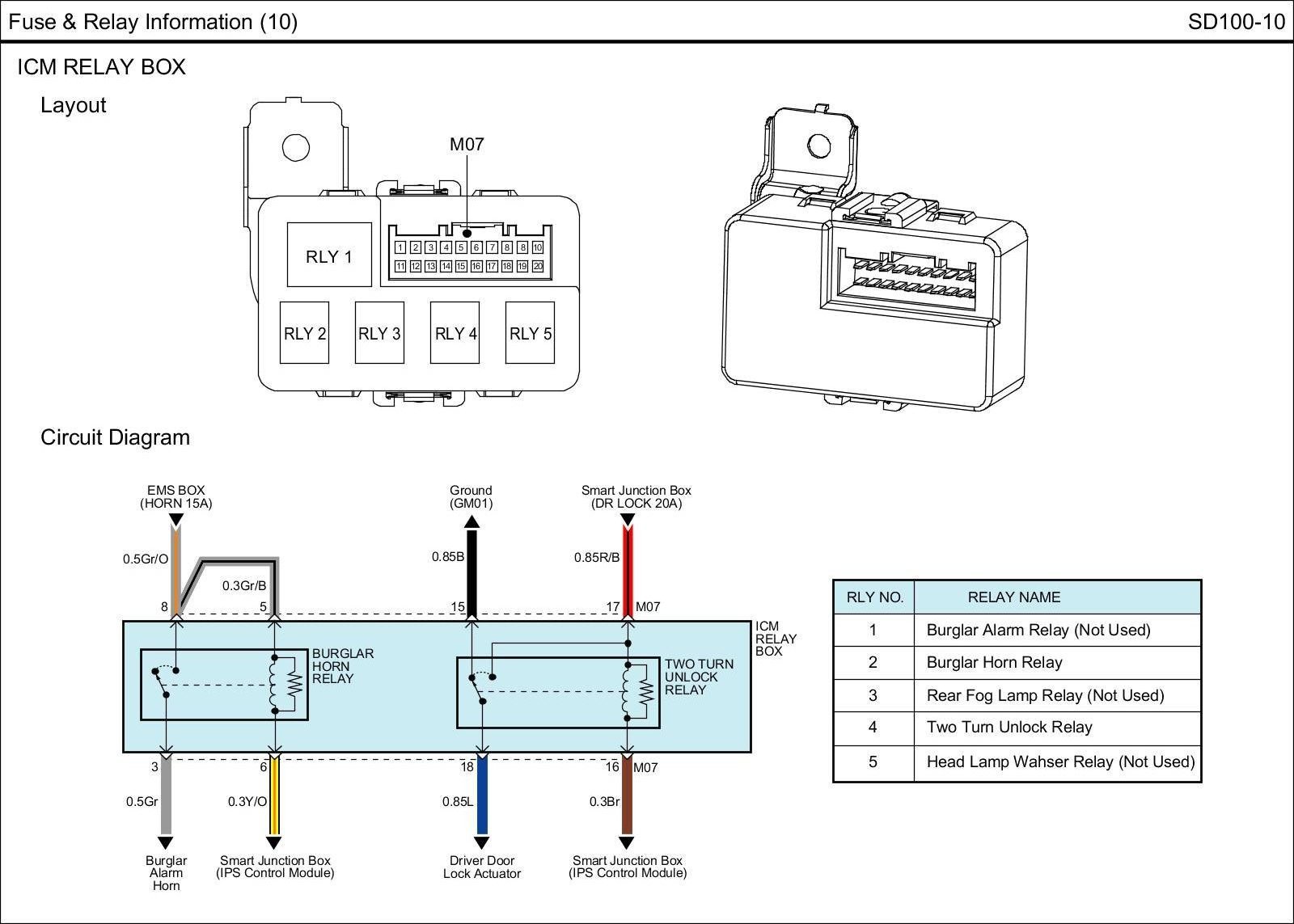

ICM Relay Box View:
