Accelerator Pedal Position Sensor: Testing and Inspection

Inspection

1. Connect the GDS on the Data Link Connector (DLC).
2. Turn the ignition switch ON.
3. Measure the output voltage of the APS 1 and 2 at C.T and W.O.T.

Specification:Refer to "Specification"

Removal

1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.

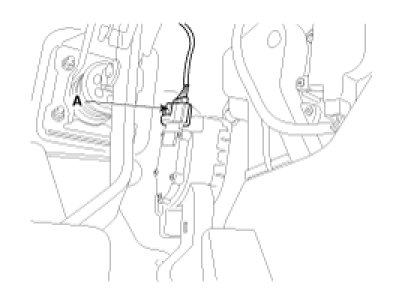

2. Disconnect the accelerator position sensor connector (A).




3. Remove the installation bolt (B) and nuts (C), and the remove the accelerator pedal module.










Installation

1. Installation is reverse of removal.

Accelerator pedal module installation bolt:
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)
Accelerator pedal module installation nut:
12.7 - 15.7 N.m (1.3 - 1.6 kgf.m, 9.4 - 11.6 lb-ft)
