Circuit Diagram





BCM Connector Terminals

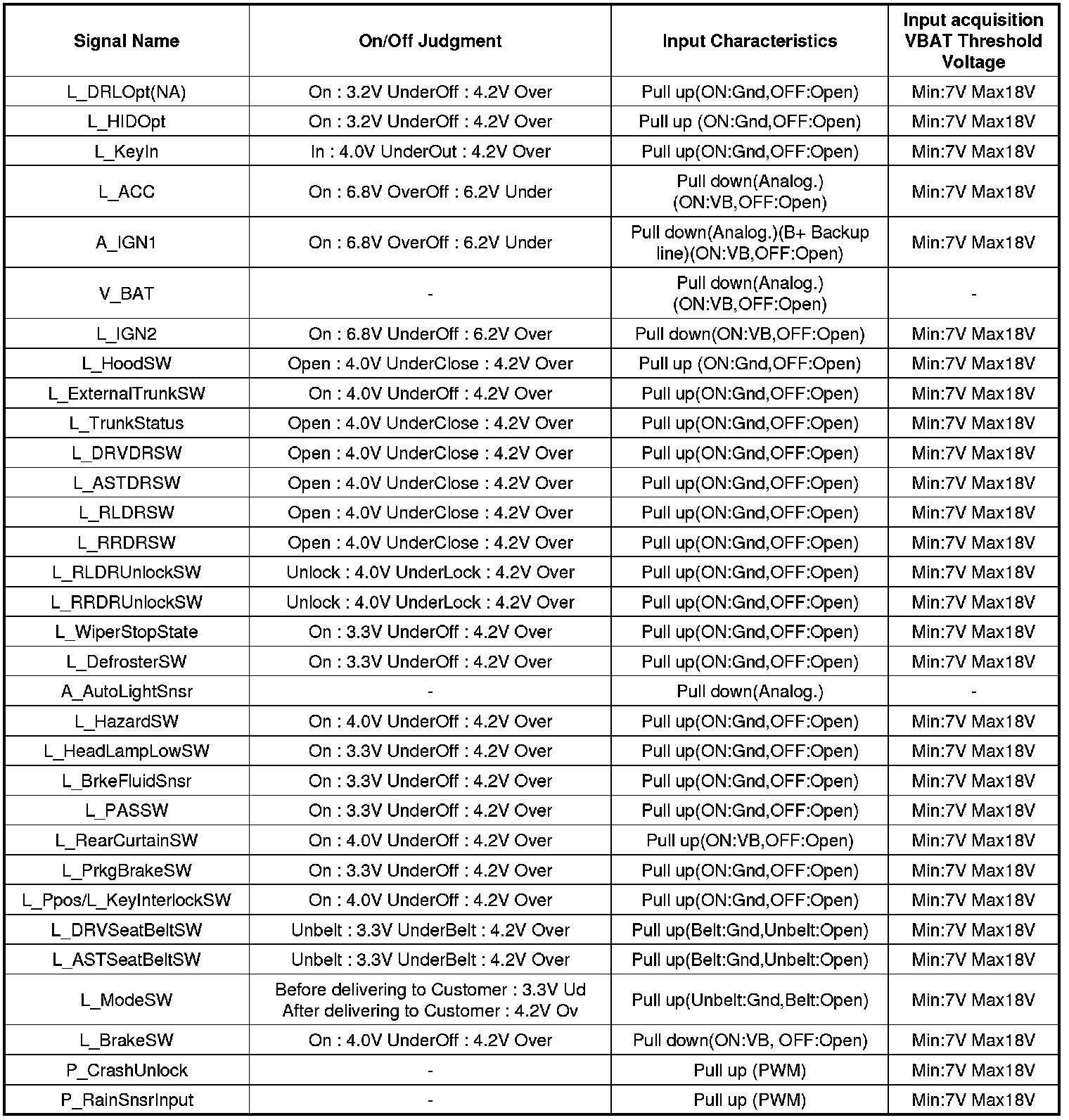

BCM(IPM) Input Signal SPEC

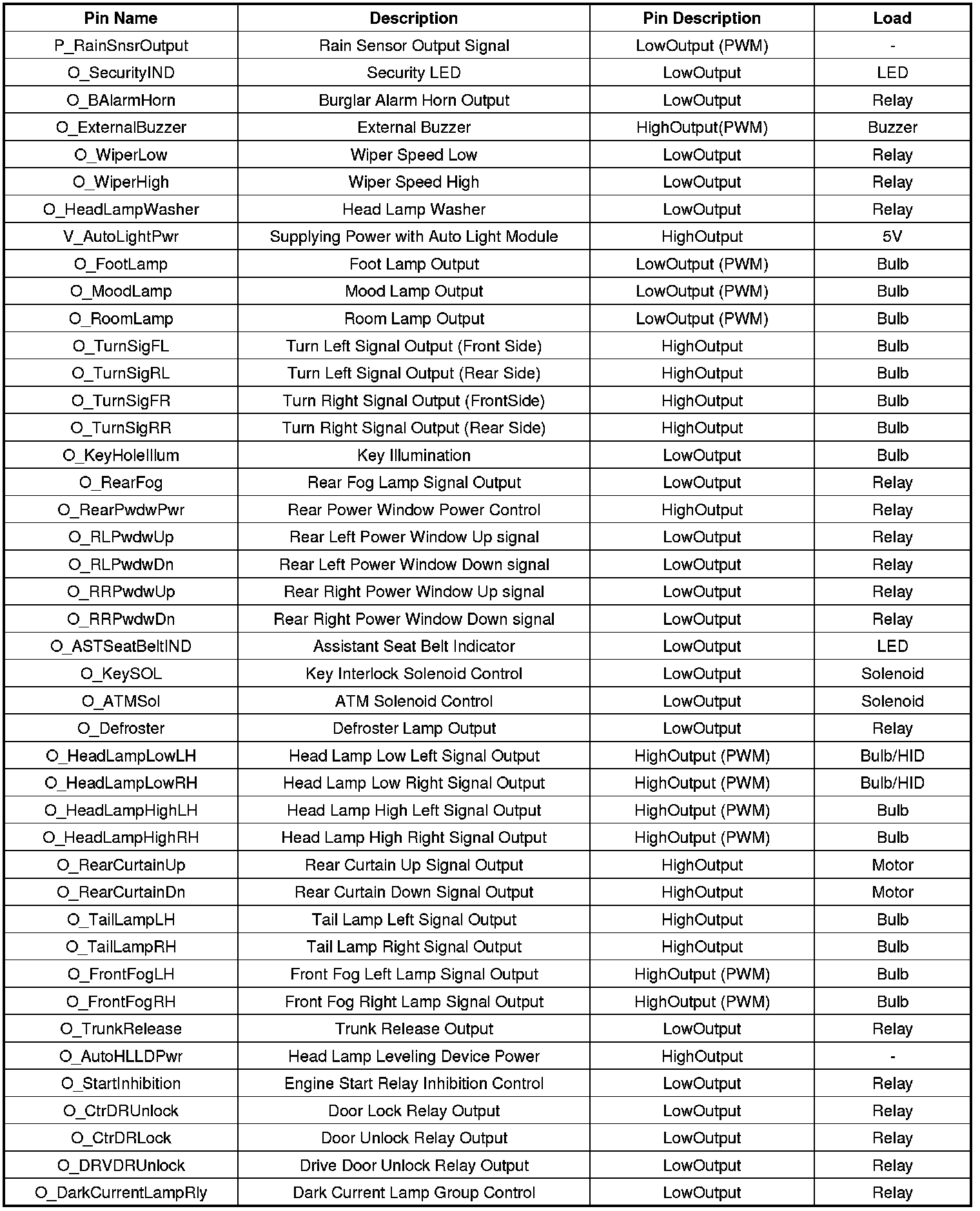

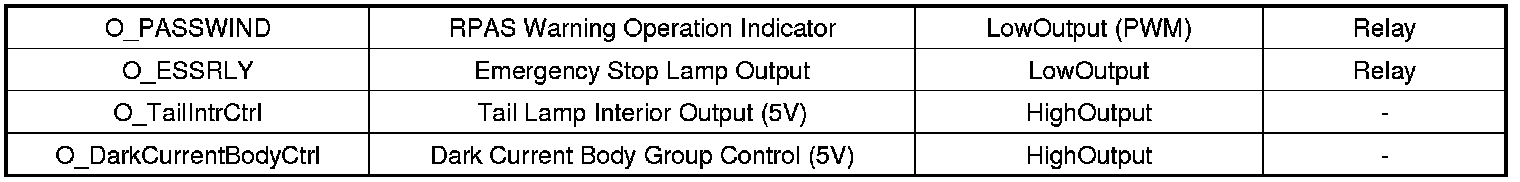

BCM(IPM) Output Signal SPEC










Block Diagram





Circuit Diagram
