Electrical Diagrams





ECM Terminal And Input/Output signal

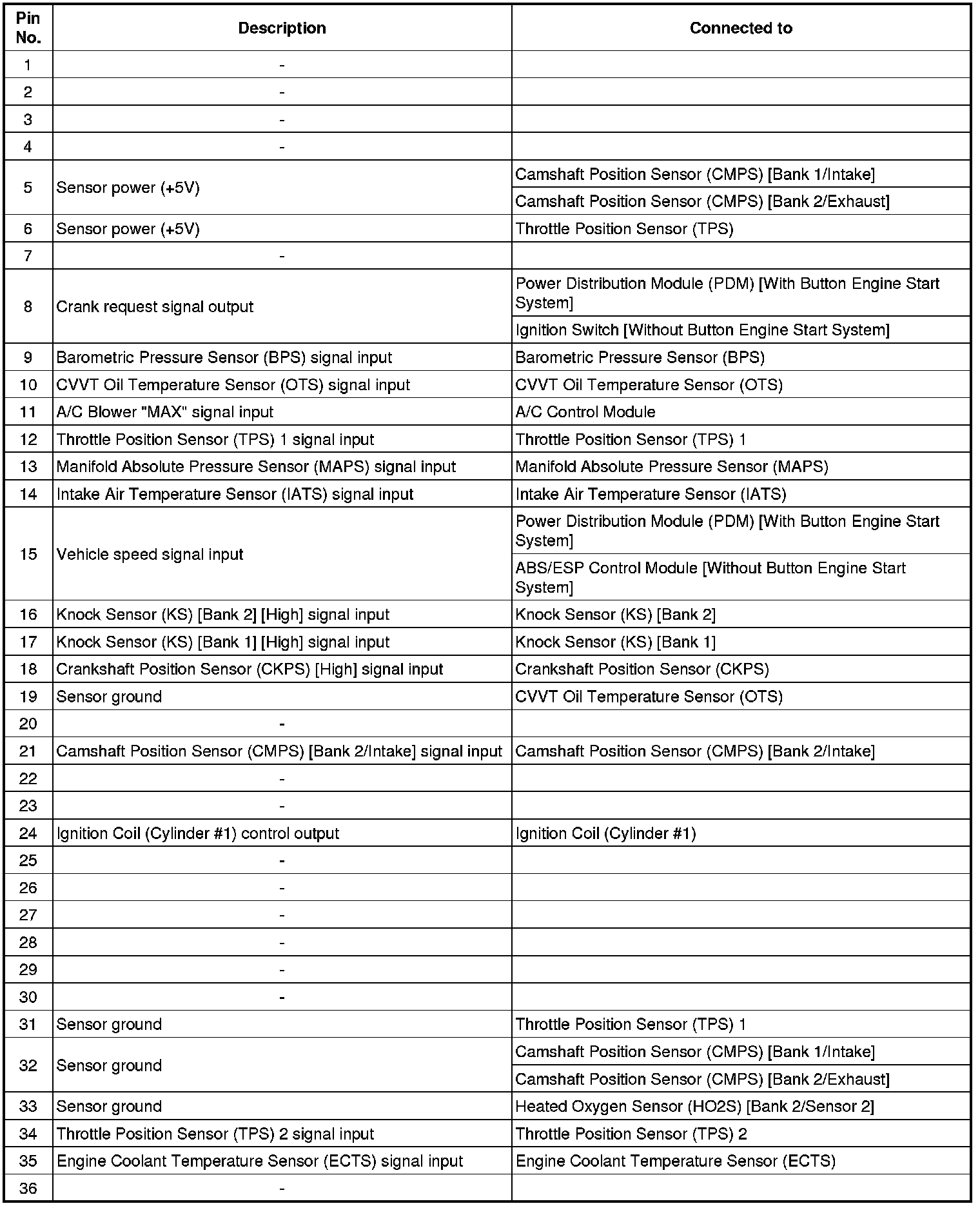

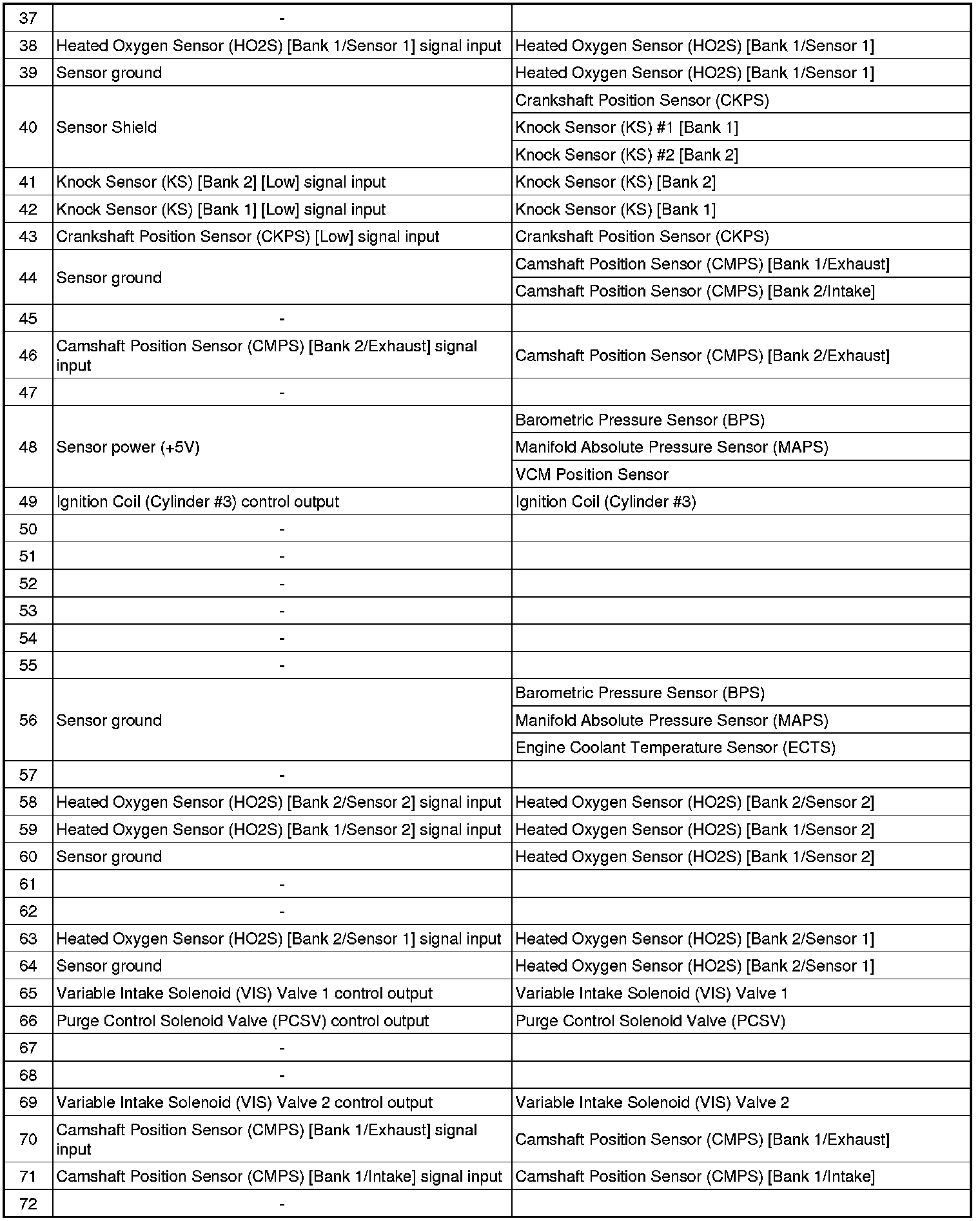

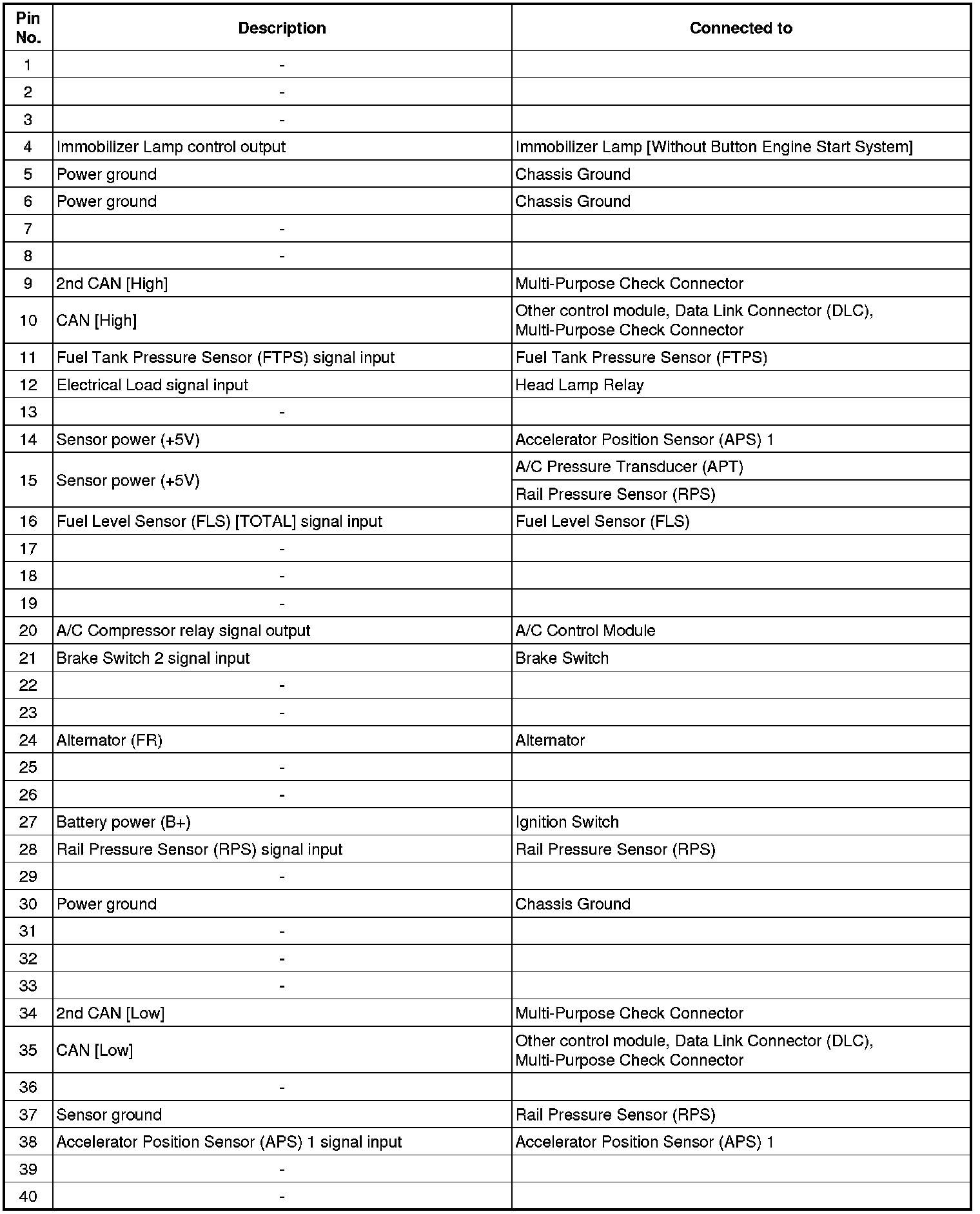

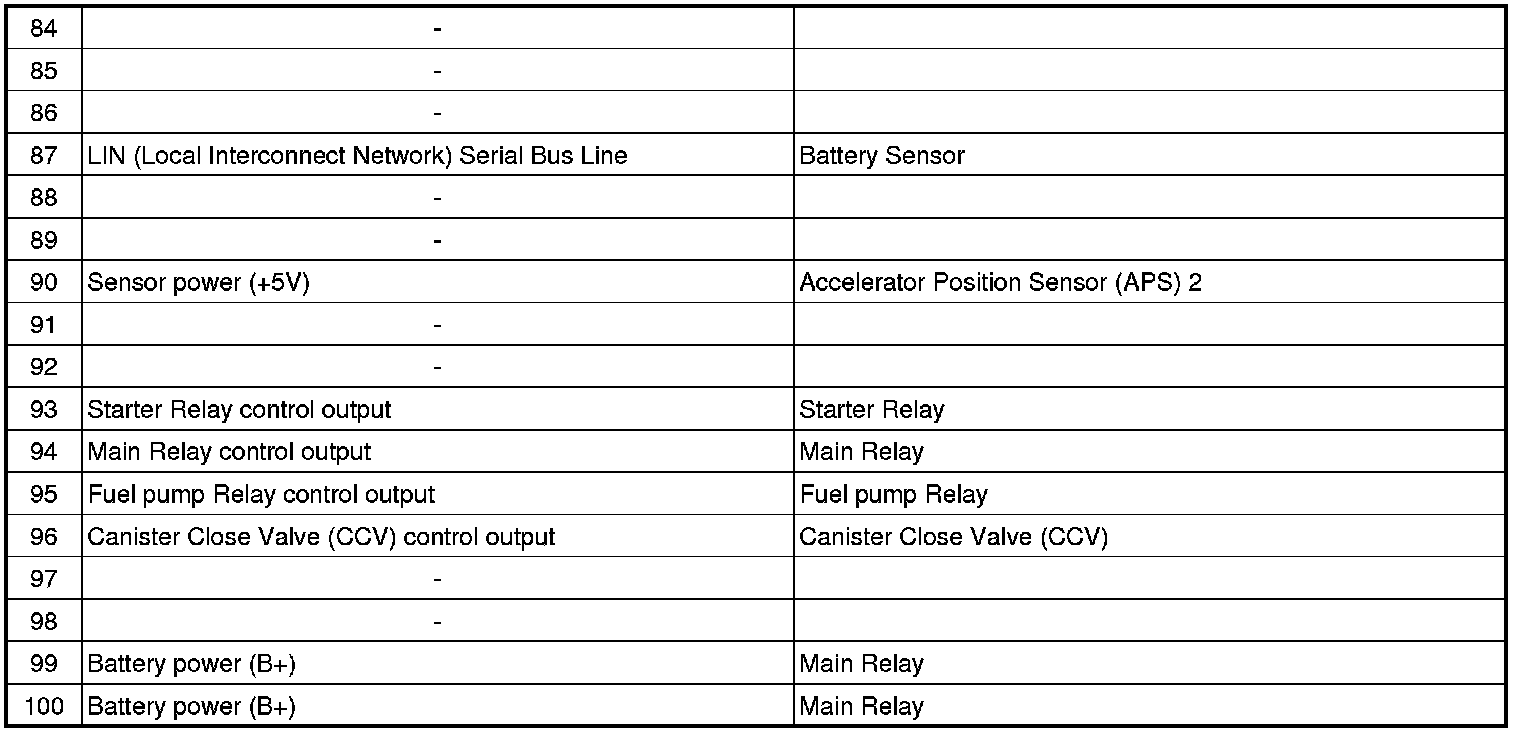

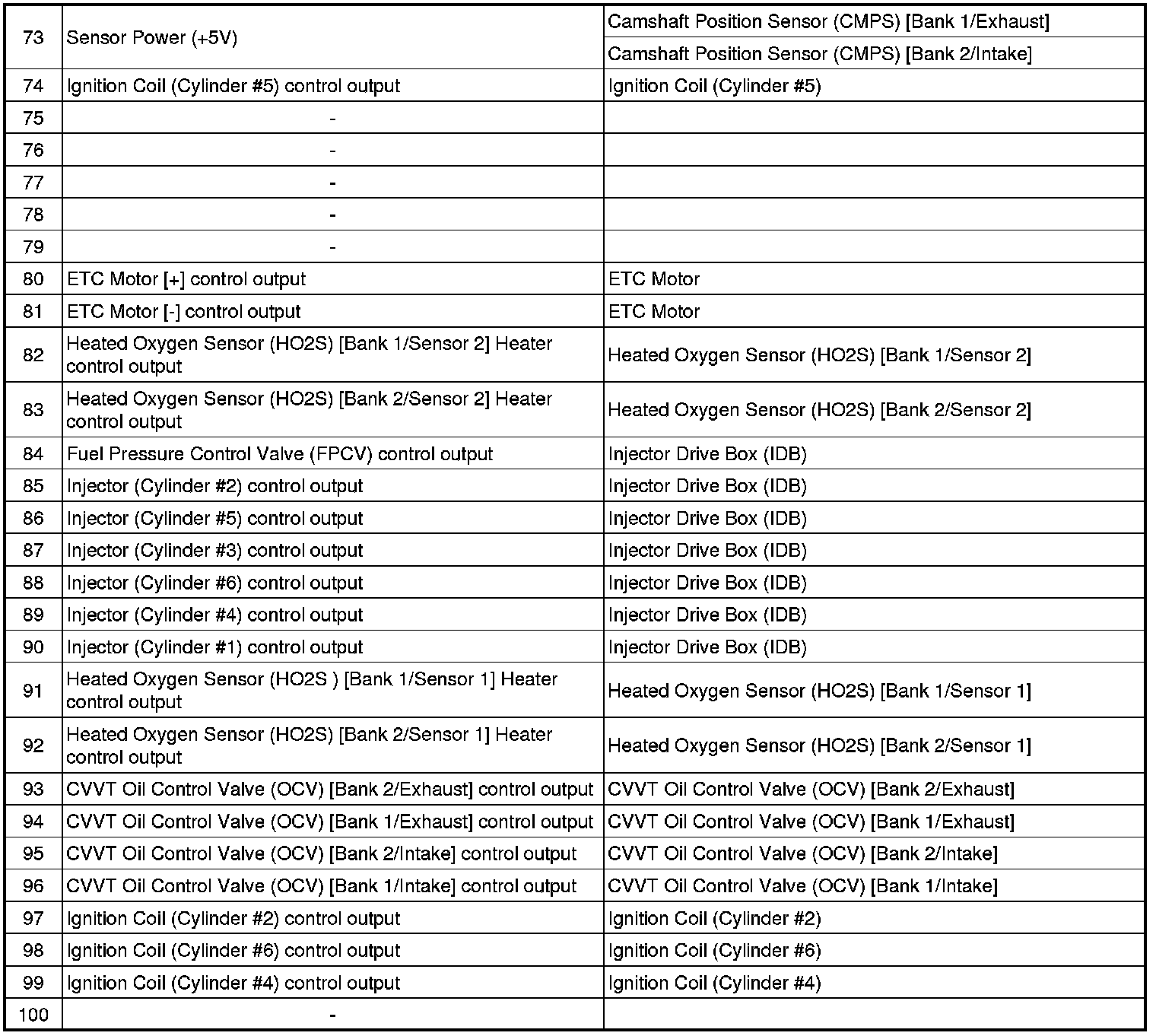

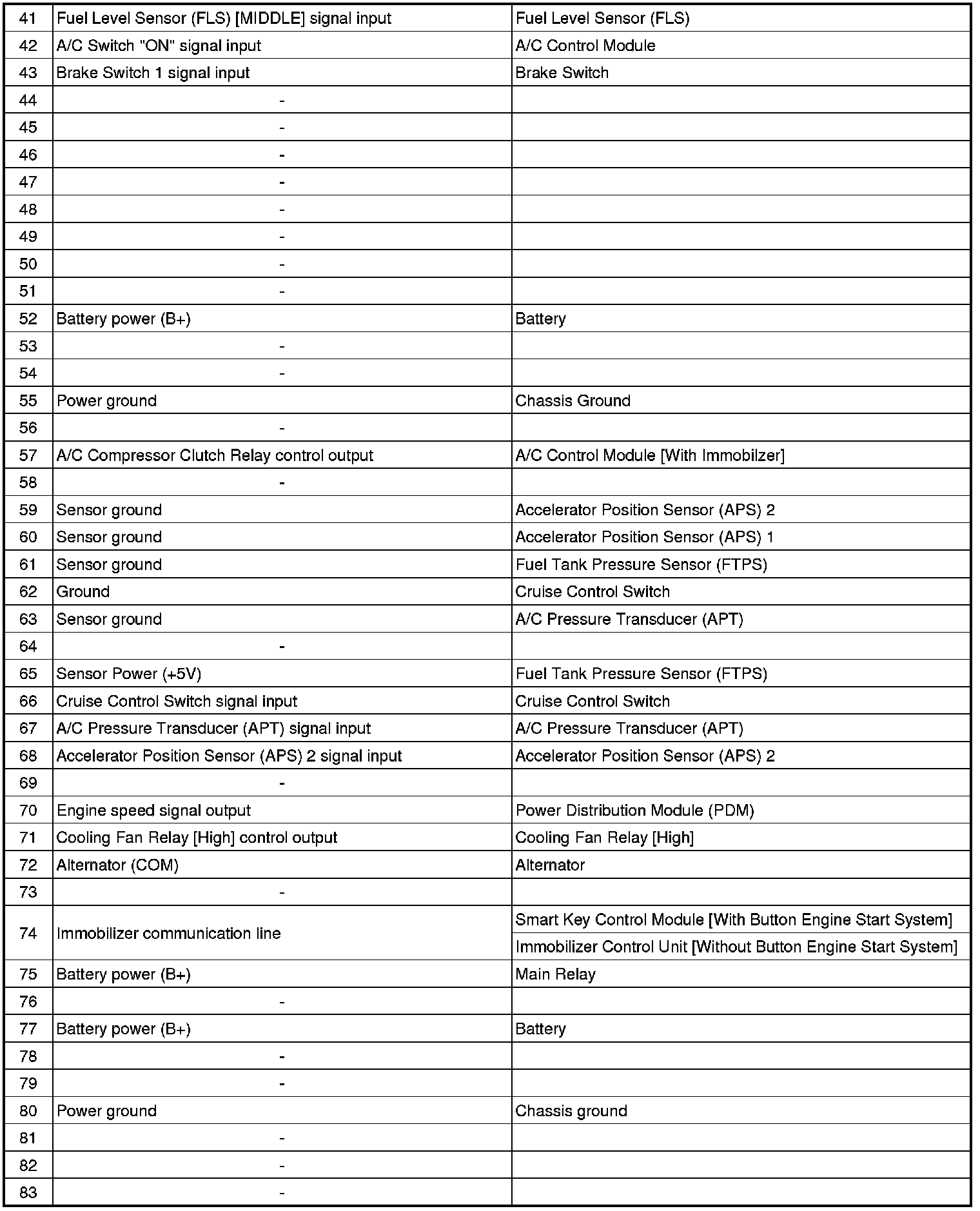

ECM Terminal Function

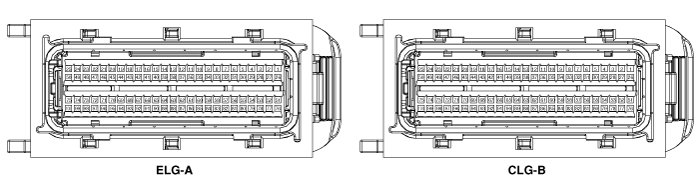

Connector [ELG-A]













Connector [CLG-B]

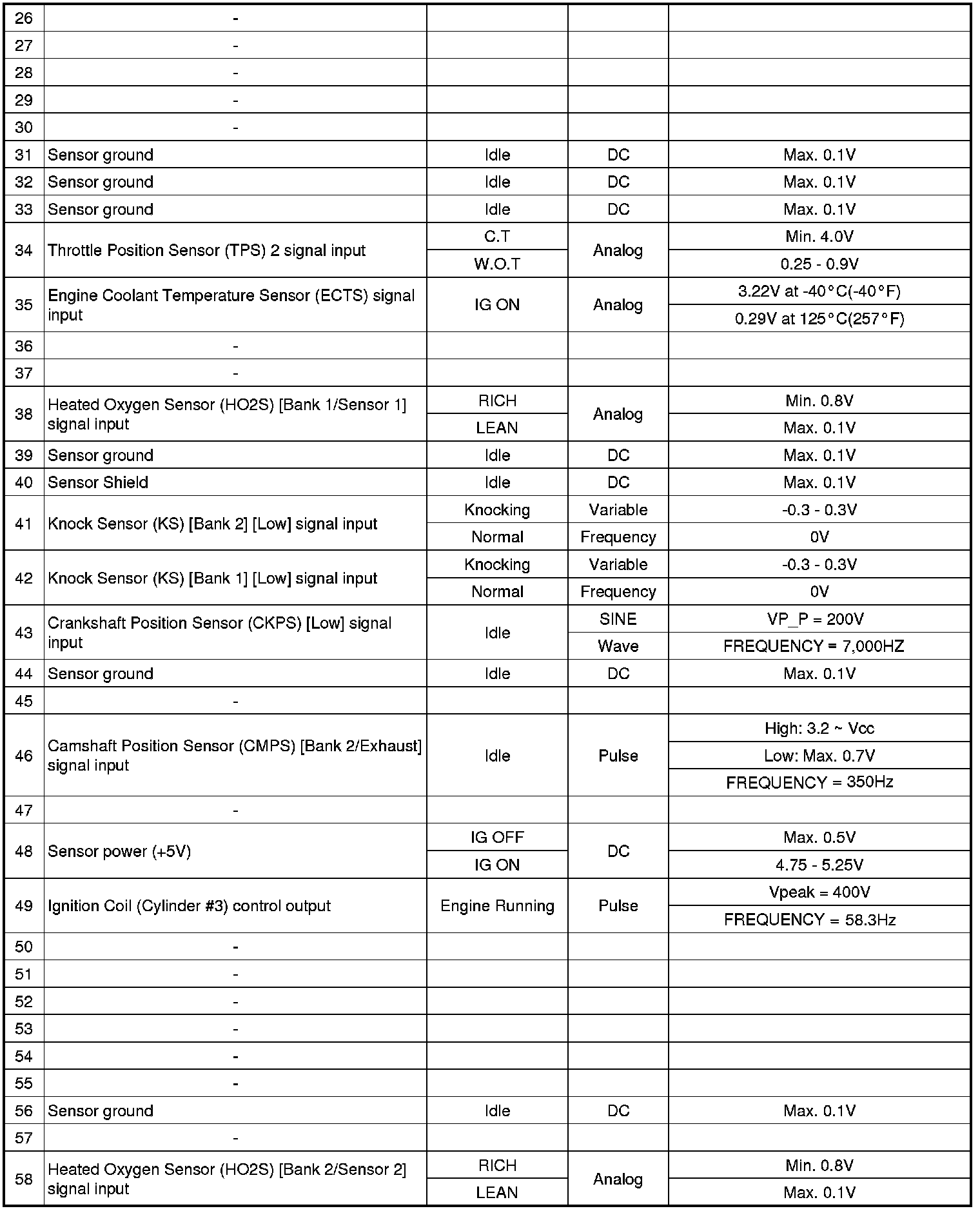

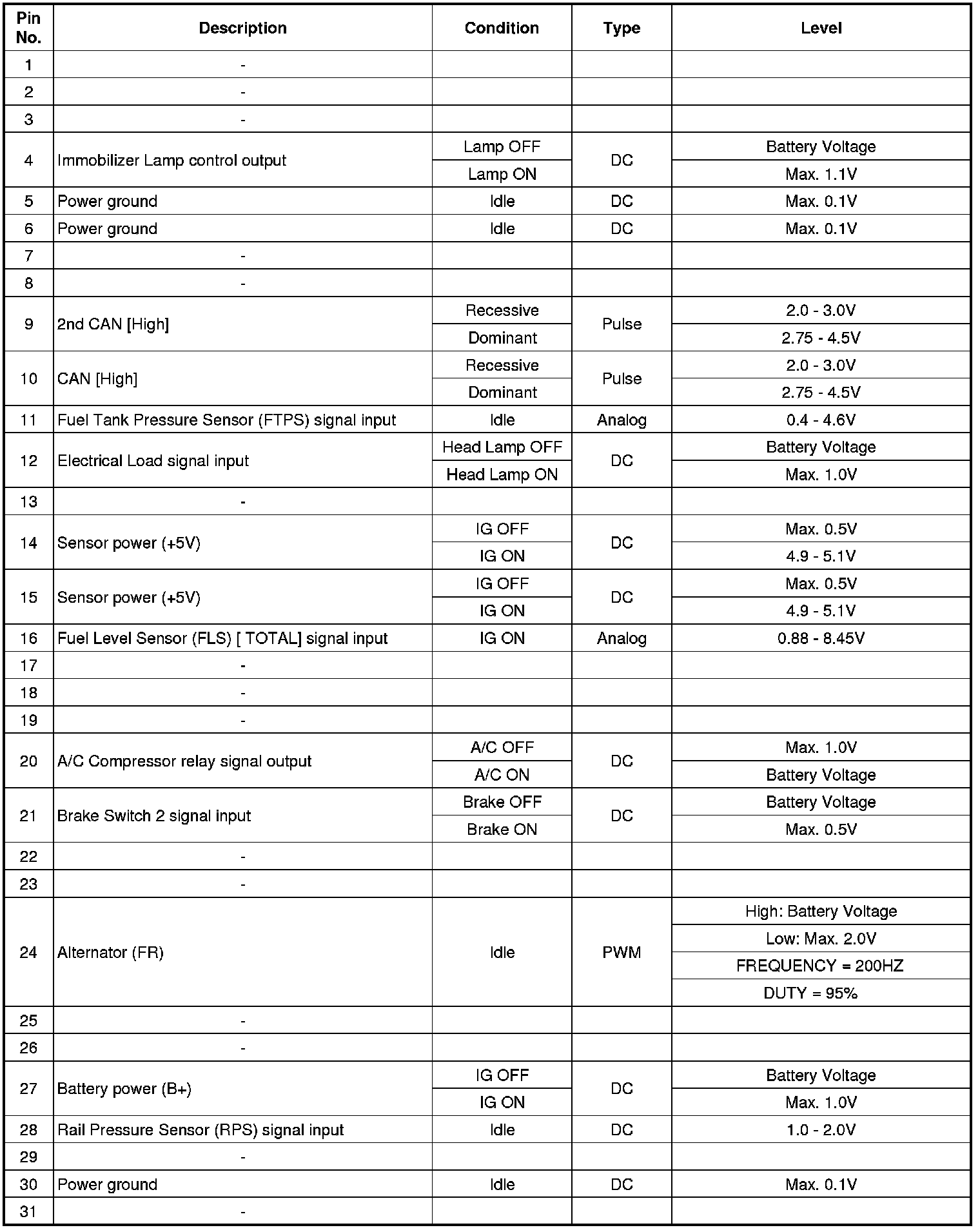

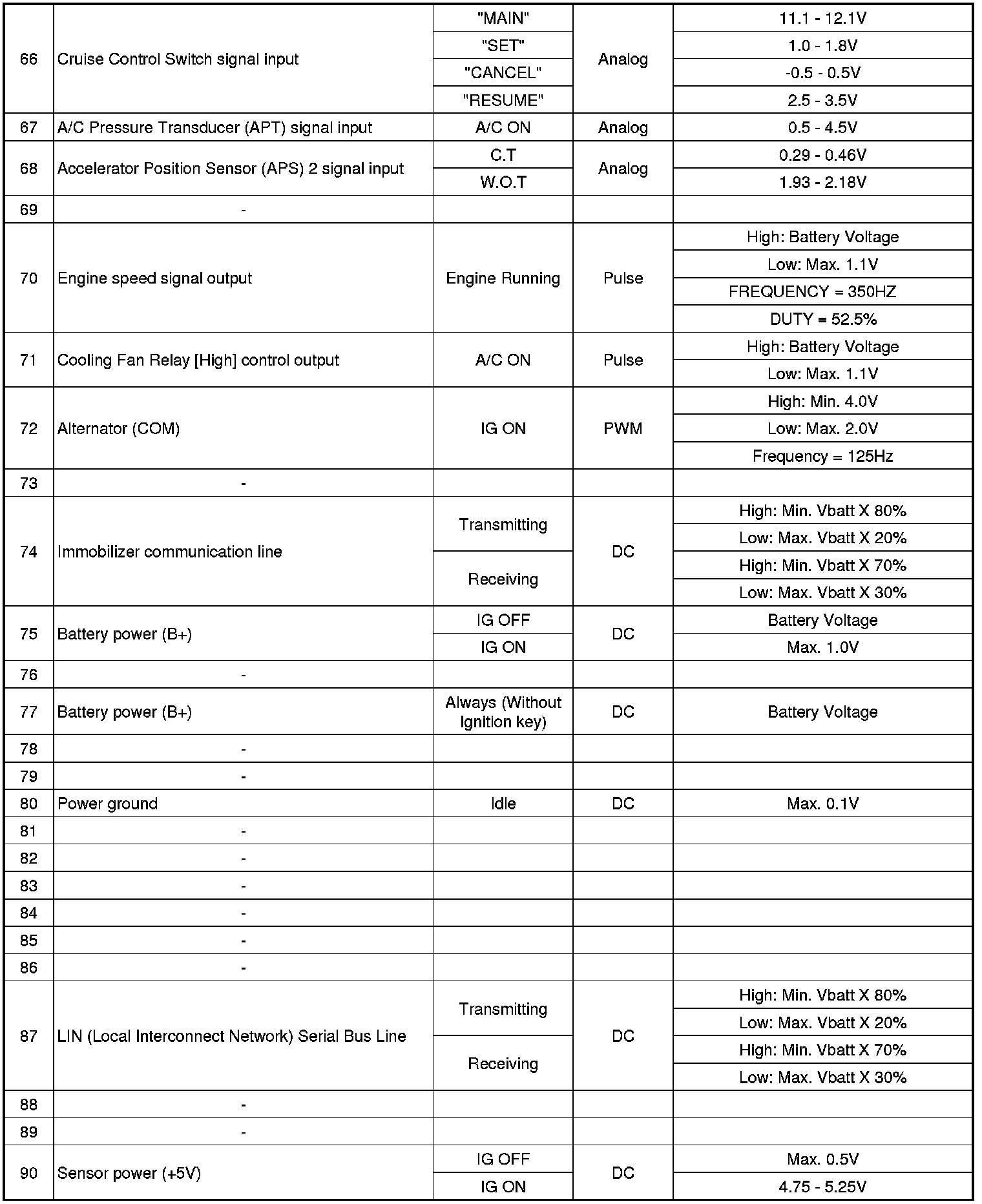

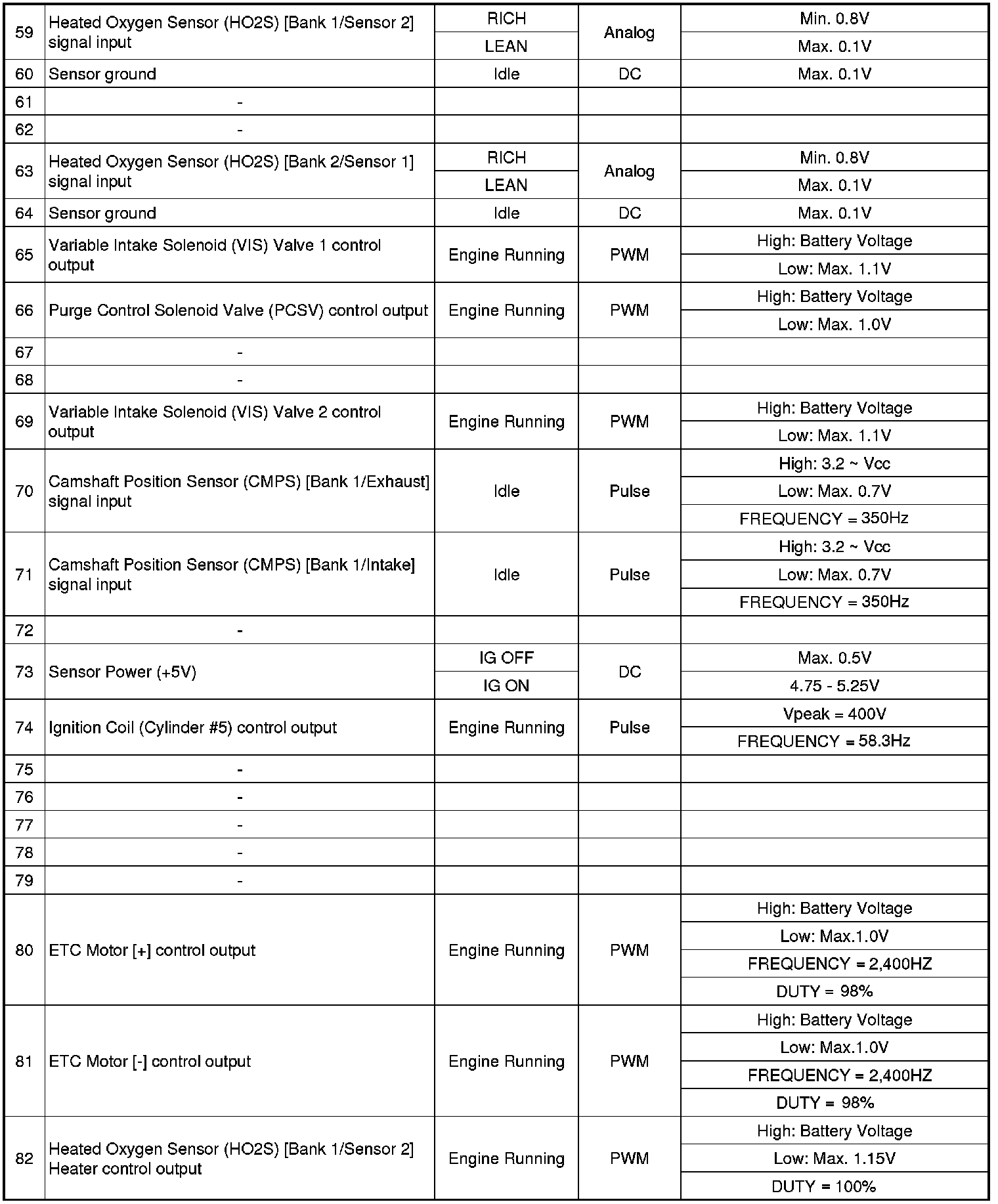

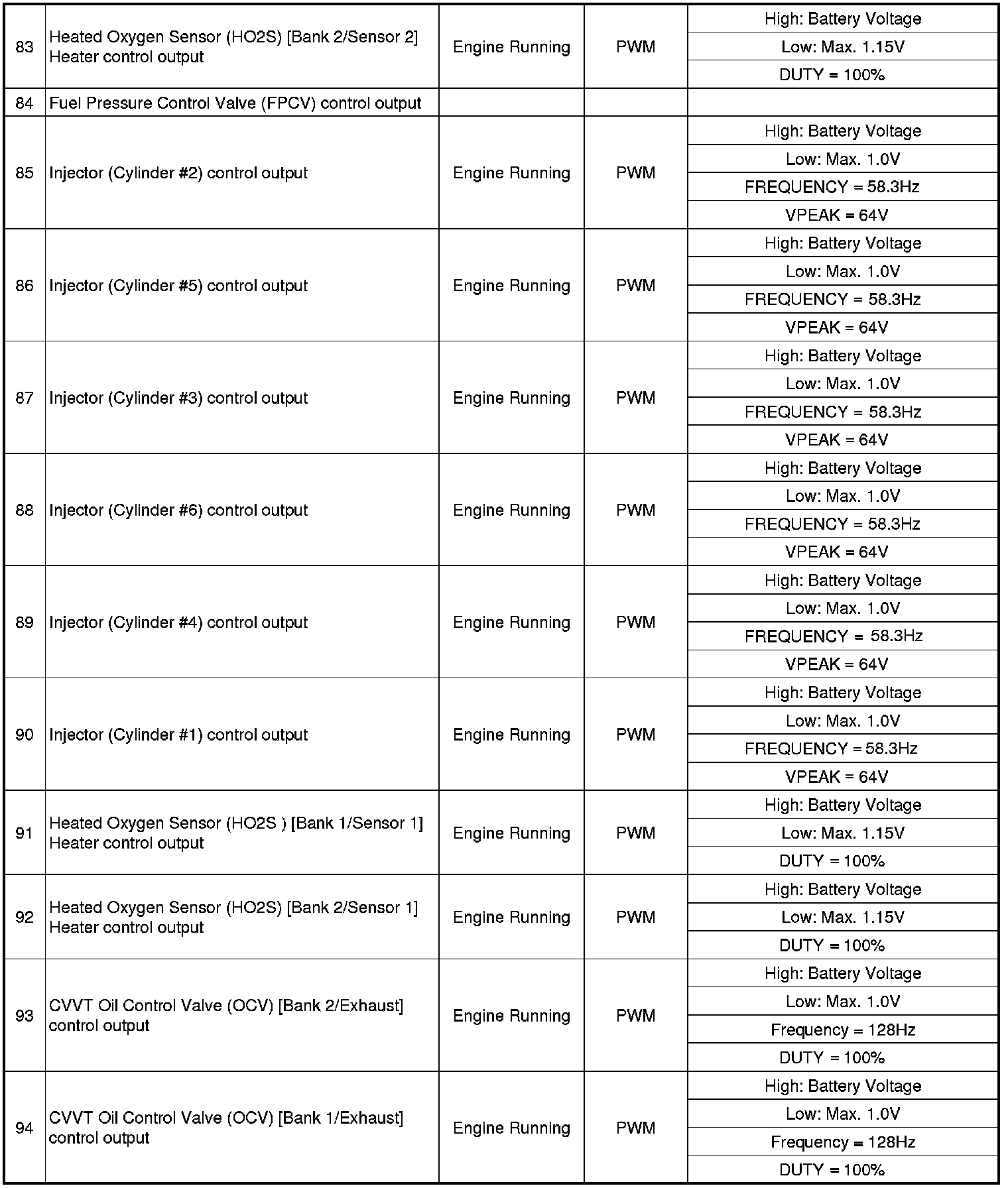

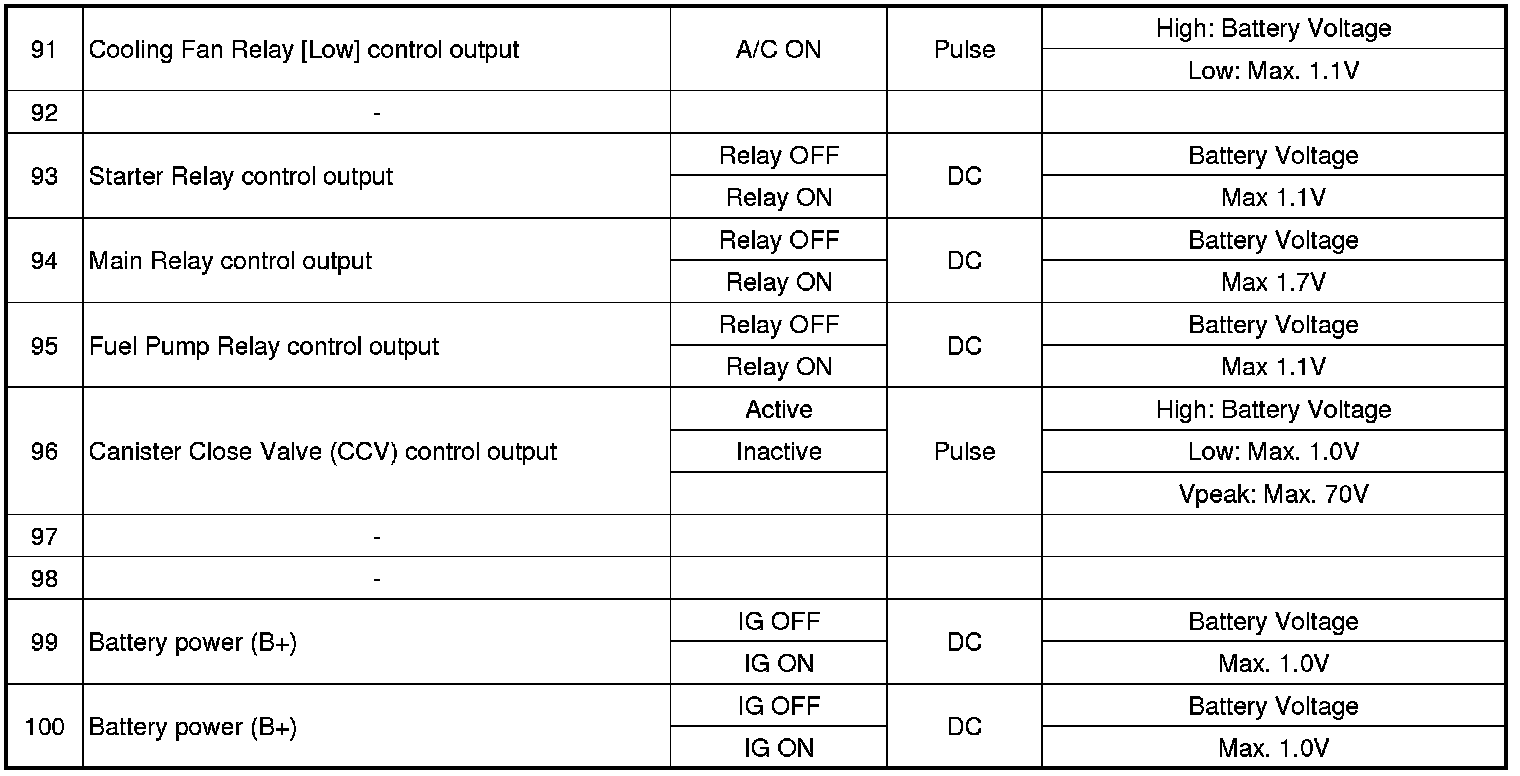

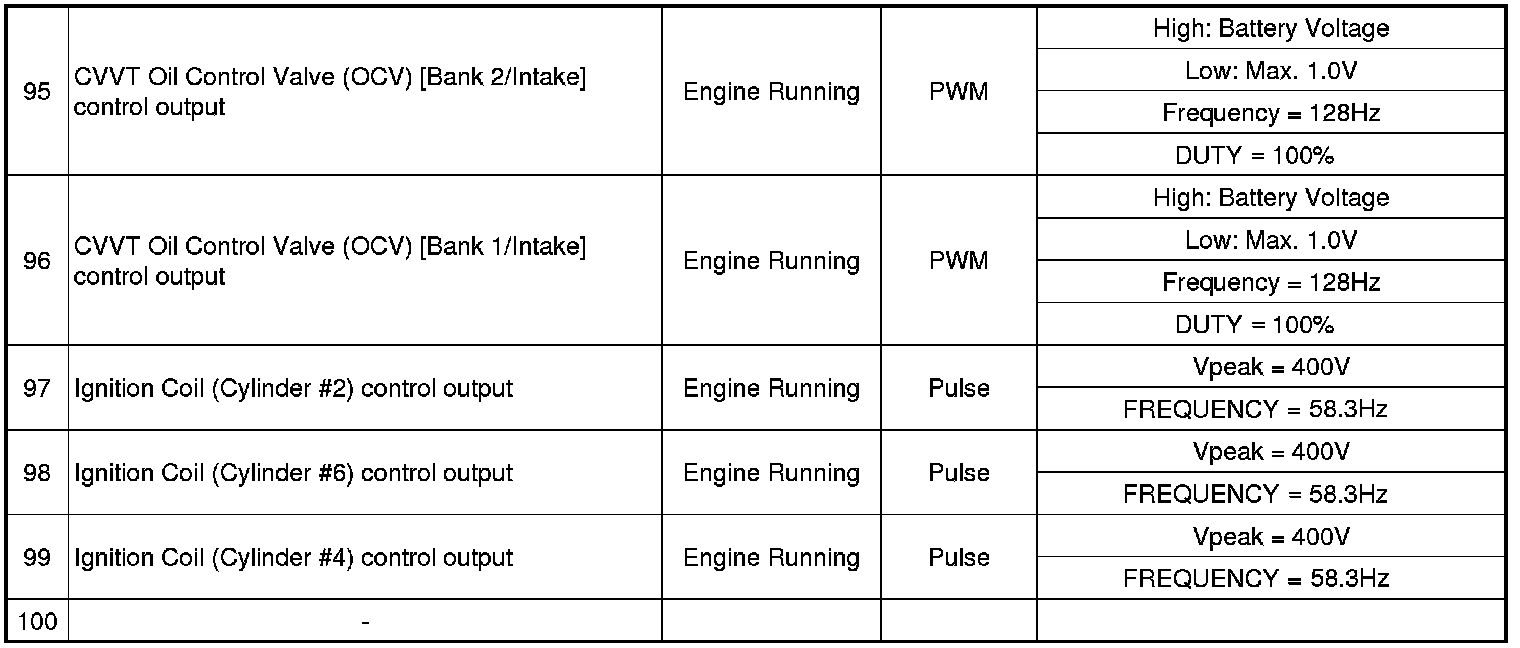

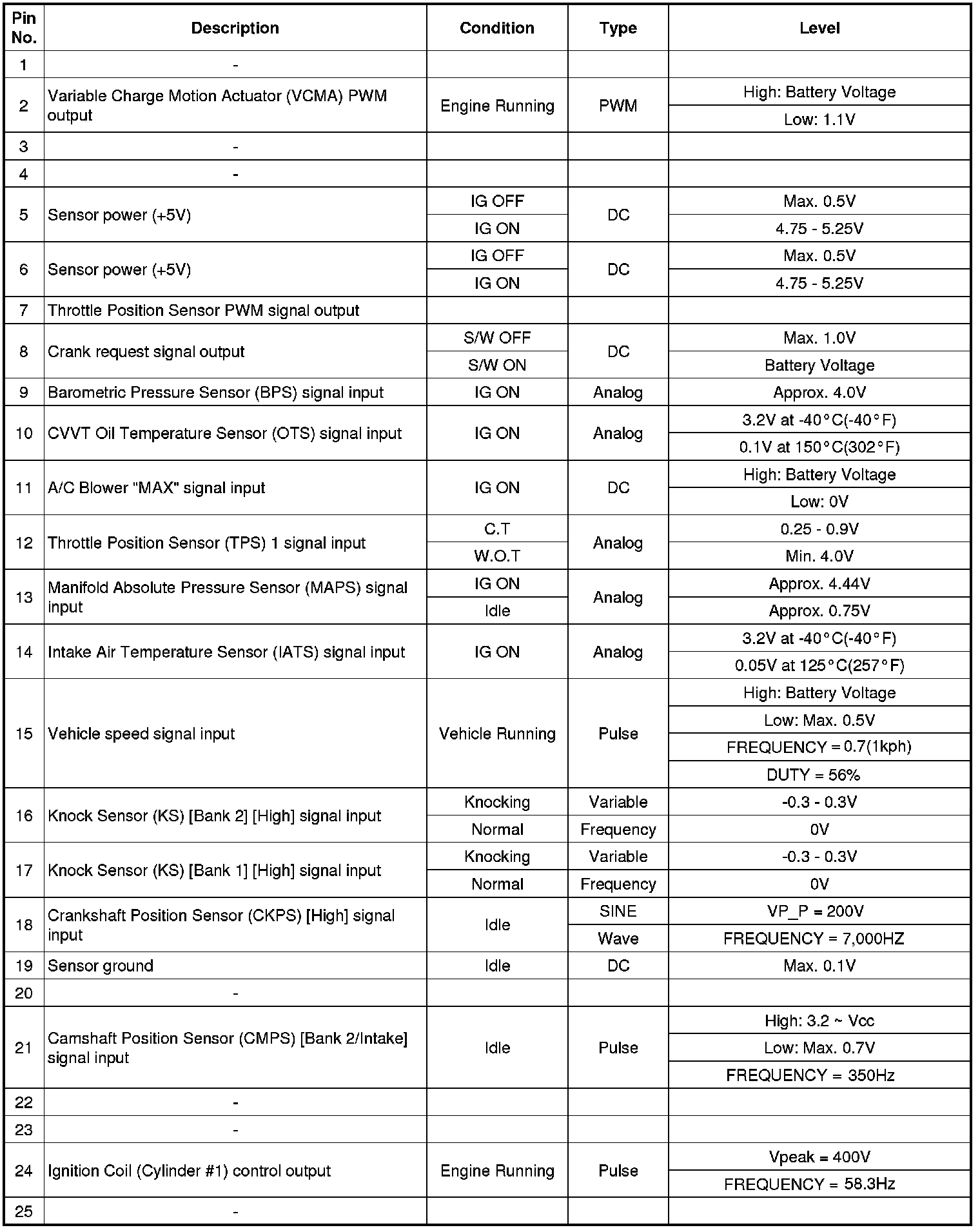

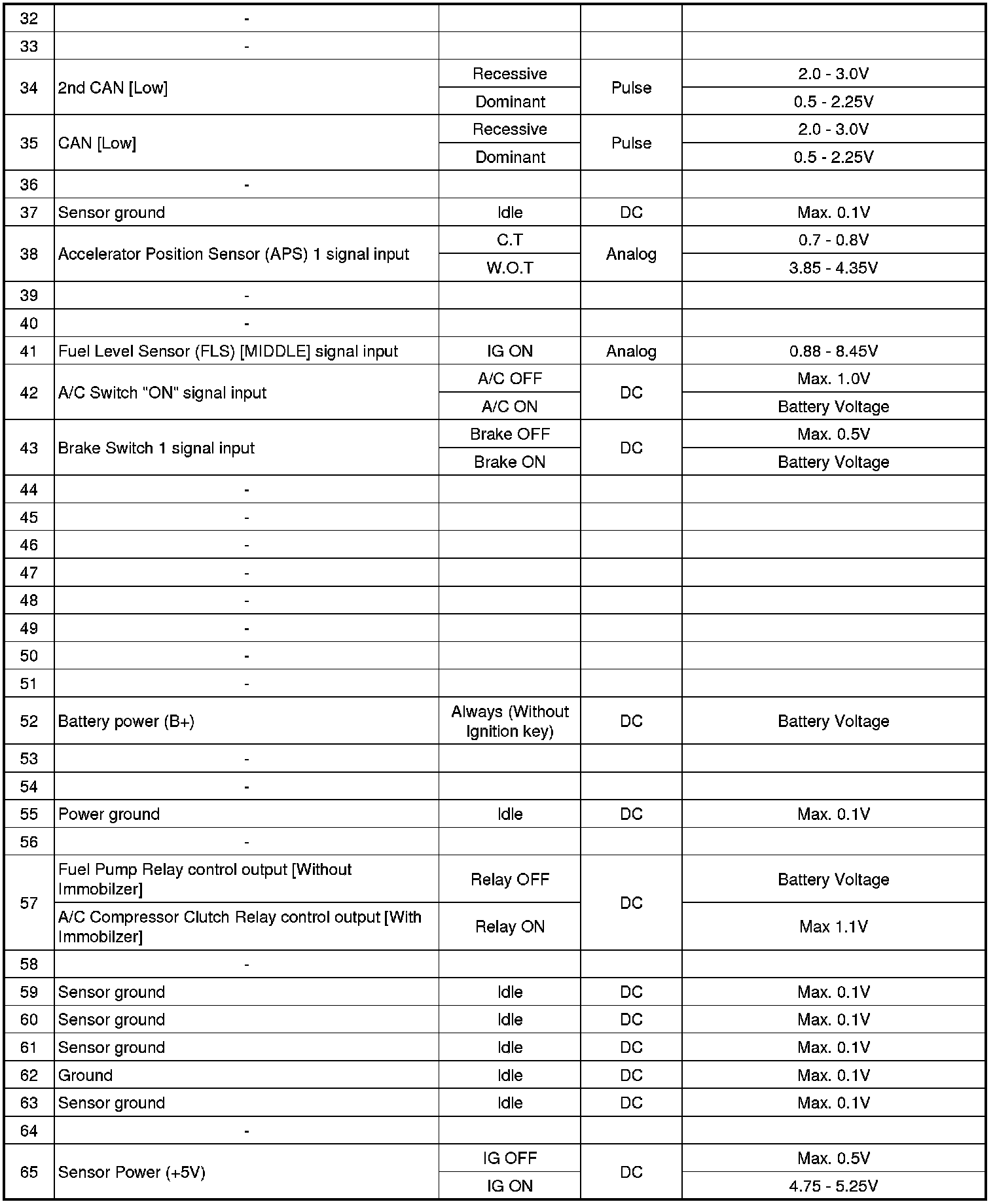

ECM Terminal Input/Output Signal
Connector [ELG-A]

















Connector [CLG-B]

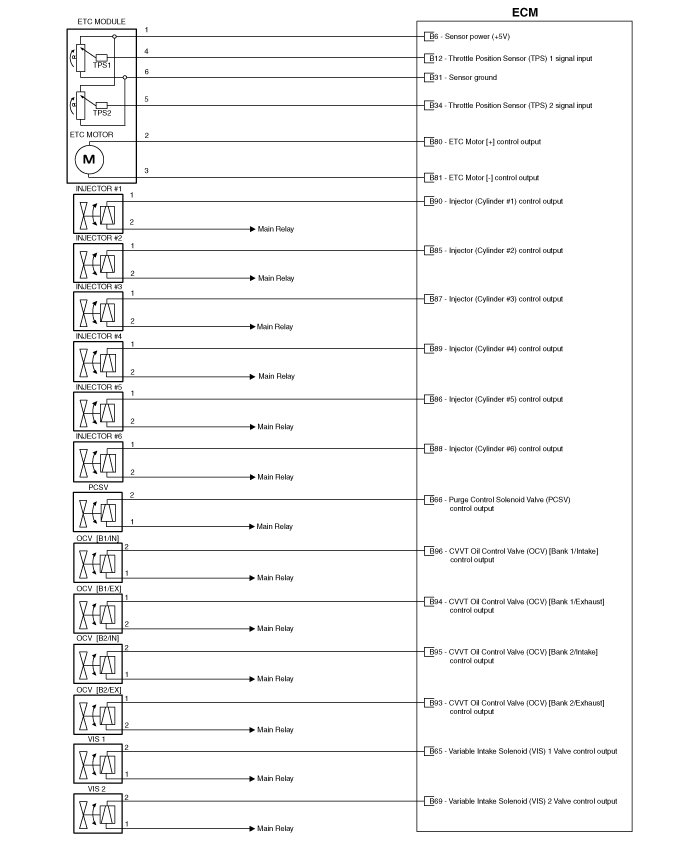

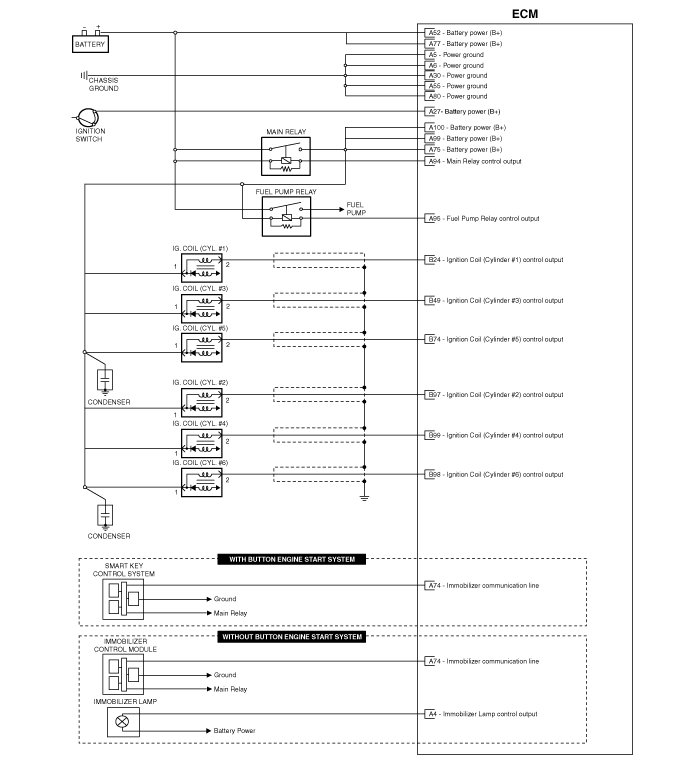

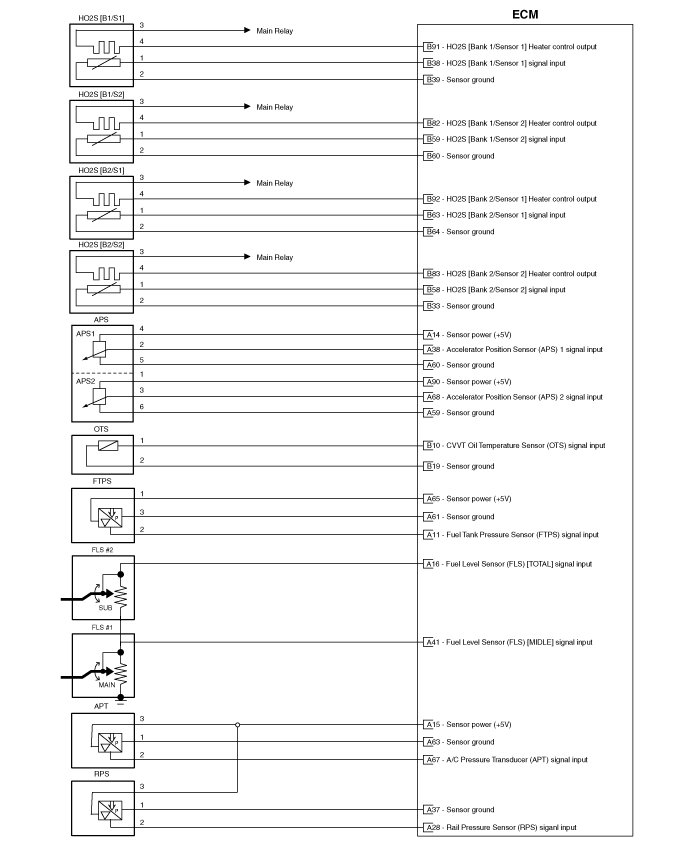

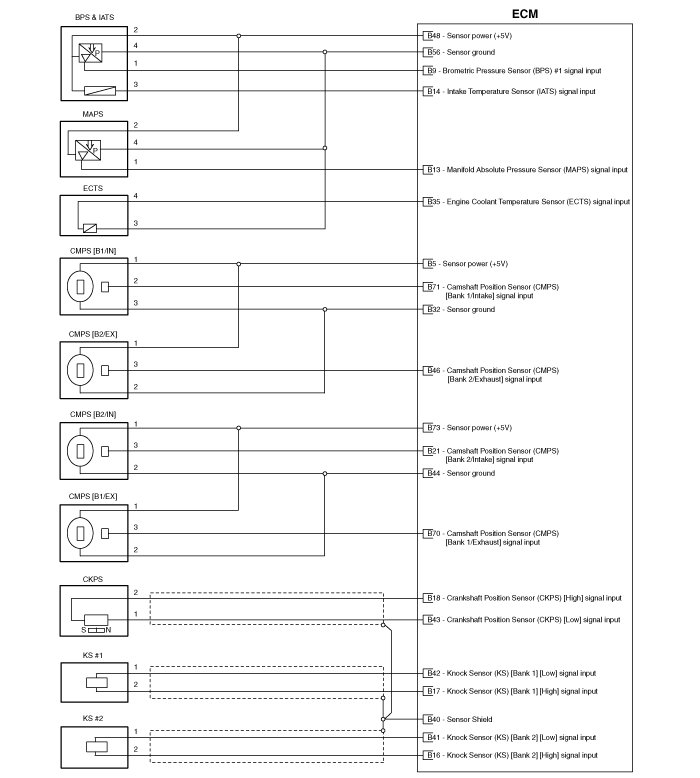

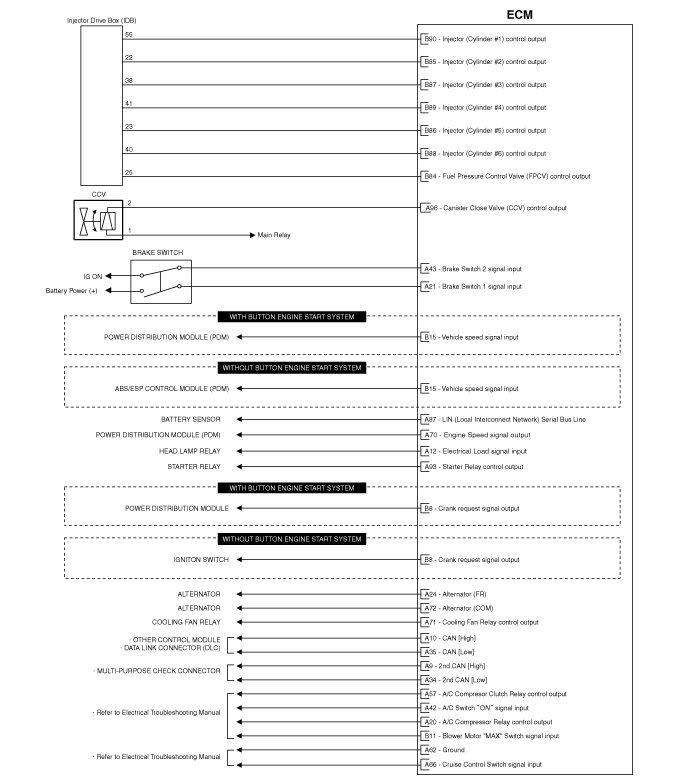

Circuit Diagram
