Electrical Diagrams





IDB terminal and Inoutput

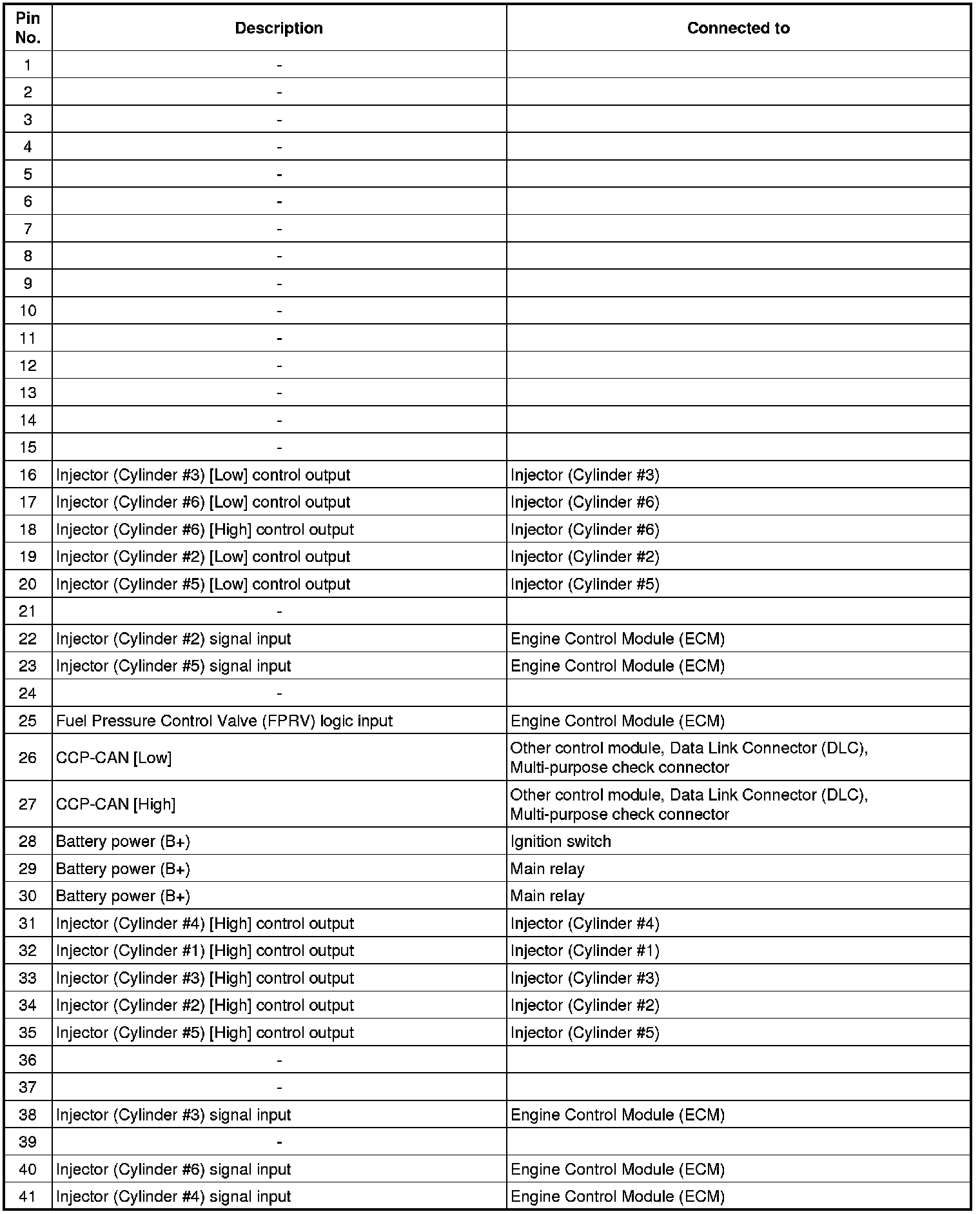

IDB terminal function

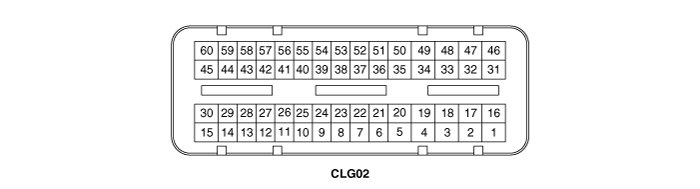

Connector [CLG02]

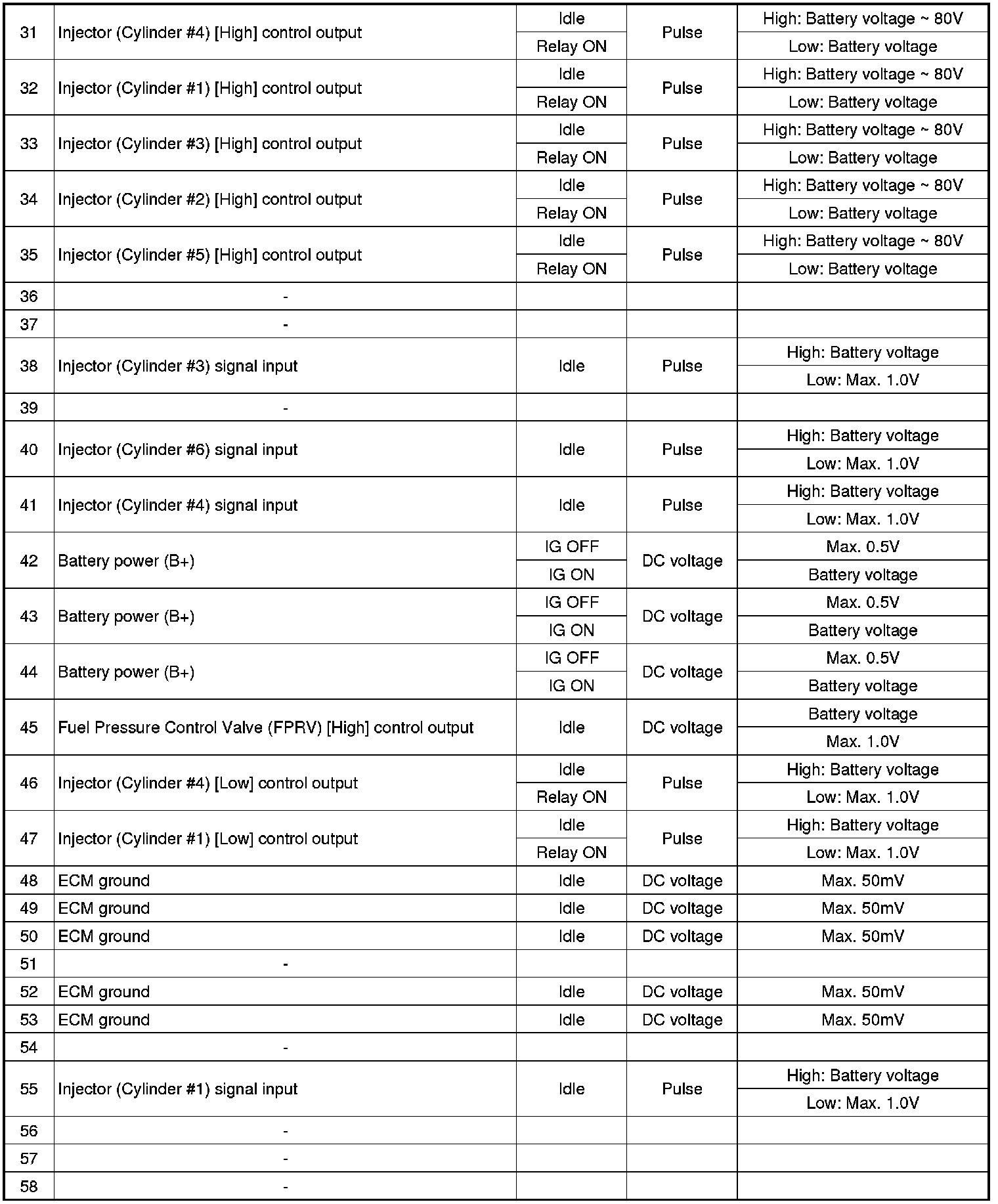

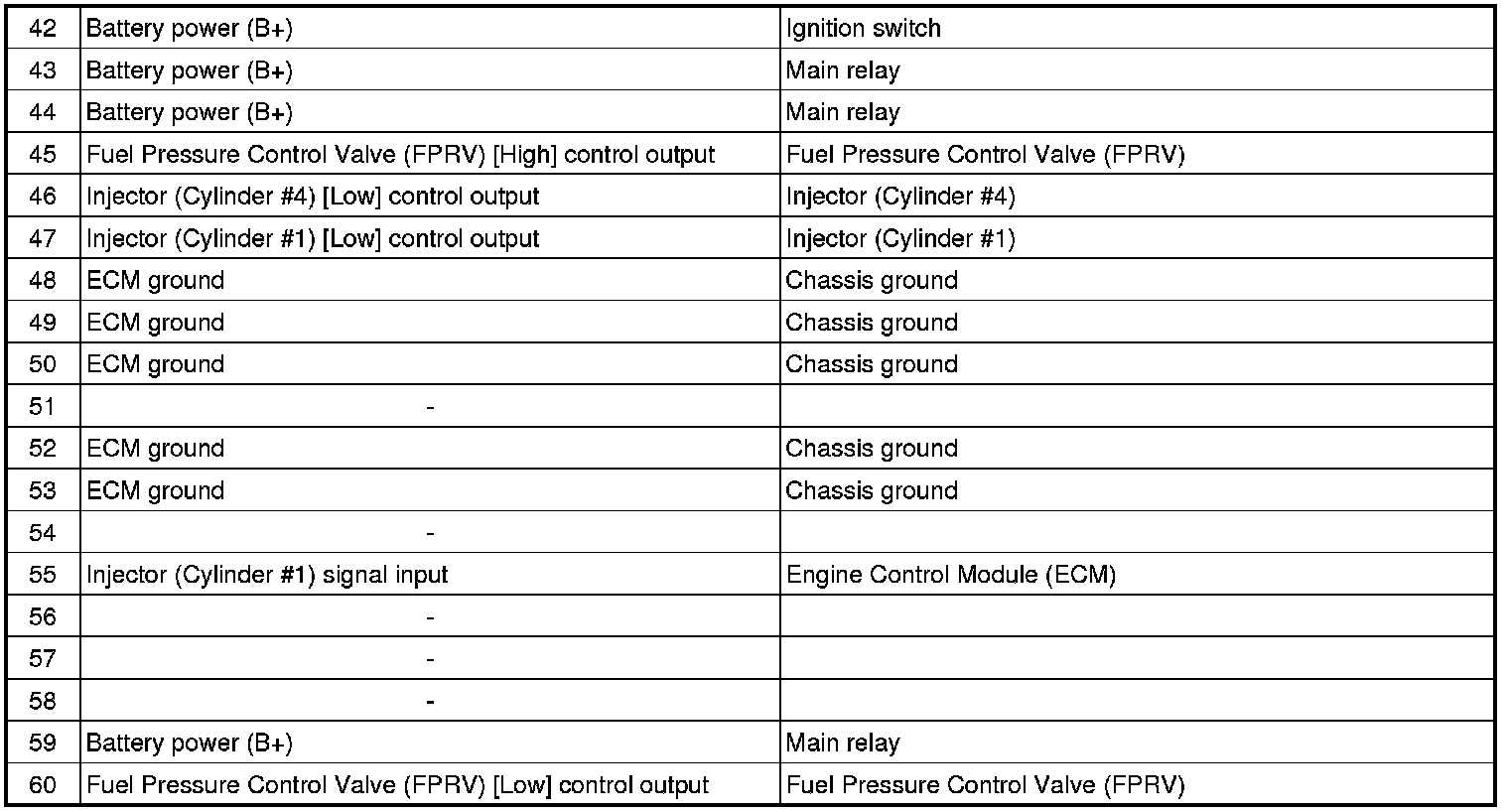

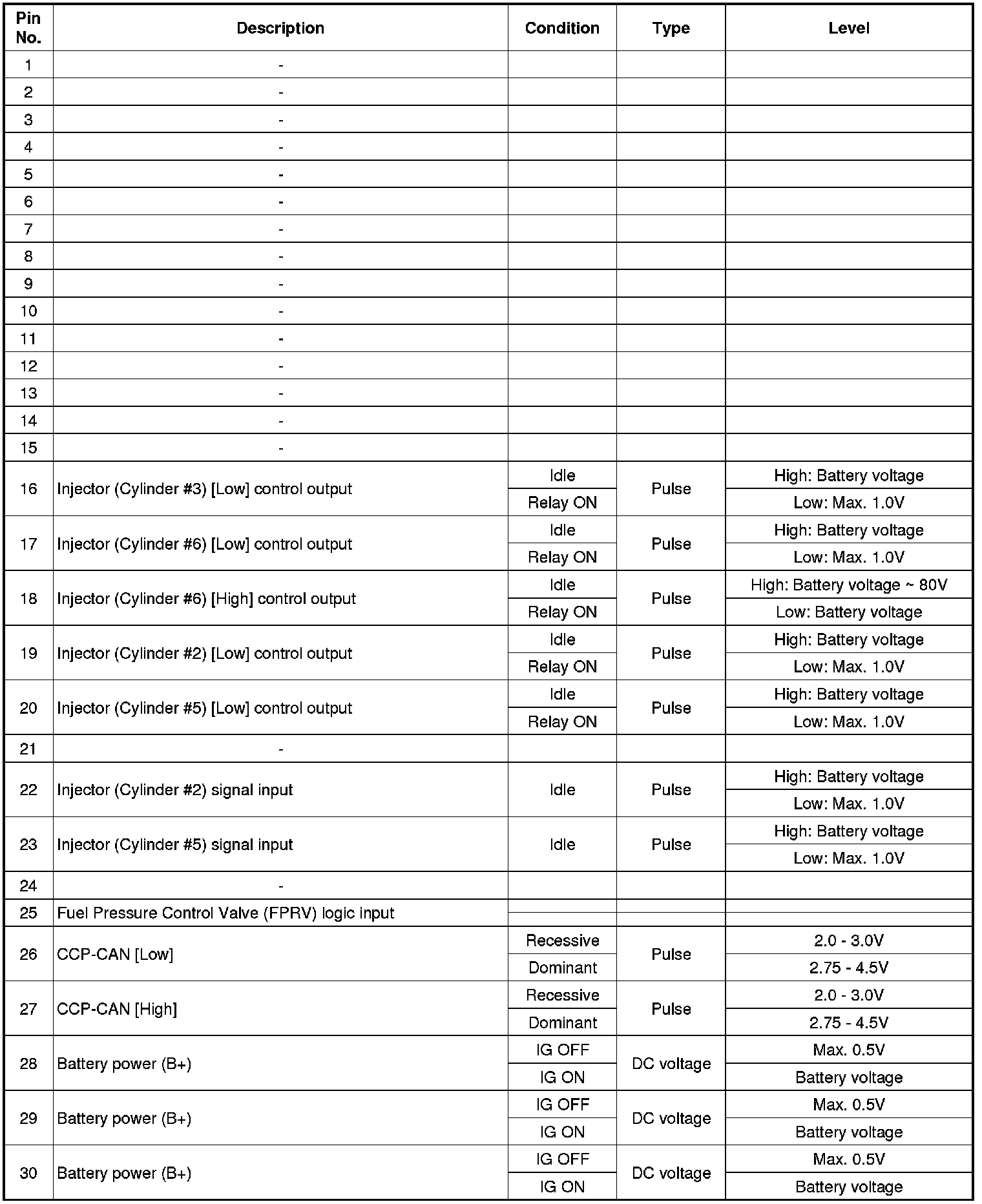

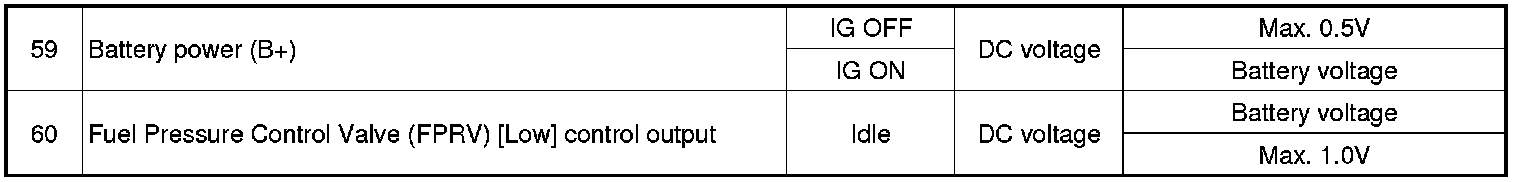

IDB Terminal input/output signal
Connector [CLG02]

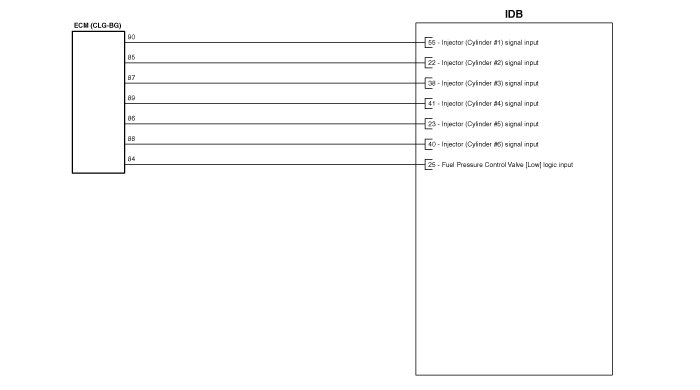

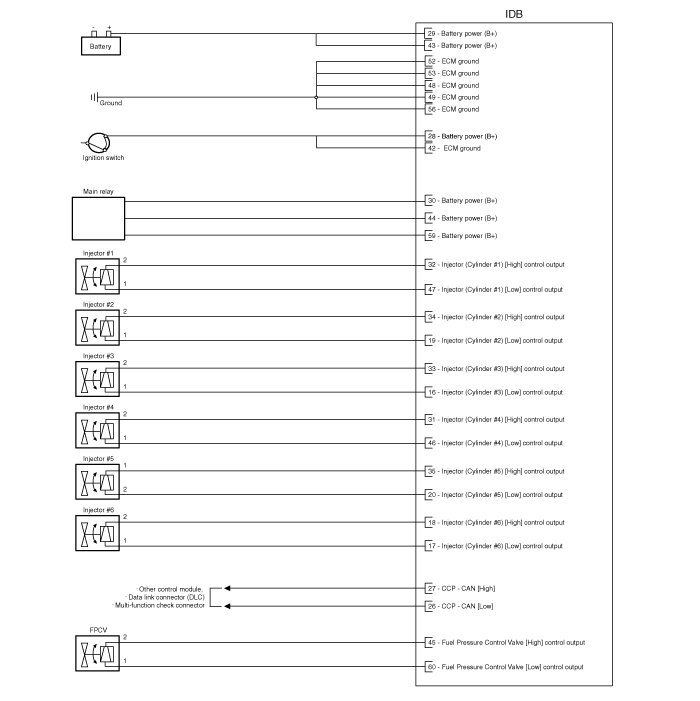

Circuit Diagram
