Fuse & Relay Information
Fuse & Relay Information

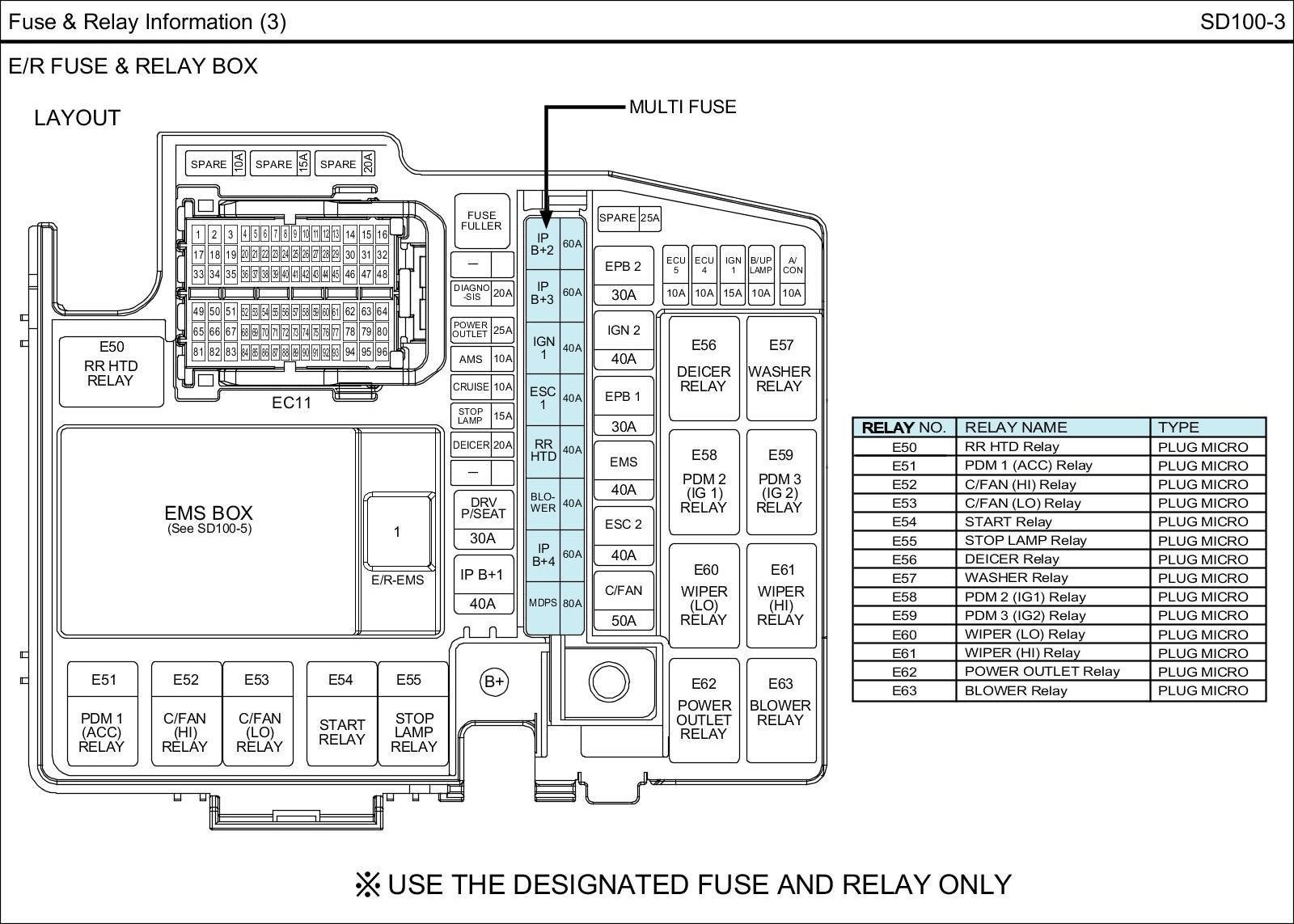

E/R Fuse & Relay Box View:

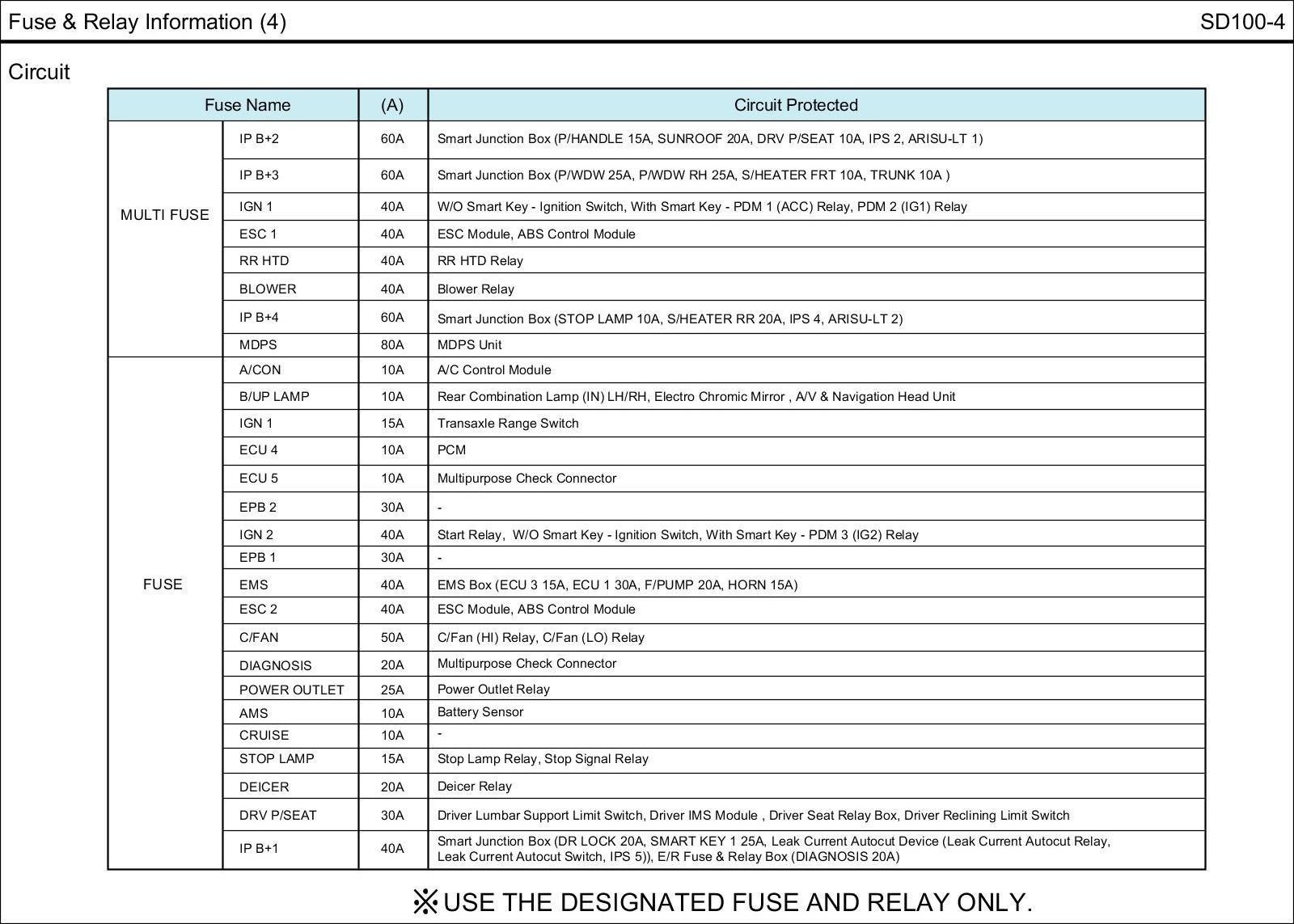

E/R Fuse & Relay Box Circuit Details:

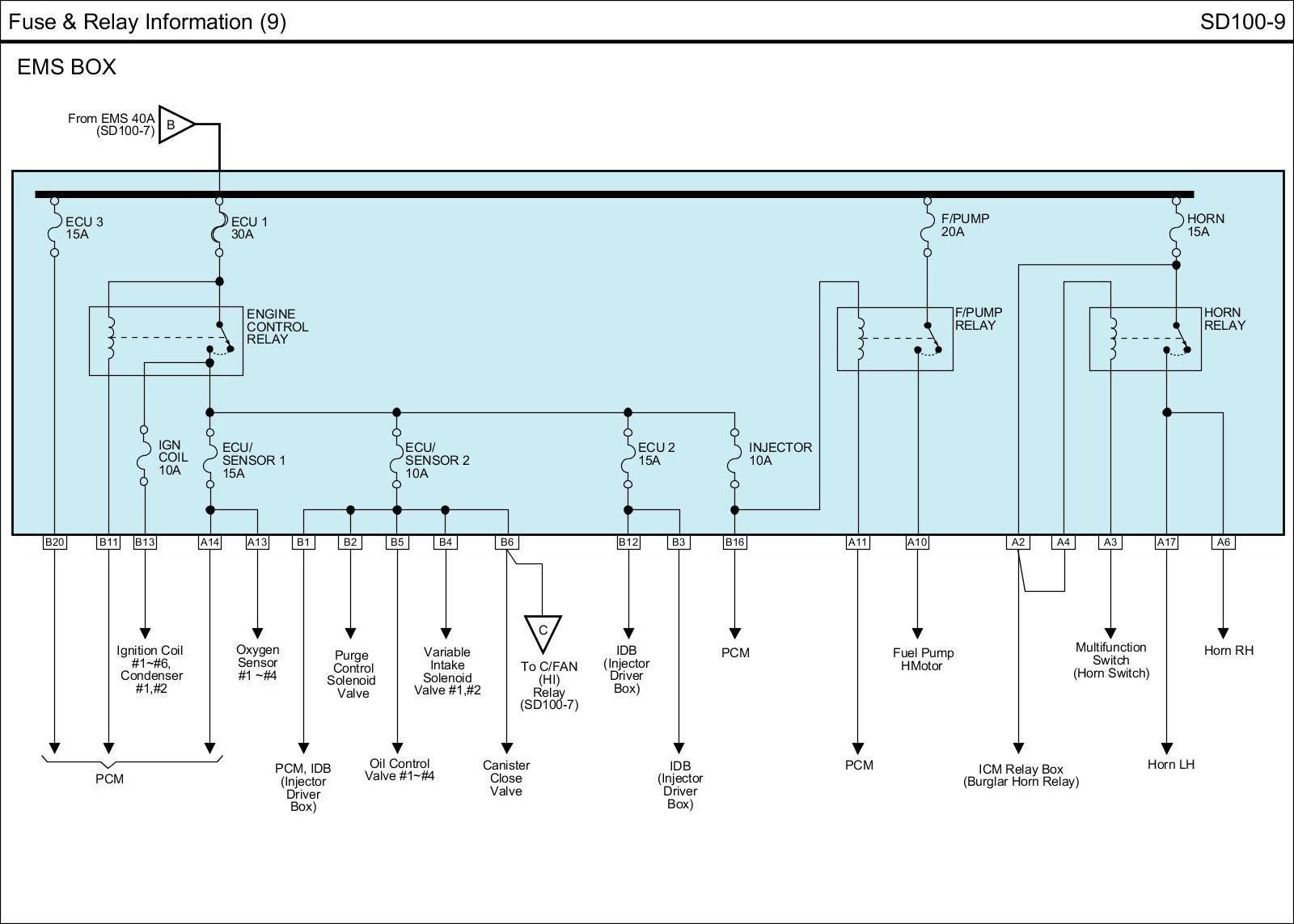

EMS Box:

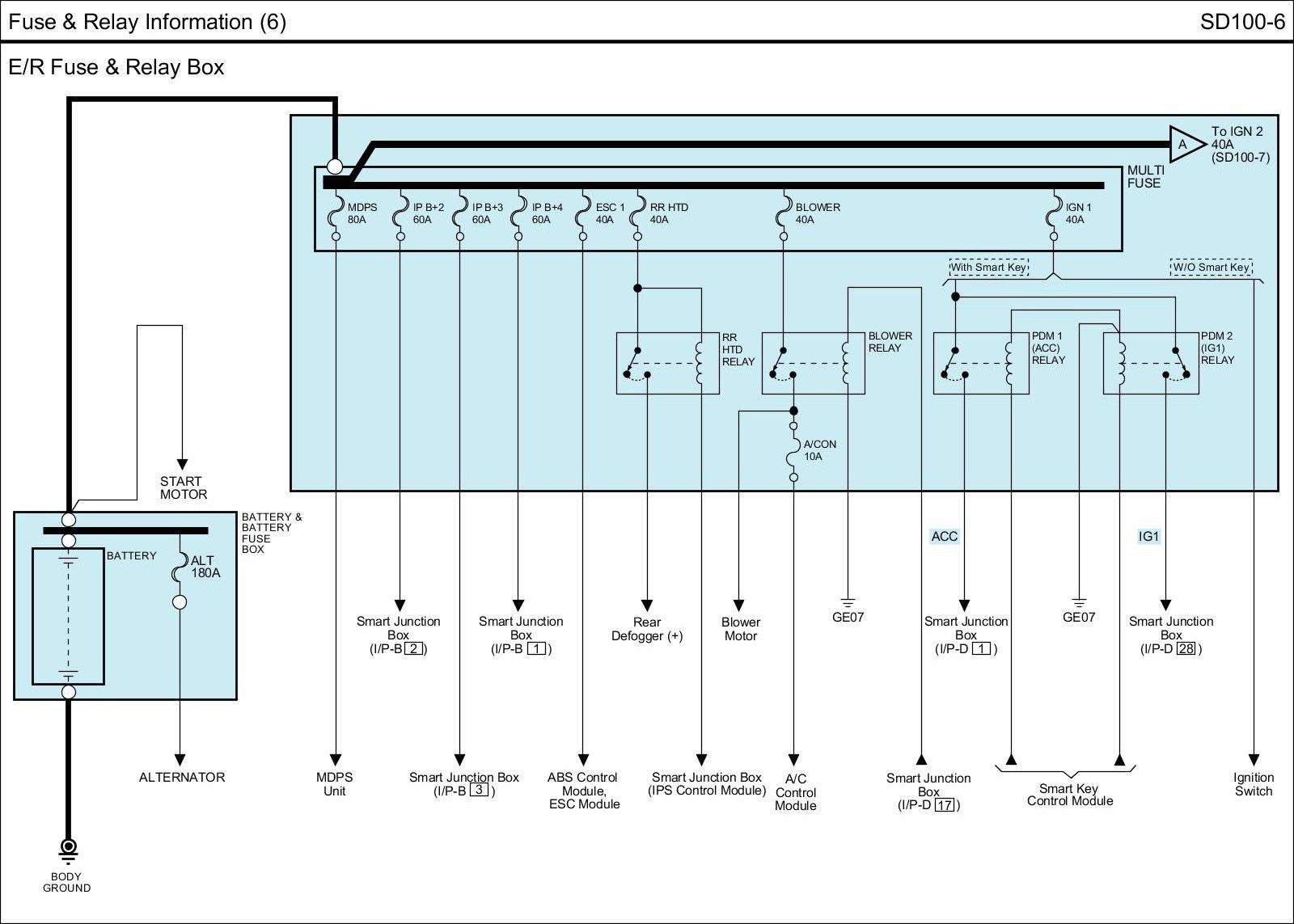

E/R Fuse & Relay Box View:

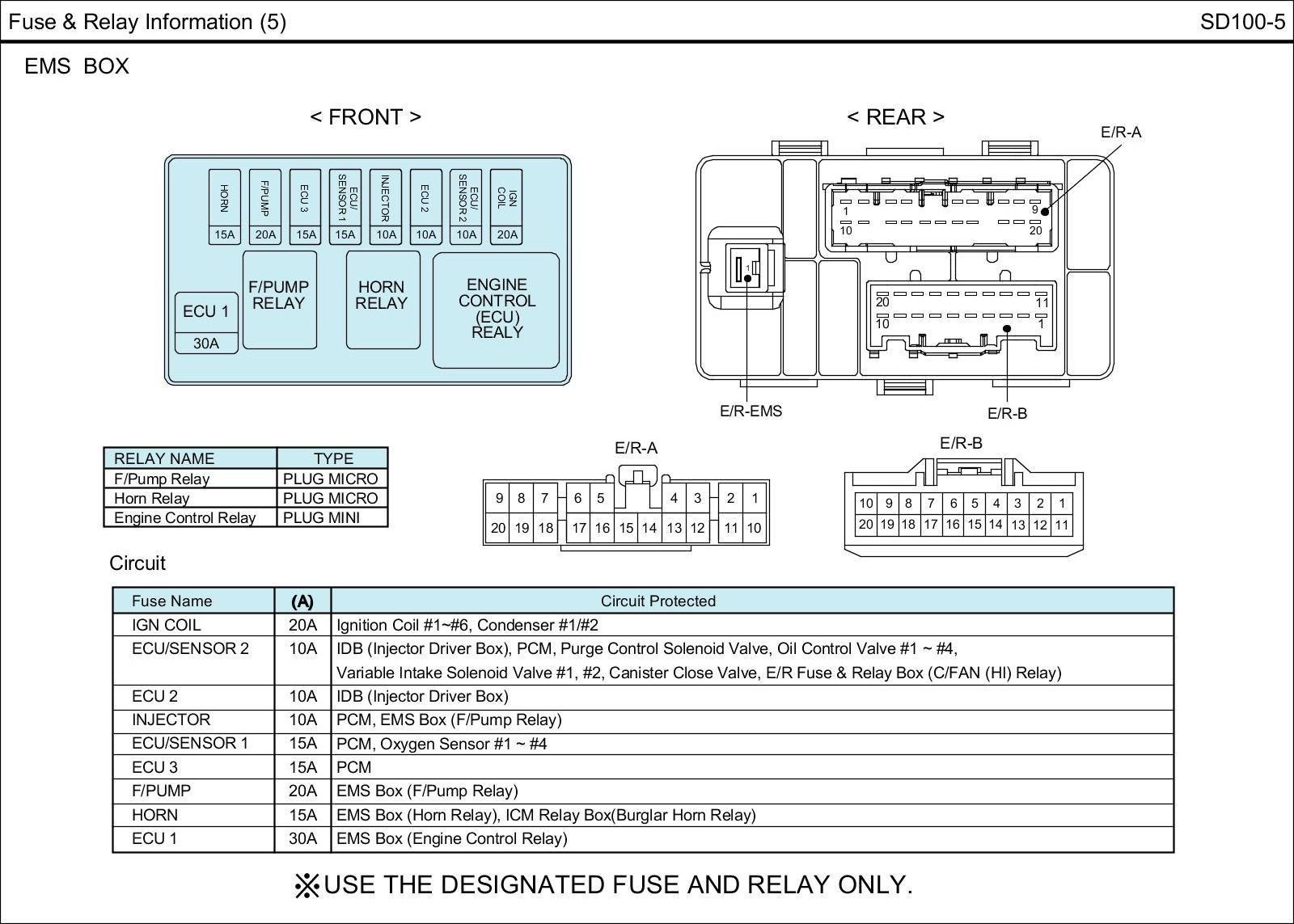

EMS Box View:
