Oxygen Sensor: Specifications





Specification

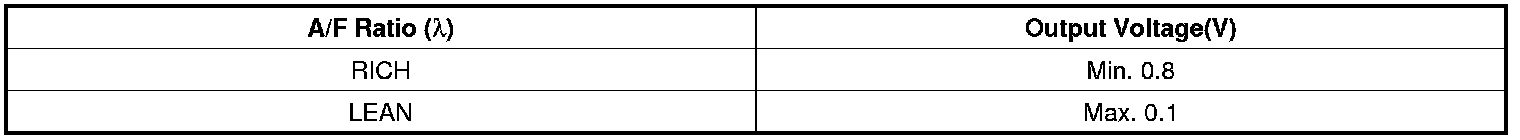

[Bank 1 / sensor 2, Bank 2 / sensor 2]

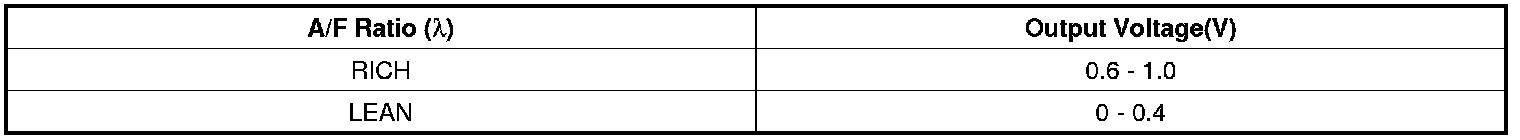

[Bank 1 / sensor 1, Bank 2 / sensor 1]
