Transmitter Code Registration (Using GDS)

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

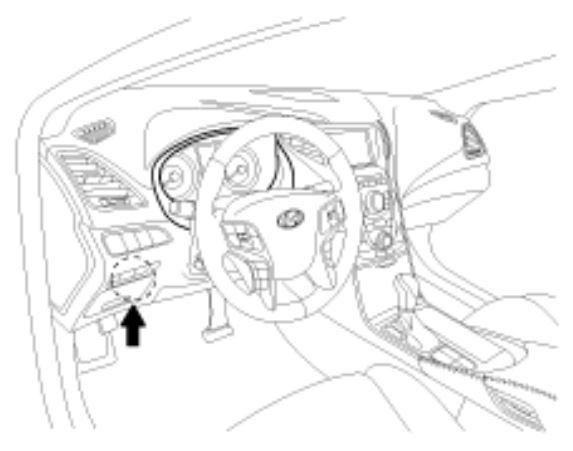

Fig 1: Locating Data Link Connector
Courtesy of HYUNDAI MOTOR AMERICA
Select the vehicle model and then do "CODE SAVING"

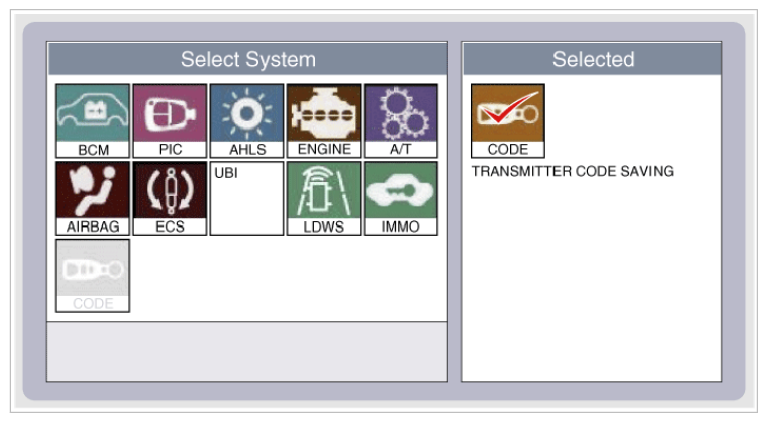

Fig 2: Display - Transmitter Code Saving Selection Screen
Courtesy of HYUNDAI MOTOR AMERICA
After selecting "CODE SAVING" menu, button "ENTER" key, then the screen will be shown as below.

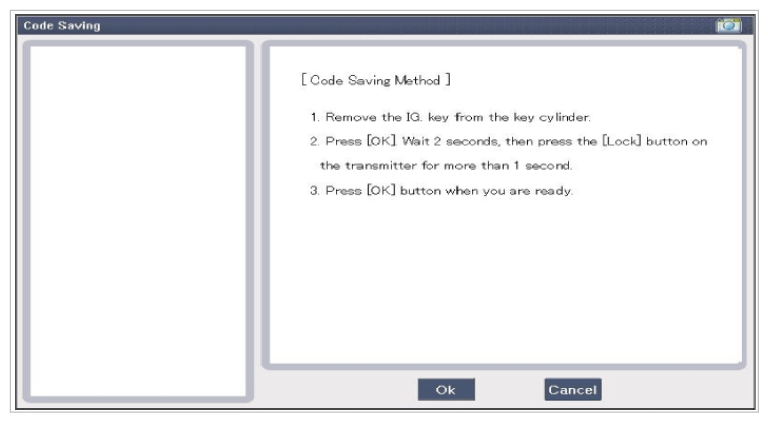

Fig 3: Display - Transmitter Code Saving Menu Screen
Courtesy of HYUNDAI MOTOR AMERICA
After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving. Follow steps 1 to 4 and then code saving is completed.

Fig 4: Display - Transmitter Code Saving Completion Screen
Courtesy of HYUNDAI MOTOR AMERICA

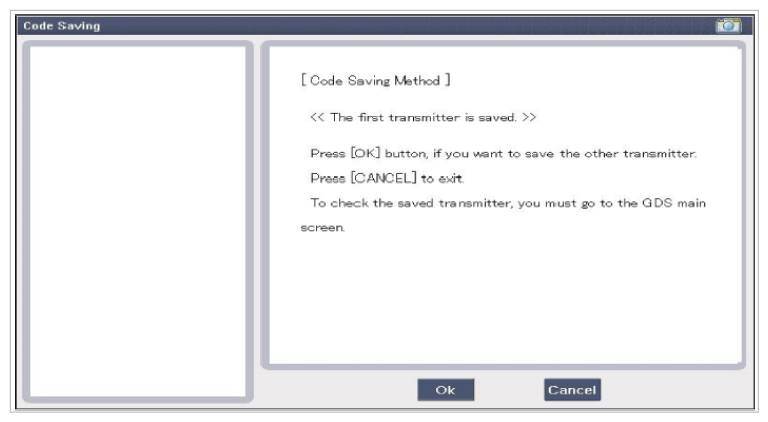

Fig 5: Display - First Transmitter Saved Screen
Courtesy of HYUNDAI MOTOR AMERICA

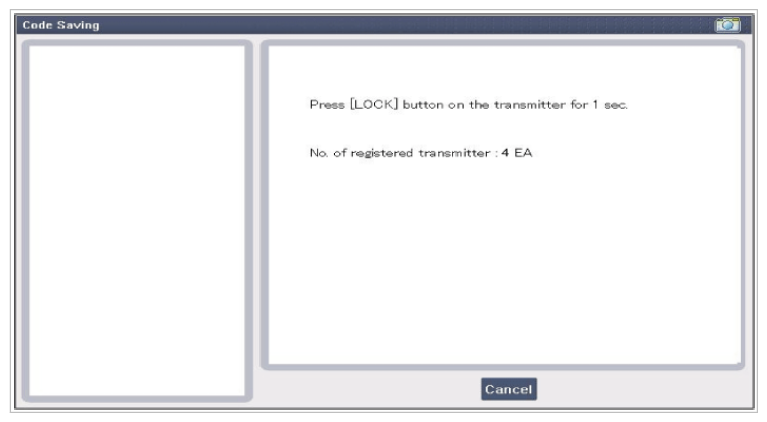

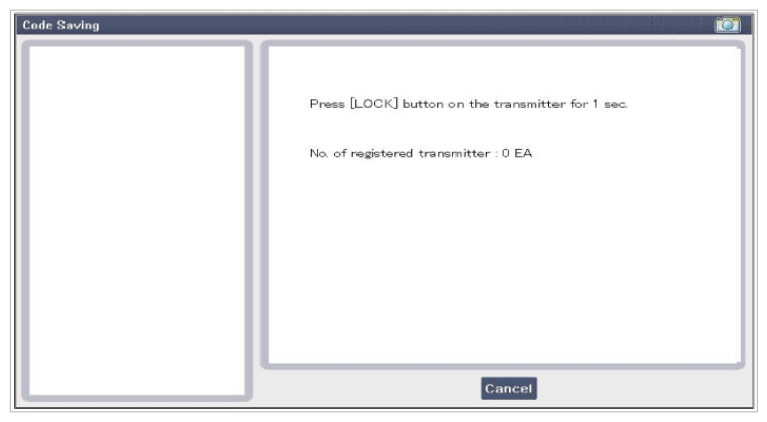

Fig 6: Display - No. Of Registered Transmitter Screen
Courtesy of HYUNDAI MOTOR AMERICA

Fig 7: Display - Second Transmitter Saved Screen
Courtesy of HYUNDAI MOTOR AMERICA

Fig 8: Display - No. Of Registered Transmitter Screen
Courtesy of HYUNDAI MOTOR AMERICA

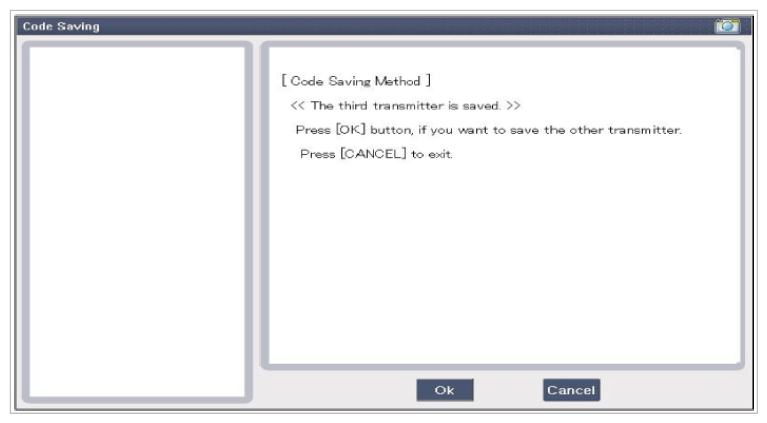

Fig 9: Display - Third Transmitter Saved Screen
Courtesy of HYUNDAI MOTOR AMERICA

Fig 10: Display - No. Of Registered Transmitter Screen
Courtesy of HYUNDAI MOTOR AMERICA

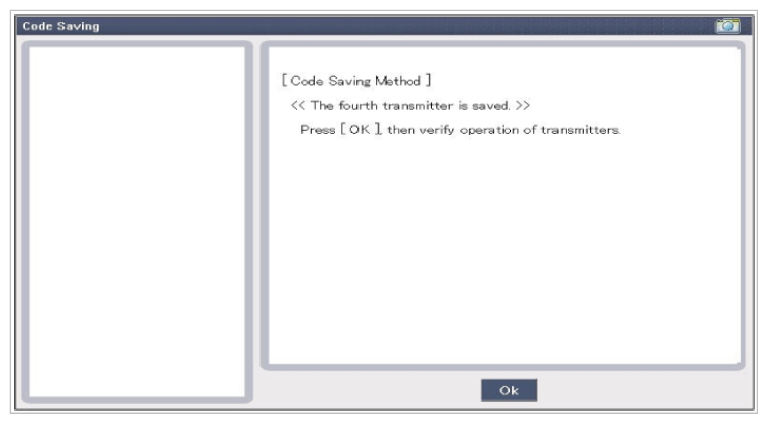

Fig 11: Display - Fourth Transmitter Saved Screen
Courtesy of HYUNDAI MOTOR AMERICA

Fig 12: Display - No. Of Registered Transmitter Screen
