Home >> Hyundai >> 2012 >> Azera >> Repair and Diagnosis (Single Page) >> Brakes >> Traction Control >> Electronic Stability Control (ESC) System >> ESC Control Module >> Components and Components Location >> Components
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Components and Components Location: Components

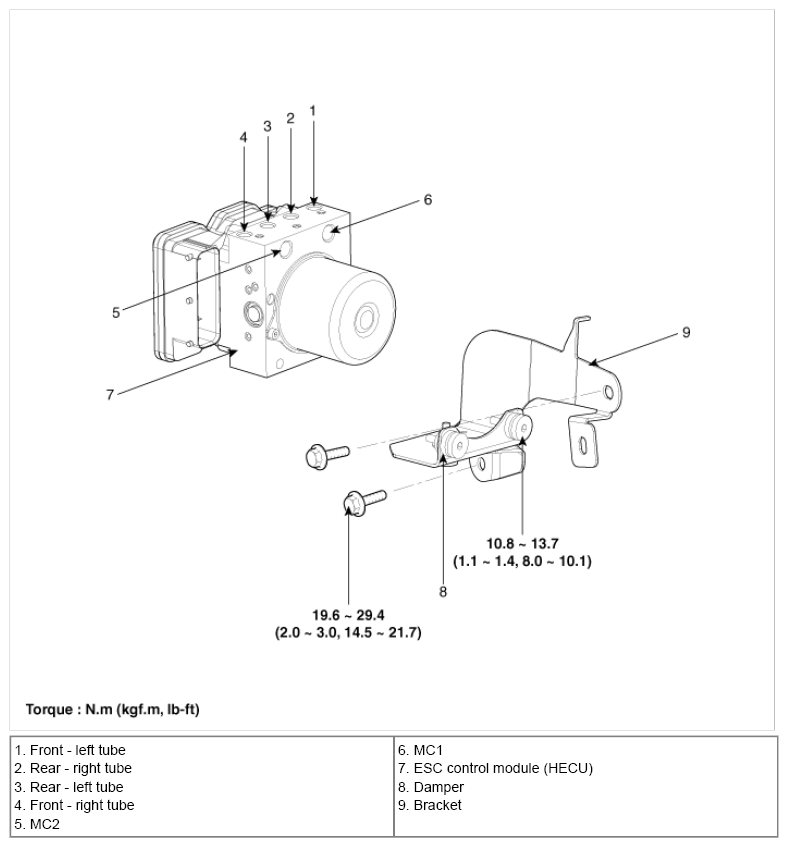

Fig 1: Electronic Stability Control Module Components Location With Torque Specifications
G08810462Courtesy of HYUNDAI MOTOR AMERICA
