Repair Procedures: Removal

Turn the ignition switch OFF.
Remove the air duct (B) and air cleaner assembly (A).

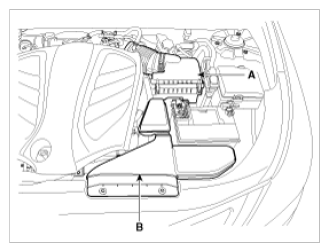

Fig 1: Identifying Air Duct And Air Cleaner Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Remove the connector and then arrange the wiring harness (A).

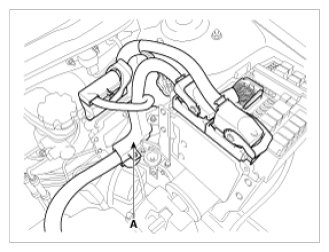

Fig 2: Identifying Wiring Harness
Courtesy of HYUNDAI MOTOR AMERICA
Remove the brake fluid from the master cylinder reservoir with a syringe.
CAUTION:
- Be sure to completely remove foreign substances from around brake fluid reservoir and cap before opening the reservoir cap. If not, it may cause contamination of brake fluid and deterioration in braking performance.
- Do not spill brake fluid on the vehicle, it may damage the paint; if brake fluid does contact the paint, wash it off immediately with water.
Loosen the flare nuts and then remove the brake tube (A).
Tightening torque:

18.6 ~ 22.6 N.m (1.9 ~ 2.3 kgf.m, 13.7 ~ 11.6 lb-ft)

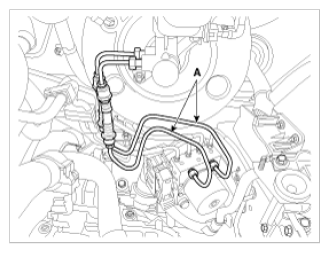

Fig 3: Identifying Brake Tube
Courtesy of HYUNDAI MOTOR AMERICA
Pull up the lock of the HECU connector (A) and then disconnect the connector.

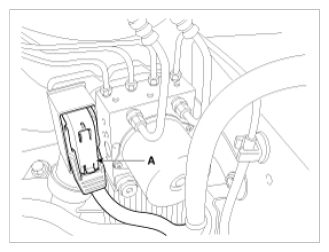

Fig 4: Identifying HECU Connector
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the brake tubes from the HECU by unlocking the nuts counterclockwise with a spanner.
Tightening torque:

11.7 ~ 15.7 N.m (1.2 ~ 1.6 kgf.m, 8.7 ~ 11.6 lb-ft)

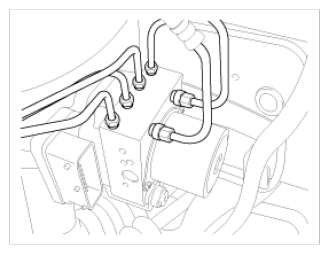

Fig 5: Identifying Brake Tubes
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the HECU bracket bolts (A) and then remove HECU and bracket.
Tightening torque:

19.6 ~ 29.4 N.m (2.0 ~ 3.0 kgf.m, 14.5 ~ 21.7 lb-ft)

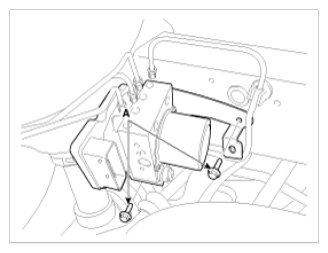

Fig 6: Identifying HECU And Bracket Bolts
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
1. Never attempt to disassemble the HECU.
2. Never shock the HECU.
Remove the bolts and then remove the bracket from HECU.
Tightening torque:

10.8 ~ 13.7 N.m (1.1 ~ 1.4 kgf.m, 8.0 ~ 10.1 lb-ft)
