Components and Components Location: Components

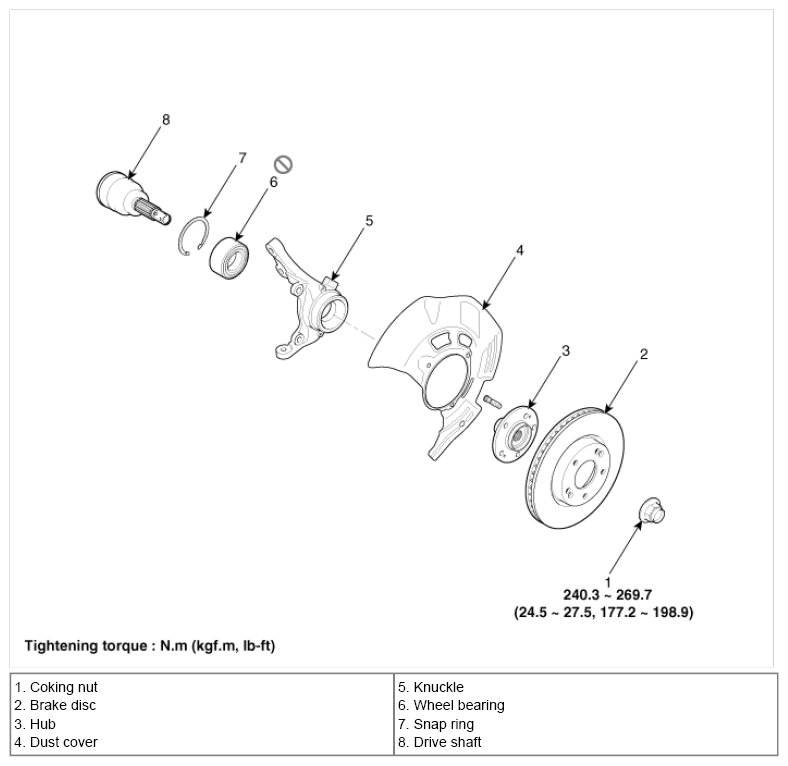

Fig 1: Front Axle Assembly With Torque Specifications
G08809998Courtesy of HYUNDAI MOTOR AMERICA
