Components and Components Location: Components

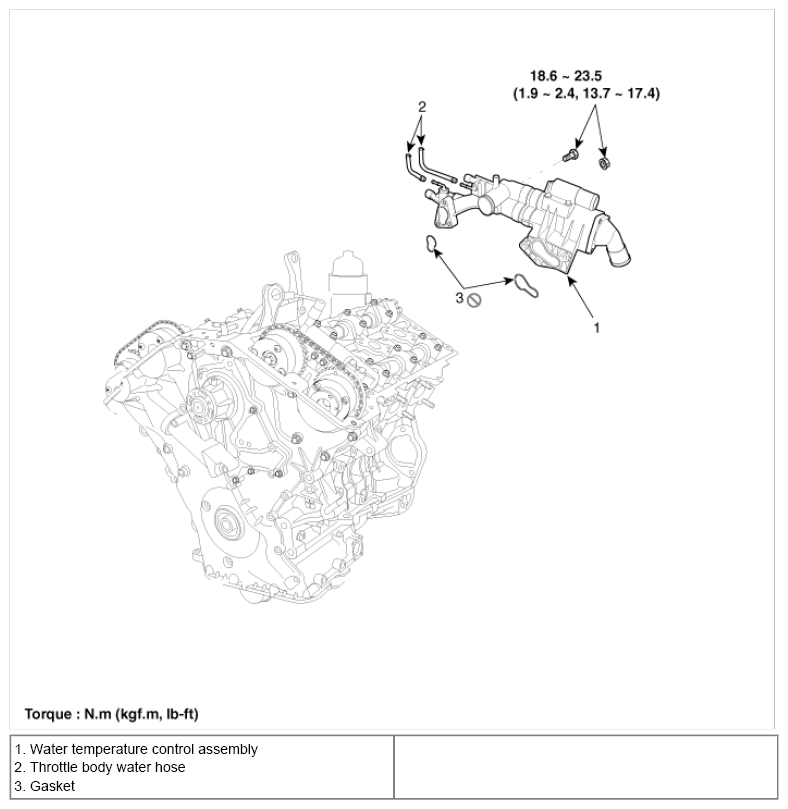

Fig 1: Water Temperature Control Assembly, Throttle Body Water Hose, Gasket With Torque Specifications
G08809353Courtesy of HYUNDAI MOTOR AMERICA
