Component (1)

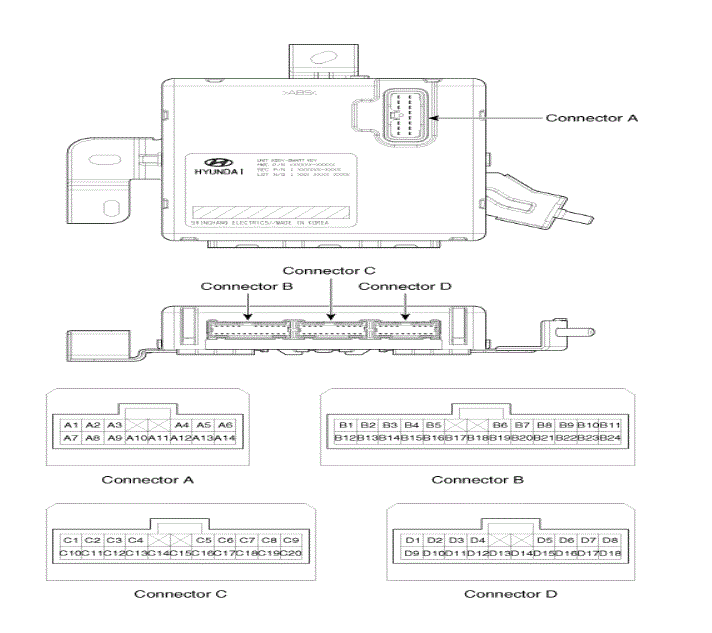

CONNECTOR PIN INFORMATION
| Pin | Connector A | Connector B | Connector C | Connector D |
|---|---|---|---|---|
| 1 | Power GND1 | ACC | RF data | Antenna power - LH |
| 2 | Power GND2 | IGN2 | C CAN low | Antenna power - RH |
| 3 | - | Stop lamp fuse | B CAN low | Antenna power - Bumper |
| 4 | Starter relay | Driver toggle button | Immobilizer | Antenna power - Trunk |
| 5 | Vbat CPU | Assist toggle button | Demodulator power | Antenna power - Interior1 |
| 6 | Vbat Load | RPM | ESCL enable | Antenna power - Interior2 |
| 7 | ESCL GND | Wheel speed | SSB ACC LED | - |
| 8 | SSB illumication GND | - | SSB IGN LED | - |
| 9 | - | - | - | Antenna GND - LH |
| 10 | ACC relay | R position | - | Antenna GND - RH |
| 11 | IGN2 relay | - | C CAN hi | Antenna GND - Bumper |
| 12 | IGN1 relay | IGN1 | B CAN hi | Antenna GND - Trunk |
| 13 | SSB illumination Power | Start feedback | Immobilizer TXCT | - |
| 14 | ESCL battery | Stop lamp switch | EMS COM | - |
| 15 | - | ESCL COM | Antenna GND - Interior1 | |
| 16 | - | - | Antenna GND - Interior2 | |
| 17 | SSB1 | - | - | |
| 18 | SSB2 | RF enable | - | |
| 19 | - | Demodulator GND | ||
| 20 | - | SSB OFF LED | ||
| 21 | - | |||
| 22 | - | |||
| 23 | - | |||
| 24 | ESCL unlock |
